Product line 01 / 12 · 19″ Rack Cabinets
Press-steel and profile 19″ cabinets for electronics, telecom, power and test systems — including the ER-series 19″ profile cabinet line to IEC 60297-3-100 — configured to order with subracks, power distribution, drawers and plug-in units.
Recent 38U builds in two footprint families — W600×D800 mm and W800×D900 mm — in RAL 7021 black-grey, RAL 7035 / RAL 7032 light grey, two-tone and custom colour schemes. Fitted in our own workshop with subracks, power distribution and plug-in units.
Narrow-footprint 38U cabinets — the standard choice when floor space is limited. Also hosts our E1 press-steel line in the same footprint.







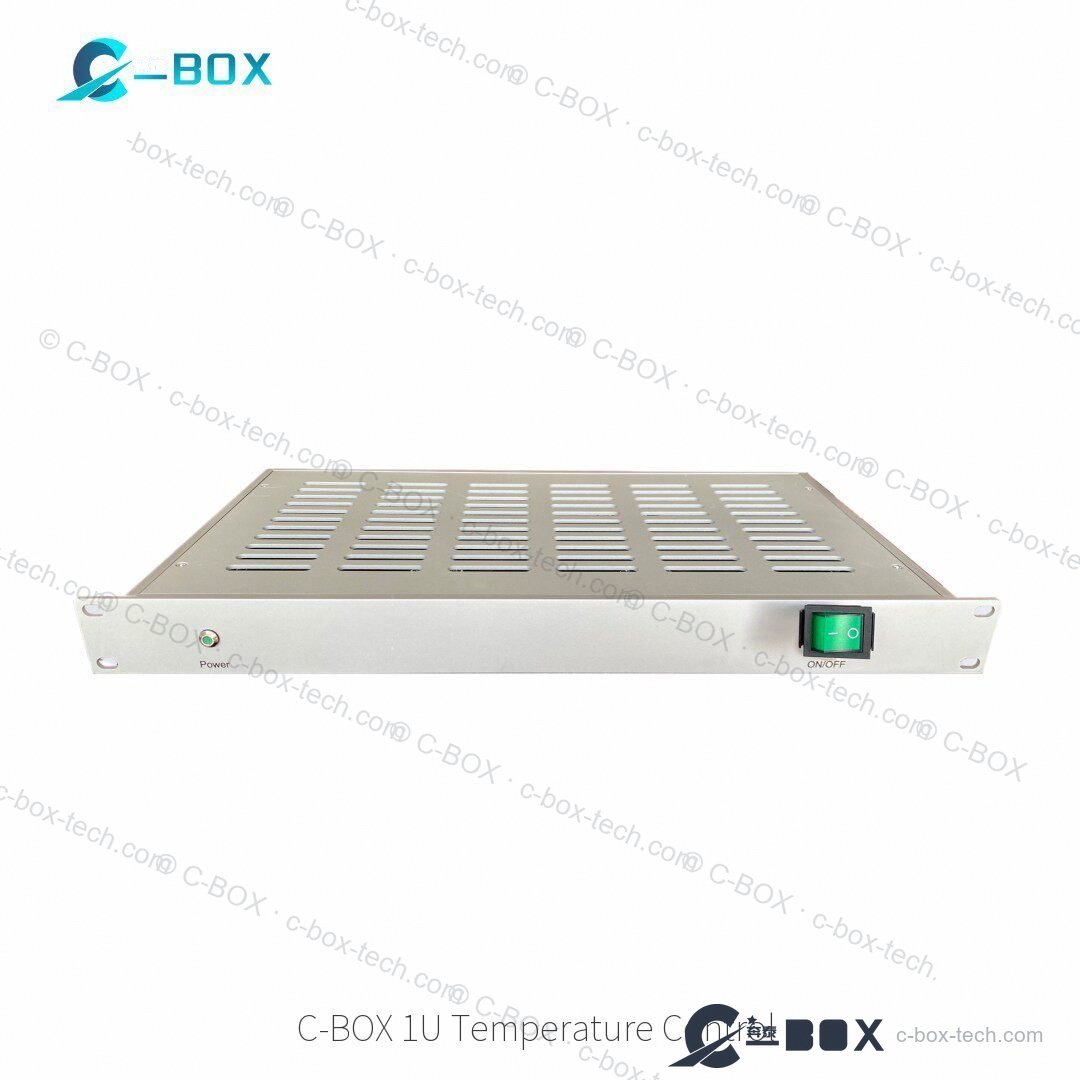

Wide-body 38U cabinets for higher payload and deeper equipment — typically configured around subracks, 3U power distribution and climate control.






A 40-second tour from our own production floor: we open the doors, show the 19″ mounting rails inside, and walk past the current build queue. (English subtitles)
19″ rack cabinets fitted and finished at the C-BOX factory
Two frame families share one dimensional system per IEC 60297-3-100: a welded sheet-steel 19″ frame (front/rear door options, 34U–47U) and a general-purpose assembled frame (20U–47U, fully configurable). Both carry IP40 to IEC 60529, 400 kg static load, protective earth to DIN EN 50178 / VDE 0160, and RAL 7021 or RAL 7021/RAL 7035 two-tone finishes. Every cabinet is order-coded to your configuration — send us U × W × D plus door and panel options and we quote the complete BOM.
| Frame height U | Height incl. plinth H (mm) | Height excl. plinth h (mm) | Usable 19″ mounting height (mm) |
|---|---|---|---|
| 20U | 998 | 989 | 890.5 |
| 25U | 1220 | 1211 | 1112.5 |
| 29U | 1398 | 1389 | 1290.5 |
| 34U | 1620 | 1611 | 1512.5 |
| 38U | 1798 | 1789 | 1690.5 |
| 43U | 2020 | 2011 | 1912.5 |
| 47U | 2196 | 2189 | 2090.5 |
| Cabinet width W (mm) | Column spacing w (mm) | Base spacing w2 (mm) |
|---|---|---|
| 600 | 528 | 502 |
| 800 | 728 | 702 |
| Depth D (mm) | Column spacing d (mm) | Screw-fixing hole spacing d1 (mm) | Base spacing d2 (mm) |
|---|---|---|---|
| 600 | 426 | 440 | 444 |
| 800 | 626 | 640 | 644 |
| 900 | 726 | 740 | 744 |
Heights 20–47U · W600 / 800 · D600 / 800 / 900 · column system supports custom integration (EMC-shielded versions on request).
| Cabinet width W (mm) | Column spacing w (mm) | Screw-fixing hole spacing w1 (mm) | Base spacing w2 (mm) |
|---|---|---|---|
| 600 | 451 | 465 | 502 |
| Depth D (mm) | Dimension c (mm) | Column spacing d (mm) | Screw-fixing hole spacing d1 (mm) | Base spacing d2 (mm) |
|---|---|---|---|---|
| 600 | 480 | 392 | 396 | 444 |
| 800 | 680 | 592 | 596 | 644 |
| 900 | 780 | 682 | 696 | 744 |
With front/rear doors: 38U / 43U, D600 / 800 · without doors: 34U / 38U / 43U / 47U, D600 / 800 · 60 mm columns, 19″ mounting holes integral to the columns, side-mountable doors.

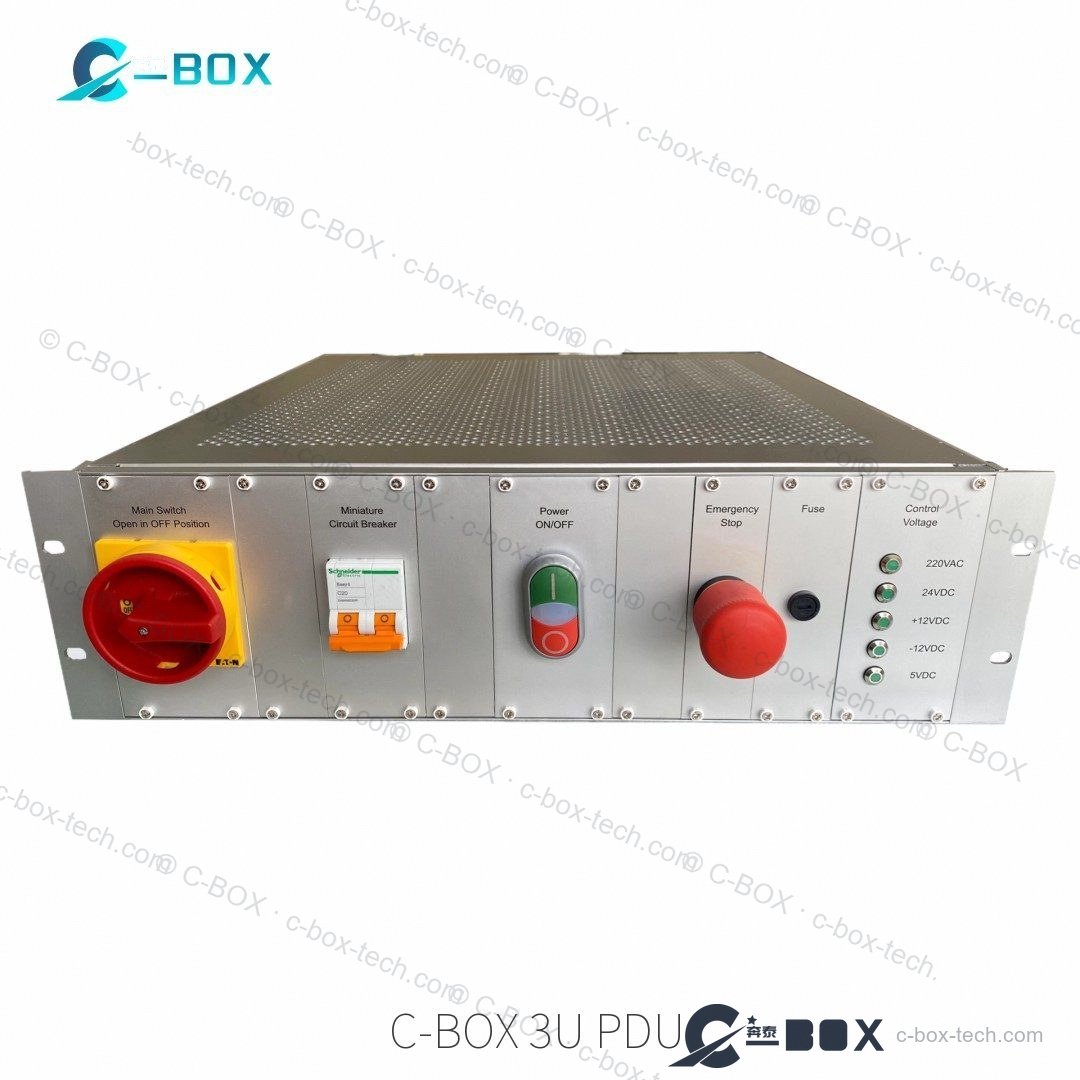

C-BOX builds complete 19″ cabinet systems around the electronics that go inside them. The range covers E1 press-steel cabinets with a separated or integrated structure, ER-series 19″ profile cabinets and K-type desktop cabinets. Every cabinet is configured to order: subracks, 3U power distribution suites, aluminium or galvanised steel drawers, CompactPCI / PXIe / VPX plug-in units and keyboard-mouse kits are fitted in our own workshop before delivery.
| Height range | 6U – 47U (custom heights available) |
| Width / depth | 600 / 800 mm × 600 – 1000 mm |
| Static load | up to 400 kg |
| Construction | 1.5 – 2.0 mm cold-rolled steel, 9-fold folding |
| Protection class | IP20 (standard E1) · IP40 (ER profile) · IP55 (sealed version) |
| Finish | RAL powder coating, colours to order |
| Standards | IEC 60297 / DIN 41494 dimensional system · ER profile to IEC 60297-3-100, protective earth to DIN EN 50178 / VDE 0160 |
Same interface dimensions as the nVent SCHROFF equivalents — our own tooling, material and finish.
Every model has its own page with specifications and RFQ. Use your browser search (Ctrl/Cmd+F) on this page, or send us the number and we will quote it.
Our ER profile line pairs a classic, heavy-duty look with practical engineering: a screw-assembled frame of die-cast aluminium profiles with recessed cover panels, 19″ mounting holes integral to the columns, and a static load capacity of 400 kg. Two colour schemes are available — black-grey RAL 7021 throughout (the mainstream choice for server rooms and data centres), or a two-tone combination with a black-grey frame and light-grey RAL 7035 covers that keeps aluminium parts clearly visible under workshop lighting.
Front and rear swing doors are offered either as transparent polycarbonate panels (6 mm, 120° opening) or as 1 mm steel doors. Side panels can be side-mounted, and the cabinet accepts a plinth or open base configurations. Beyond the catalogue: custom colours and sizes, alternative column types and fully integrated special cabinets (including EMC-shielded versions) are built to order.
| Dimensional system | IEC 60297-3-100 (external & internal) |
| Frame heights | 20U / 25U / 29U / 34U / 38U / 43U / 47U (999–2109 mm) |
| Widths | 600 mm (W), column spacing 451 / 528 mm variants |
| Depths | 600 / 800 / 900 mm |
| Static load | up to 400 kg |
| Protection | IP40 to IEC 60529 |
| Doors | transparent polycarbonate 6 mm (120°) or steel 1 mm, front + rear |
| Finish | RAL 7021, or two-tone RAL 7021 / RAL 7035 |
| Earthing | protective GND to DIN EN 50178 / VDE 0160 |
Buyer guide
Three answers decide most cabinet specifications — how tall, how deep, and what the room environment demands. Work through them in that order and the rest of the datasheet falls into place.
Start with the equipment list, not the cabinet. Add up the rack units you must mount today, then add 30–40% for growth: that is your usable height. Next work out the deepest chassis — a 19 inch rack cabinet comes in nominal depths of 600, 800, 900 and 1000 mm, and you need roughly 120–150 mm of clear space front and rear of the deepest unit for cable bend radius and airflow. Finally decide the environment, which sets the IP rating and therefore the cooling strategy.
One rack unit is 44.45 mm (1.75″). Usable panel height is simply U × 44.45 mm; the overall cabinet frame is taller because it adds a plinth, a roof panel and often castors. Use the table below as a first estimate, then confirm against the cabinet drawing.
| Usable height | Panel height | Typical role |
|---|---|---|
| 6U | 267 mm | Wall-mount / bench instrument rack |
| 9U | 400 mm | Small network or lab cabinet |
| 12U | 533 mm | SMB server/switch cabinet |
| 18U | 800 mm | Half-height rack with UPS |
| 24U | 1067 mm | Mid-size server room |
| 38U | 1689 mm | Full-height telecom / data cabinet |
| 42U | 1867 mm | Standard data-centre configuration |
| 47U | 2089 mm | Maximum-density frame, tall rooms |
Rule of thumb: one 1U server with cable management consumes about 2U of usable space; allow one 1U PDU per 10–12U of equipment.
IP is a property of the assembled enclosure — frame, doors, gaskets and cable entries together. Sealing and cooling pull in opposite directions, so match the rating to the room instead of over-specifying.
A sealed cabinet converts the electronics into a closed thermal system: the cooling rating must remove the whole internal heat load, and the internal temperature will run above ambient. Specify IP55 only where washdown, outdoor siting or heavy airborne dust genuinely apply.
Height and width are the numbers buyers quote first. Depth is the one that decides whether the finished rack is serviceable — it sets how much room is left behind the rails for cabling, rear I/O and the return air path.
A 19″ cabinet is described by three numbers: usable height in U (1 U = 44.45 mm), external width, and external depth. The width is effectively fixed by the rack standard at 600 mm for a standard frame or 800 mm for side cable management, because the 482.6 mm mounting aperture and the 465.1 mm clear opening between mounting angles do not change. Depth is where the application decides, and it is usually under-specified.
| External depth | Usable rail-to-rear space | Typical fit |
|---|---|---|
| 600 mm | about 430 mm behind the front rails | shallow network or patch racks, wall-adjacent installs |
| 800 mm | about 630 mm | single row of servers, rear cabling in the same bay |
| 1000 mm | about 800 mm | rear transition modules, deep switches, 19″ chassis with rear I/O |
| 1200 mm | about 1000 mm | two-column cabling, PDU plus vertical manager, liquid-cooling manifolds |
Front-to-rear airflow equipment needs an unobstructed return path. Every bundle of cable tied across the rear of a 800 mm cabinet removes cross-section, and a cabinet that looks fine on paper can run 5-8 K hotter than the same load in a 1000 mm frame. If the bill of materials includes more than about 20 rear connectors per U, or rear transition modules, go one depth size up before adding fan capacity: depth is cheaper than cooling.
Send the equipment list with U heights and depths and we will come back with a frame size, door set and accessory list rather than a single part number to interpret.
Where this product line is typically used.
Parts that usually go together with 19″ Rack Cabinets.
Related categories
IP20 is standard on the E1 frame for clean indoor rooms. The ER profile version gives IP40 to IEC 60529 where dust and accidental contact matter. IP55 sealed versions are for washdown, humid or outdoor-adjacent environments. Tell us the room and we confirm the level instead of overspecifying.
Static load up to 400 kg, with reinforced frame options above that. Heights run 6U-47U (custom heights available), widths 600 / 800 mm, depths 600-1000 mm.
Yes. Subracks, 3U power distribution suites, aluminium or galvanised steel drawers, CompactPCI / PXIe / VPX plug-in units and keyboard-mouse kits are fitted in our own workshop before delivery, so the rack arrives ready to populate.
42U is 1867 mm of panel height and 47U is 2089 mm: 222 mm, or five rack units, more. That difference decides whether the top units are serviceable without a step and whether a full-height door still swings in the room. Check the room, not only the equipment list — a 47U frame wants roughly 2.1 m of clear height plus handling space on the route into the room.
State the total weight you will actually put in, including UPS batteries, PDUs and cable, and say whether the frame stands on feet or castors. Castors are rated separately from the frame — the 20117-024 castor set takes 400 kg — and a frame on castors has to be derated for point loading. We size frame and base to at least 1.5 times your stated total, so an optimistic figure becomes an under-specified cabinet.
A perforated door relies on forced convection: fan units or fan trays move room air through the cabinet. A solid or sealed door turns the cabinet into a closed thermal system, so the cooling must remove the whole internal load through a heat exchanger or an air conditioner, and the internal temperature will sit above ambient. Door type is a cooling decision, not a finish decision — settle it before the IP rating.
Made in our own plants — chassis and precision parts from Kunshan, cabinets and surface finishing from Hefei: CNC punching, press braking, CNC machining, assembly, inspection and export packing in-house.
Kunshan plant →Hefei plant →Cross-referencing against major international 19″ system part numbers is our daily routine — we quote within 24 hours for standard items.
