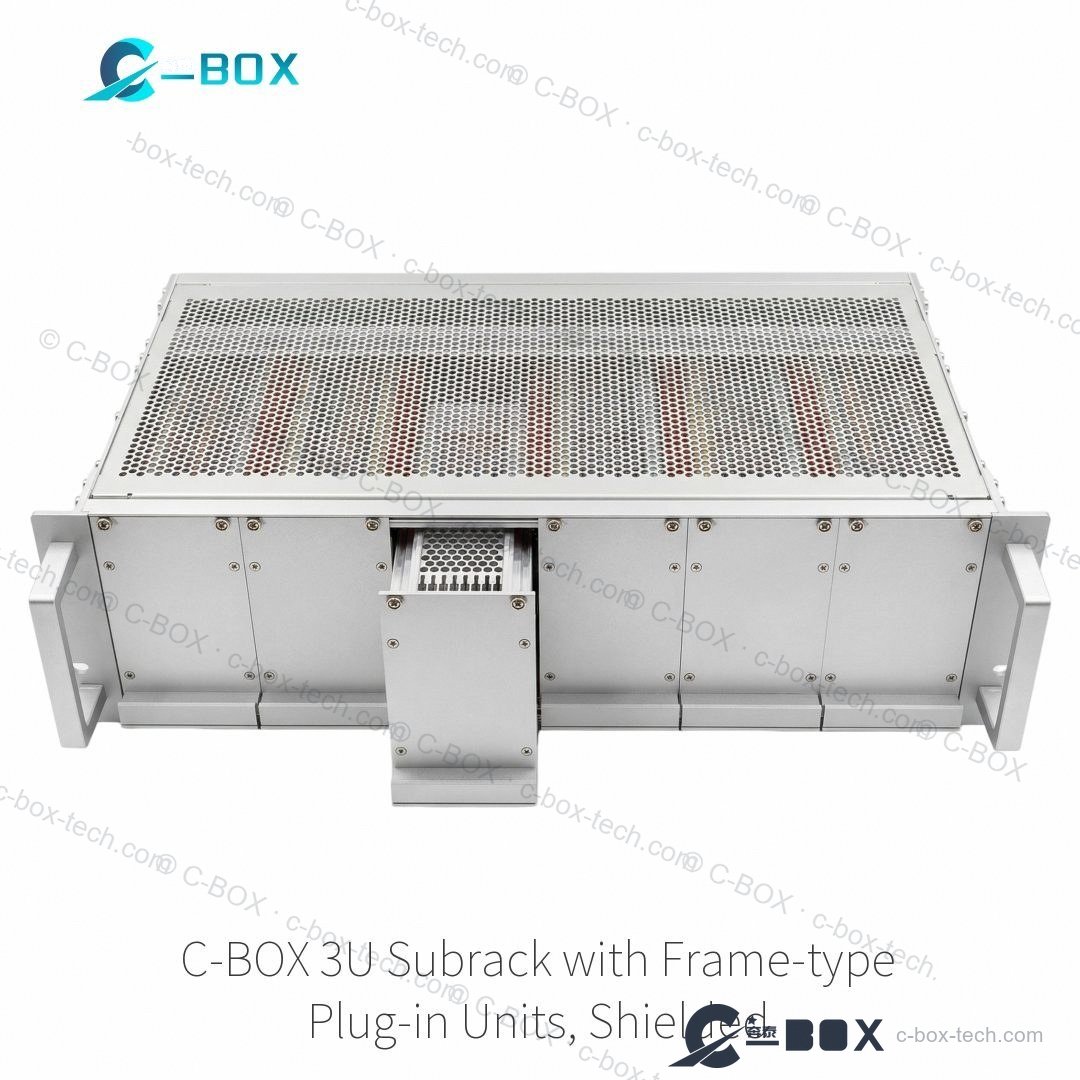

The face of your system: machined aluminium front panels, blanking panels and shielding kits that fit IEEE 1101 practice exactly.
Front panels carry the interfaces, the branding and the EMC seal of a 19″ system. C-BOX machines 3U and 6U aluminium panels to your drawing — connector cutouts, display windows, vent slots and silkscreen legends — and supplies the matching blanking panels and front-panel shielding kits (spring fingers, gaskets and fixing hardware) that keep the shielding concept intact at every slot. Small batches are welcome; the CNC work is ours.
| Heights | 3U (128.4 mm) / 6U (261.8 mm) panel |
| Widths | 4HP – 84HP |
| Material | aluminium 1.6 / 2 / 3 mm |
| Machining | CNC milling, drilling, laser cutouts |
| Printing | 1 – 4 colour silkscreen |
| EMC | shielding kits with spring fingers / gaskets |
Same interface dimensions as the nVent SCHROFF equivalents — our own tooling, material and finish.
Every model has its own page with specifications and RFQ. Use your browser search (Ctrl/Cmd+F) on this page, or send us the number and we will quote it.

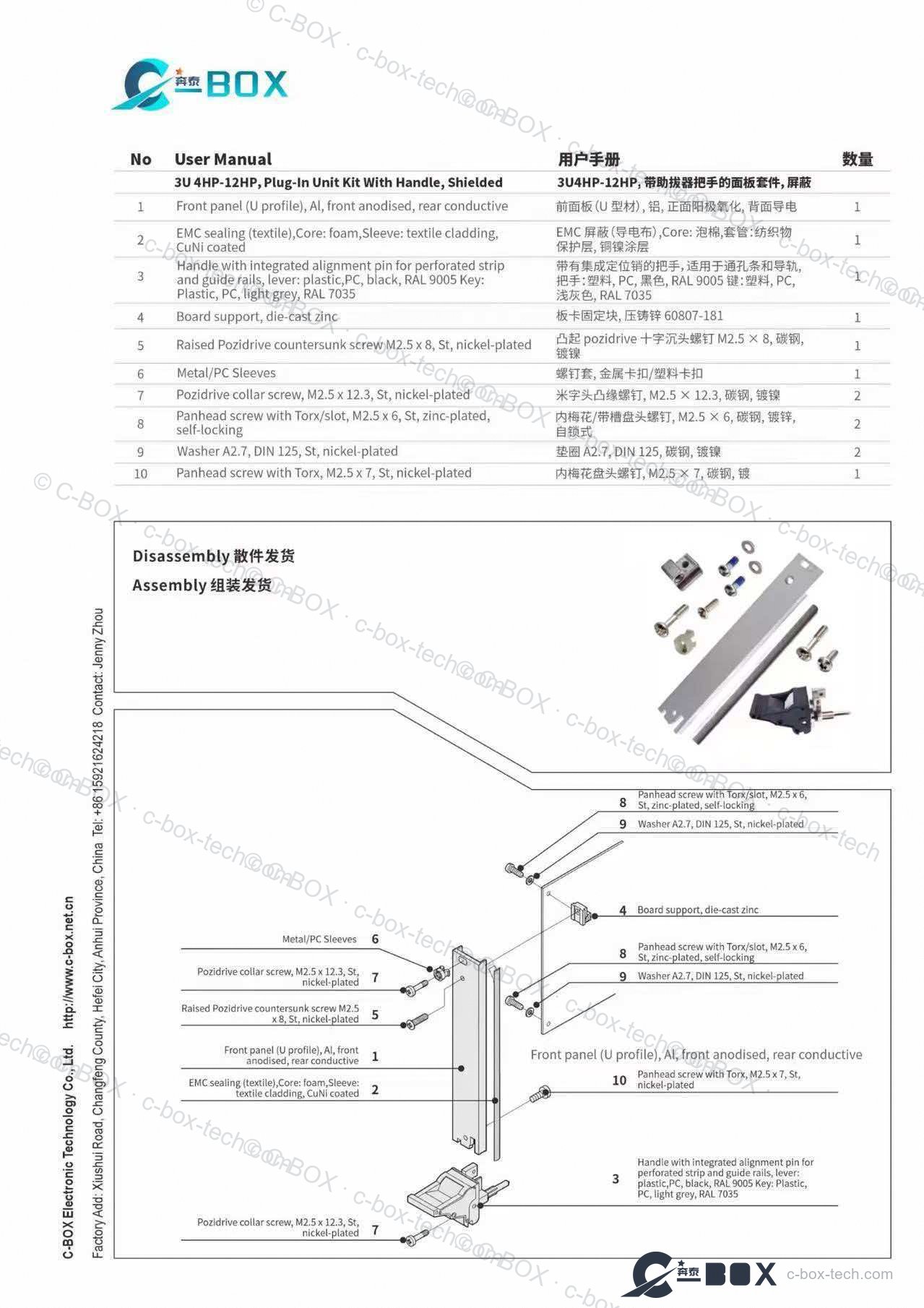

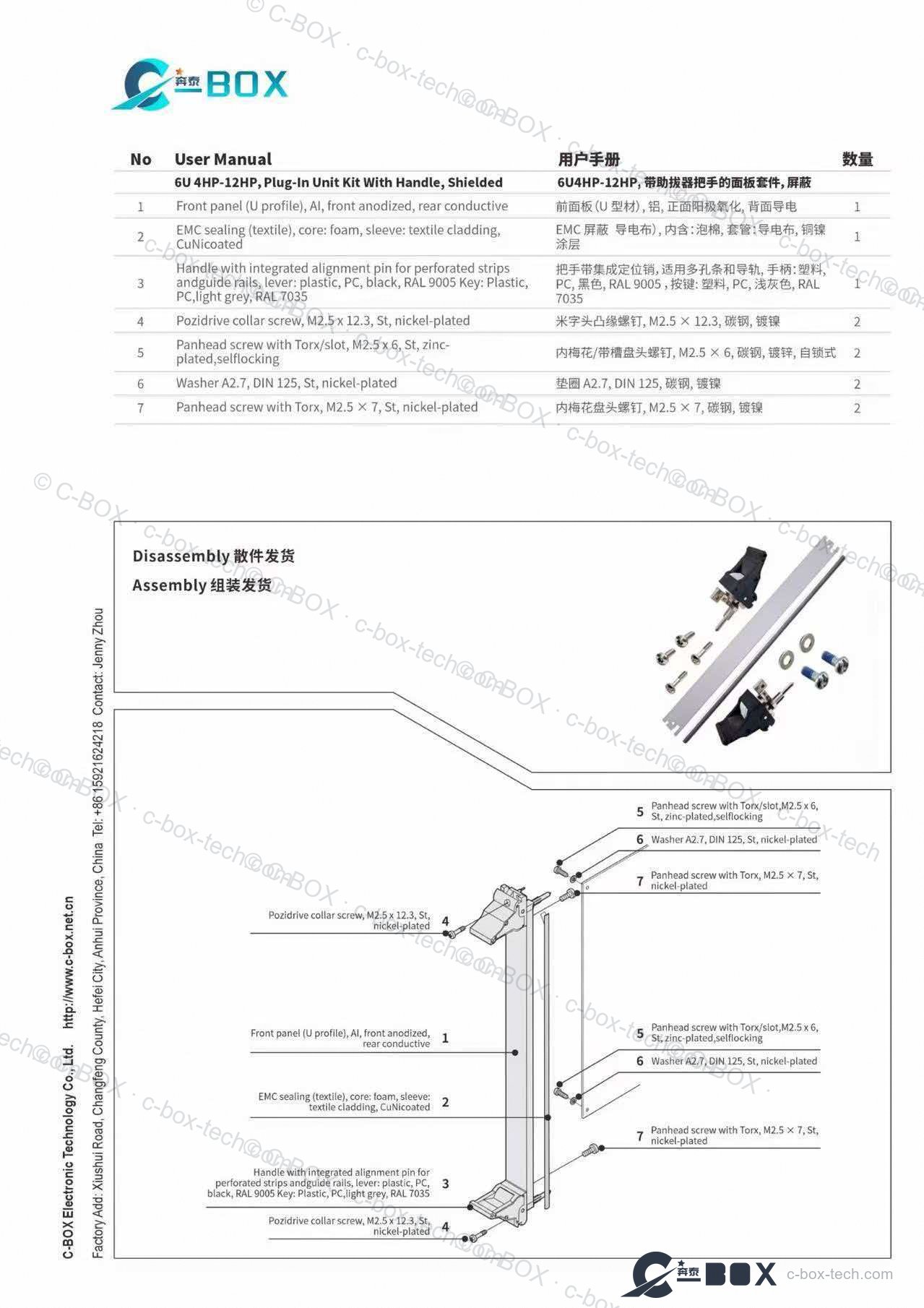

Our two standard kits: 3U and 6U, 4HP–12HP. Each kit bundles the U-profile front panel (aluminium, front anodised / rear conductive), textile EMC gasket, IEL inserter / extractor handle with integrated alignment pin, board support and the full M2.5 fastener set — item by item, ready to assemble.
Height in U, width in HP, thickness in millimetres. Get those three right and the rest of a front-panel drawing is detail — get one wrong and the panel will not fit the bay it was designed for.
A 19″ front panel drawing looks complicated because it carries cut-outs, silk-screen, handle fixing holes and sometimes a shielding gasket. The geometry underneath is simple: the panel occupies a whole number of HP (1 HP = 5.08 mm) across and a whole number of U (1 U = 44.45 mm) down, and it has to leave a small clearance to its neighbours.
| Dimension | How it is set | Typical value |
|---|---|---|
| Width | HP count × 5.08 mm, minus clearance | 0.3 mm per side at standard pitch |
| Height | U count × 44.45 mm, minus clearance | 0.4-0.8 mm depending on gasket |
| Thickness | mechanical and EMC requirement | 2.5 mm standard, 3.0 mm for heavy cut-outs, 4.0 mm for load-bearing |
A 2.5 mm aluminium panel is the standard choice: light, flat enough for silk-screen, and adequate for connector cut-outs. Go to 3.0 mm when the panel carries a large D-sub or circular connector cut-out, or when it is machined rather than punched — thin panels distort around a big opening. The 4.0 mm range is for panels that carry a handle and take insertion force, or where the panel is part of the structural path.
Where this product line is typically used.
Parts that usually go together with 19″ Front Panels.
Related categories
Yes, small batches are welcome and the CNC work is ours. Panels are 3U (128.4 mm) or 6U (261.8 mm), widths 4 HP-84 HP, aluminium 1.6 / 2 / 3 mm, with CNC milling and drilling, laser cut-outs and 1-4 colour silkscreen.
Whenever the panel has to preserve the EMC seal at its slot. The kit supplies spring fingers, gaskets and fixing hardware. Blanking panels close unused slots, solid or vented, so airflow and shielding stay under control.
Both matter, and they are written U first: a 3U 8 HP panel is 128.4 mm high and 8 × 5.08 = 40.6 mm wide, and a 6U panel is 261.8 mm. Panels are cut slightly under the grid — about 0.3 mm per side across and 0.4–0.8 mm down depending on the gasket — so the panel fits its slot without binding when the frame warms up.
2.5 mm is standard for 3U and 6U panels with normal cut-outs. Go to 3.0 mm where a large cut-out or a heavy connector weakens the plate, and 4.0 mm for load-bearing or handle-mounted parts. Thin 1.6–2.0 mm sheet belongs on light covers, not on panels that carry insertion force. Thickness follows the cut-out layout, so send the cut-out drawing together with the HP count.
Three build levels: plain panel, stainless-steel gasket, or textile gasket for the shielding seal. Handles are assembled in two groups — below 8 HP and 8 HP and above — because the fixing hardware differs, and a panel drilled for one group will not take the other. We can also supply the panel only, with handle holes drilled and the gasket left to you.
Made in our own plants — chassis and precision parts from Kunshan, cabinets and surface finishing from Hefei: CNC punching, press braking, CNC machining, assembly, inspection and export packing in-house.
Kunshan plant →Hefei plant →Cross-referencing against major international 19″ system part numbers is our daily routine — we quote within 24 hours for standard items.
