Product line 05 / 12 · Desktop Enclosures

Desktop & Instrument Enclosures

Benchtop cases that look like instruments, not boxes — from A-type 3U / 4U instrument enclosures to 2U – 7U system cases that house complete 19″ electronics.

C-BOX desktop system enclosure, 2U–7U aluminium case with side handles

Overview

Two families share one idea: a benchtop case with 19″ discipline inside. The A-type desktop enclosure turns a subrack into a free-standing unit with extruded side profiles and carry handles. Our 2U – 7U system cases go further — 19″-compatible internal dimensions for euroboards, CompactPCI and VME assemblies, with a symmetrical aluminium construction (identical front and rear), a shielded board cage and a base level of EMC shielding that can be upgraded when the project demands more. Three trims cover every use: cover strips for a clean look, front handles for portability, or a 19″ mounting bracket that parks the case in a rack. Ventilation comes engineered — a slit in the base plate and a perforated rear panel, with a filtered-air version available.

  • A-type system cases 3U / 4U · system cases 2U – 7U
  • 19″-compatible internals for euroboards, CompactPCI / VME
  • Symmetrical aluminium design, identical front and rear

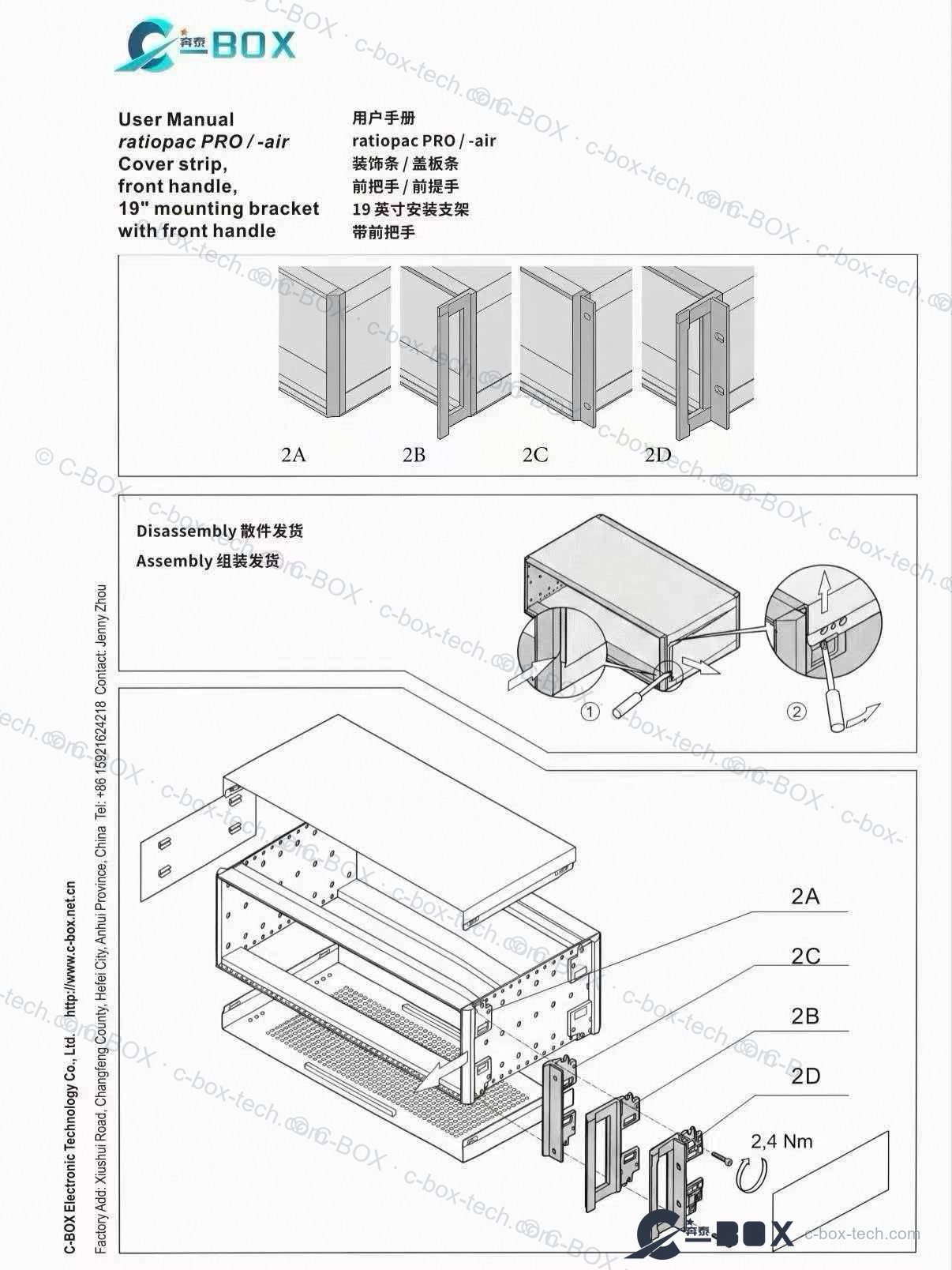

  • Three trims: cover strips · front handles · 19″ mounting bracket
  • Board depths 160 / 220 / 280 / 340 mm
  • Base EMC shielding, higher-grade shielding retrofittable
  • Base vent slit + perforated rear; filtered-air version

Request a quote for this line

Typical specifications

Heightssystem cases 2U – 7U · A-type 3U / 4U
Board depths160 / 220 / 280 / 340 mm
Materialaluminium case and panels, die-cast trims
EMCbase level in standard versions, retrofittable
Trimscover strips · front handles · 19″ mounting bracket
Coolingbase vent slit + perforated rear panel; filter-mat version
Panel machiningCNC cutouts, silkscreen printing

19″ desk-top & instrument cases — all 172 part numbers

Same interface dimensions as the nVent SCHROFF equivalents — our own tooling, material and finish.

Every model has its own page with specifications and RFQ. Use your browser search (Ctrl/Cmd+F) on this page, or send us the number and we will quote it.

19″ Desk-top Cases (172)

10603-023 · 10603023
Plastic Foot With Tip-Up Function, Grey
10603-024 · 10603024
Plastic Foot Without Tip-Up Function, Grey
10603-026 · 10603026
Plastic Foot Without Tip-Up Function, Black
14575-023 · 14575023
CompacPRO Desktop Case, Unshielded, 2 U, 42 HP, 271 mm
14575-025 · 14575025
CompacPRO Desktop Case, Unshielded, 2 U, 42 HP, 331 mm
14575-027 · 14575027
CompacPRO Desktop Case, Unshielded, 2 U, 42 HP, 391 mm
14575-063 · 14575063
CompacPRO Desktop Case, Unshielded, 2 U, 84 HP, 271 mm
14575-065 · 14575065
CompacPRO Desktop Case, Unshielded, 2 U, 84 HP, 331 mm
14575-067 · 14575067
CompacPRO Desktop Case, Unshielded, 2 U, 84 HP, 391 mm
14575-103 · 14575103
CompacPRO Desktop Case, Unshielded, 3 U, 28 HP, 271 mm
14575-105 · 14575105
CompacPRO Desktop Case, Unshielded, 3 U, 28 HP, 331 mm
14575-114 · 14575114
CompacPRO Complete Desktop Case, Unshielded, 3 U, 28 HP, 271 mm
14575-115 · 14575115
CompacPRO Complete Desktop Case, Unshielded, 3 U, 28 HP, 331 mm
14575-123 · 14575123
CompacPRO Desktop Case, Unshielded, 3 U, 42 HP, 271 mm
14575-125 · 14575125
CompacPRO Desktop Case, Unshielded, 3 U, 42 HP, 331 mm
14575-127 · 14575127
CompacPRO Desktop Case, Unshielded, 3 U, 42 HP, 391 mm
14575-134 · 14575134
CompacPRO Complete Desktop Case, Unshielded, 3 U, 42 HP, 271 mm
14575-135 · 14575135
CompacPRO Complete Desktop Case, Unshielded, 3 U, 42 HP, 331 mm
14575-136 · 14575136
CompacPRO Complete Desktop Case, Unshielded, 3 U, 42 HP, 391 mm
14575-143 · 14575143
CompacPRO Desktop Case, Unshielded, 3 U, 63 HP, 271 mm
14575-145 · 14575145
CompacPRO Desktop Case, Unshielded, 3 U, 63 HP, 331 mm
14575-147 · 14575147
CompacPRO Desktop Case, Unshielded, 3 U, 63 HP, 391 mm
14575-154 · 14575154
CompacPRO Complete Desktop Case, Unshielded, 3 U, 63 HP, 271 mm
14575-155 · 14575155
CompacPRO Complete Desktop Case, Unshielded, 3 U, 63 HP, 331 mm
14575-156 · 14575156
CompacPRO Complete Desktop Case, Unshielded, 3 U, 63 HP, 391 mm
14575-163 · 14575163
CompacPRO Desktop Case, Unshielded, 3 U, 84 HP, 271 mm
14575-165 · 14575165
CompacPRO Desktop Case, Unshielded, 3 U, 84 HP, 331 mm
14575-167 · 14575167
CompacPRO Desktop Case, Unshielded, 3 U, 84 HP, 391 mm
14575-169 · 14575169
CompacPRO Desktop Case, Unshielded, 3 U, 84 HP, 451 mm
14575-171 · 14575171
CompacPRO Desktop Case, Unshielded, 3 U, 84 HP, 511 mm
14575-174 · 14575174
CompacPRO Complete Desktop Case, Unshielded, 3 U, 84 HP, 271 mm
14575-175 · 14575175
CompacPRO Complete Desktop Case, Unshielded, 3 U, 84 HP, 331 mm
14575-176 · 14575176
CompacPRO Complete Desktop Case, Unshielded, 3 U, 84 HP, 391 mm
14575-178 · 14575178
CompacPRO Complete Desktop Case, Unshielded, 3 U, 84 HP, 511 mm
14575-223 · 14575223
CompacPRO Desktop Case, Unshielded, 4 U, 42 HP, 271 mm
14575-225 · 14575225
CompacPRO Desktop Case, Unshielded, 4 U, 42 HP, 331 mm
14575-243 · 14575243
CompacPRO Desktop Case, Unshielded, 4 U, 63 HP, 271 mm
14575-245 · 14575245
CompacPRO Desktop Case, Unshielded, 4 U, 63 HP, 331 mm
14575-247 · 14575247
CompacPRO Desktop Case, Unshielded, 4 U, 63 HP, 391 mm
14575-265 · 14575265
CompacPRO Desktop Case, Unshielded, 4 U, 84 HP, 331 mm
14575-267 · 14575267
CompacPRO Desktop Case, Unshielded, 4 U, 84 HP, 391 mm
14575-269 · 14575269
CompacPRO Desktop Case, Unshielded, 4 U, 84 HP, 451 mm
14575-271 · 14575271
CompacPRO Desktop Case, Unshielded, 4 U, 84 HP, 511 mm
14575-445 · 14575445
CompacPRO Desktop Case, Unshielded, 6 U, 63 HP, 331 mm
14575-447 · 14575447
CompacPRO Desktop Case, Unshielded, 6 U, 63 HP, 391 mm
14575-463 · 14575463
CompacPRO Desktop Case, Unshielded, 6 U, 84 HP, 271 mm
14575-465 · 14575465
CompacPRO Desktop Case, Unshielded, 6 U, 84 HP, 331 mm
14575-467 · 14575467
CompacPRO Desktop Case, Unshielded, 6 U, 84 HP, 391 mm
14575-469 · 14575469
CompacPRO Desktop Case, Unshielded, 6 U, 84 HP, 451 mm
14575-471 · 14575471
CompacPRO Desktop Case, Unshielded, 6 U, 84 HP, 511 mm
14575-476 · 14575476
CompacPRO Complete Desktop Case, Unshielded, 6 U, 84 HP, 391 mm
14575-477 · 14575477
CompacPRO Complete Desktop Case, Unshielded, 6 U, 84 HP, 451 mm
20823-668 · 20823668
CompacPRO Rear Foot, 3 U, increased 45 mm
20823-669 · 20823669
CompacPRO Rear Foot, 4 U, increased 45 mm
21100-814 · 21100814
Inpac Earthing Kit
24571-002 · 24571002
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 3 U, 28 HP, 255 mm
24571-005 · 24571005
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 3 U, 28 HP, 315 mm
24571-014 · 24571014
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 3 U, 42 HP, 255 mm
24571-018 · 24571018
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 3 U, 42 HP, 375 mm
24571-026 · 24571026
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 3 U, 63 HP, 255 mm
24571-029 · 24571029
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 3 U, 63 HP, 315 mm
24571-030 · 24571030
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 3 U, 63 HP, 375 mm
24571-038 · 24571038
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 3 U, 84 HP, 255 mm
24571-041 · 24571041
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 3 U, 84 HP, 315 mm
24571-042 · 24571042
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 3 U, 84 HP, 375 mm
24571-043 · 24571043
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 3 U, 84 HP, 435 mm
24571-044 · 24571044
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 3 U, 84 HP, 495 mm
24571-050 · 24571050
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 4 U, 28 HP, 255 mm
24571-053 · 24571053
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 4 U, 28 HP, 315 mm
24571-062 · 24571062
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 4 U, 42 HP, 255 mm
24571-065 · 24571065
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 4 U, 42 HP, 315 mm
24571-066 · 24571066
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 4 U, 42 HP, 375 mm
24571-086 · 24571086
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 4 U, 84 HP, 255 mm
24571-089 · 24571089
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 4 U, 84 HP, 315 mm
24571-090 · 24571090
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 4 U, 84 HP, 375 mm
24571-091 · 24571091
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 4 U, 84 HP, 435 mm
24571-092 · 24571092
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 4 U, 84 HP, 495 mm
24571-098 · 24571098
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 6 U, 28 HP, 255 mm
24571-101 · 24571101
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 6 U, 28 HP, 315 mm
24571-110 · 24571110
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 6 U, 42 HP, 255 mm
24571-113 · 24571113
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 6 U, 42 HP, 315 mm
24571-114 · 24571114
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 6 U, 42 HP, 375 mm
24571-122 · 24571122
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 6 U, 63 HP, 255 mm
24571-125 · 24571125
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 6 U, 63 HP, 315 mm
24571-126 · 24571126
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 6 U, 63 HP, 375 mm
24571-134 · 24571134
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 6 U, 84 HP, 255 mm
24571-137 · 24571137
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 6 U, 84 HP, 315 mm
24571-138 · 24571138
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 6 U, 84 HP, 375 mm
24571-139 · 24571139
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 6 U, 84 HP, 435 mm
24571-140 · 24571140
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 6 U, 84 HP, 495 mm
24571-185 · 24571185
RatiopacPRO AIR Desktop Case, Retrofittable Shielding, Front Trim, 3/4 U, 84 HP, 315 mm
24571-186 · 24571186
RatiopacPRO AIR Desktop Case, Retrofittable Shielding, Front Trim, 3/4 U, 84 HP, 375 mm
24571-187 · 24571187
RatiopacPRO AIR Desktop Case, Retrofittable Shielding, Front Trim, 3/4 U, 84 HP, 435 mm
24571-281 · 24571281
RatiopacPRO AIR Desktop Case, Retrofittable Shielding, Front Trim, 6/7 U, 84 HP, 315 mm
24571-282 · 24571282
RatiopacPRO AIR Desktop Case, Retrofittable Shielding, Front Trim, 6/7 U, 84 HP, 375 mm
24571-283 · 24571283
RatiopacPRO AIR Desktop Case, Retrofittable Shielding, Front Trim, 6/7 U, 84 HP, 435 mm
24571-284 · 24571284
RatiopacPRO AIR Desktop Case, Retrofittable Shielding, Front Trim, 6/7 U, 84 HP, 495 mm
24571-705 · 24571705
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 3 U, 28 HP, 315 mm
24571-714 · 24571714
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 3 U, 42 HP, 255 mm
24571-717 · 24571717
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 3 U, 42 HP, 315 mm
24571-718 · 24571718
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 3 U, 42 HP, 375 mm
24571-726 · 24571726
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 3 U, 63 HP, 255 mm
24571-729 · 24571729
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 3 U, 63 HP, 315 mm
24571-798 · 24571798
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 6 U, 28 HP, 255 mm
24571-801 · 24571801
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 6 U, 28 HP, 315 mm
24571-810 · 24571810
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 6 U, 42 HP, 255 mm
24571-813 · 24571813
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 6 U, 42 HP, 315 mm
24571-814 · 24571814
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 6 U, 42 HP, 375 mm
24571-822 · 24571822
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 6 U, 63 HP, 255 mm
24571-825 · 24571825
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 6 U, 63 HP, 315 mm
24571-826 · 24571826
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 6 U, 63 HP, 375 mm
24571-834 · 24571834
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 6 U, 84 HP, 255 mm
24571-837 · 24571837
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 6 U, 84 HP, 315 mm
24571-838 · 24571838
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 6 U, 84 HP, 375 mm
24571-839 · 24571839
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 6 U, 84 HP, 435 mm
24571-840 · 24571840
RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 6 U, 84 HP, 495 mm
24571-887 · 24571887
19″ Case 3/4 U, 84 HP, 435 mm, Retrofittable Shielding, with Handles
24571-888 · 24571888
19″ Case 3/4 U, 84 HP, 495 mm, Retrofittable Shielding, with Handles
24571-982 · 24571982
RatiopacPRO AIR 19" Case, Retrofittable Shielding With Handles, 6/7 U, 84 HP, 375 mm
24572-001 · 24572001
RatiopacPRO, Complete Case, Desktop, Retrofittable Shielding, Front Trim, 3 U, 28 HP, 255 mm
24572-002 · 24572002
RatiopacPRO, Complete Case, Desktop, Retrofittable Shielding, Front Trim, 3 U, 42 HP, 255 mm
24572-004 · 24572004
RatiopacPRO, Complete Case, Desktop, Retrofittable Shielding, Front Trim, 3 U, 63 HP, 315 mm
24572-005 · 24572005
RatiopacPRO, Complete Case, Desktop, Retrofittable Shielding, Front Trim, 3 U, 84 HP, 315 mm
24572-007 · 24572007
RatiopacPRO, Complete Case, Desktop, Retrofittable Shielding, Front Trim, 3 U, 84 HP, 435 mm
24572-017 · 24572017
RatiopacPRO, Complete Case, Desktop, Retrofittable Shielding, Front Trim, 6 U, 84 HP, 315 mm
24572-018 · 24572018
RatiopacPRO, Complete Case, Desktop, Retrofittable Shielding, Front Trim, 6 U, 84 HP, 375 mm
24572-019 · 24572019
RatiopacPRO, Complete Case, Desktop, Retrofittable Shielding, Front Trim, 6 U, 84 HP, 435 mm
24572-029 · 24572029
RatiopacPRO AIR Complete Case, Desktop, Retrofittable Shielding, Front Trim, 3/4 U, 84 HP, 315 mm
24572-030 · 24572030
RatiopacPRO AIR Complete Case, Desktop, Retrofittable Shielding, Front Trim, 3/4 U, 84 HP, 375 mm
24572-066 · 24572066
RatiopacPRO, Complete Case, Desktop, Shielded, Front Trim, 6 U, 84 HP, 315 mm
24572-067 · 24572067
RatiopacPRO, Complete Case, Desktop, Shielded, Front Trim, 6 U, 84 HP, 375 mm
24572-068 · 24572068
RatiopacPRO, Complete Case, Desktop, Shielded, Front Trim, 6 U, 84 HP, 435 mm
24572-091 · 24572091
RatiopacPRO AIR Complete Case, Desktop, Shielded, Front Trim, 6/7 U, 84 HP, 375 mm
24572-117 · 24572117
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (1-3-1), 28 HP, 255 mm
24572-120 · 24572120
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (1-3-1), 28 HP, 315 mm
24572-129 · 24572129
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (1-3-1), 42 HP, 255 mm
24572-132 · 24572132
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (1-3-1), 42 HP, 315 mm
24572-133 · 24572133
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (1-3-1), 42 HP, 375 mm
24572-141 · 24572141
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (1-3-1), 63 HP, 255 mm
24572-144 · 24572144
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (1-3-1), 63 HP, 315 mm
24572-145 · 24572145
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (1-3-1), 63 HP, 375 mm
24572-153 · 24572153
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (1-3-1), 84 HP, 255 mm
24572-156 · 24572156
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (1-3-1), 84 HP, 315 mm
24572-157 · 24572157
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (1-3-1), 84 HP, 375 mm
24572-158 · 24572158
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (1-3-1), 84 HP, 435 mm
24572-159 · 24572159
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (1-3-1), 84 HP, 495 mm
24572-261 · 24572261
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (3-2), 28 HP, 255 mm
24572-264 · 24572264
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (3-2), 28 HP, 315 mm
24572-273 · 24572273
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (3-2), 42 HP, 255 mm
24572-276 · 24572276
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (3-2), 42 HP, 315 mm
24572-277 · 24572277
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (3-2), 42 HP, 375 mm
24572-285 · 24572285
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (3-2), 63 HP, 255 mm
24572-288 · 24572288
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (3-2), 63 HP, 315 mm
24572-289 · 24572289
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (3-2), 63 HP, 375 mm
24572-297 · 24572297
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (3-2), 84 HP, 255 mm
24572-300 · 24572300
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (3-2), 84 HP, 315 mm
24572-301 · 24572301
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (3-2), 84 HP, 375 mm
24572-302 · 24572302
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (3-2), 84 HP, 435 mm
24572-303 · 24572303
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 5 U (3-2), 84 HP, 495 mm
24572-500 · 24572500
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 2 U, 28 HP, 255 mm
24572-503 · 24572503
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 2 U, 28 HP, 315 mm
24572-510 · 24572510
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 2 U, 42 HP, 255 mm
24572-513 · 24572513
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 2 U, 42 HP, 315 mm
24572-514 · 24572514
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 2 U, 42 HP, 375 mm
24572-520 · 24572520
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 2 U, 63 HP, 255 mm
24572-523 · 24572523
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 2 U, 63 HP, 315 mm
24572-524 · 24572524
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 2 U, 63 HP, 375 mm
24572-530 · 24572530
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 2 U, 84 HP, 255 mm
24572-533 · 24572533
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 2 U, 84 HP, 315 mm
24572-534 · 24572534
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 2 U, 84 HP, 375 mm
24572-535 · 24572535
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 2 U, 84 HP, 435 mm
24572-536 · 24572536
RatiopacPRO, Desktop Case, Retrofittable Shielding, Front Trim, 2 U, 84 HP, 495 mm

Desktop case trims, exploded

Four front variants — cover strip (2A), front handle (2B), 19″ mounting bracket (2C) and 19″ bracket with front handle (2D) — on the same case platform. Supplied disassembled (flat-pack) or assembled, trims torqued to 2.4 Nm.

C-BOX desktop case trims: cover strip, front handle, 19 inch mounting bracket, with front handle — exploded assembly view

Benchtop case or 2U-7U system case

The same electronics can go into a desk-top instrument case or a 19″ rack case. The choice changes cooling, access and how the product is installed on site — and it is usually made later than it should be.

Desk-top / instrument case19″ system case
Mountingfeet or tilt stand, sits on a benchfront-panel mounting in a rack, 2 U to 7 U
Coolingconvection through top and side ventsfront-to-rear airflow, fan or fan tray
Board spaceone or two boards, horizontalcard cage or subrack, vertical boards
Accesstop cover offfront panels and rear connectors, covers stay on
EMCoptional internal coating or gasketgasket on the front panel line, shielded subrack

Thermal reality of a sealed bench case

A closed aluminium case with no vents dissipates by conduction to the surface and then by natural convection. As a rule of thumb, a painted case of about 0.5 m² surface area can shed roughly 25-35 W at a 20 K rise above ambient; add vents and the internal air temperature drops, but dust comes in. If the design dissipates more than that, the options are vents with a filter, a small fan in the end plate, or moving to a rack case with a proper airflow path.

When the rack case is the better answer

Both formats share the same 3 U / 6 U panel grid, so a design can migrate later — but only if the board outline and connector positions were laid out for it from the start. Worth deciding before the first PCB spin.

Applications

Where this product line is typically used.

Instrument front endsBenchtop housings for measurement electronics.
Portable test unitsHandle-fitted cases for field and service use.
Control desktopsOperator-facing units with custom panel layouts.
Prototypes & pilotsSmall batches with full machining, no tooling cost.

Related product lines

Parts that usually go together with Desktop & Instrument Enclosures.

Related categories

Continue with

Case selection and shielding

A-type desktop enclosure or 2U-7U system case?

The A-type (3U / 4U) turns a subrack into a free-standing bench unit with extruded side profiles and carry handles. System cases 2U-7U have 19"-compatible internals for euroboards, CompactPCI and VME, a symmetrical aluminium body (identical front and rear) and a shielded board cage.

Which board depths fit?

160 / 220 / 280 / 340 mm. Three trims cover the use cases: cover strips, front handles, or a 19" mounting bracket that parks the case in a rack.

Can shielding be upgraded later?

Base EMC shielding is standard and a higher grade is retrofittable. Ventilation is engineered in - a slit in the base plate and a perforated rear panel, with a filtered-air version available.

A-type case or 2U–7U system case — where is the crossover?

A-type cases suit a single board or a small module set. Move to a system case when the card group grows: the rack-mount range covers 2–7 U in 28, 42, 63 and 84 HP widths, with board depths of 160, 220 and 280 mm and overall depths from 255.5 to 495.5 mm. If the assembly has to slide into a 19″ rack later, start with the system case — an A-type has no rack ears.

Made in our own plants — chassis and precision parts from Kunshan, cabinets and surface finishing from Hefei: CNC punching, press braking, CNC machining, assembly, inspection and export packing in-house.
