Subrack Accessories · Handles

MultipacPRO Front Handle, One-Piece, Width 10 mm, 5 U

Name: MultipacPRO Front Handle, One-Piece, Width 10 mm, 5 U
Brand: C-BOX
SKU: 20860-260

The front handles can be mounted and provide an easier to mount assembly.

Catalog#: 20860-260

Request a Quote Download Catalog (PDF)

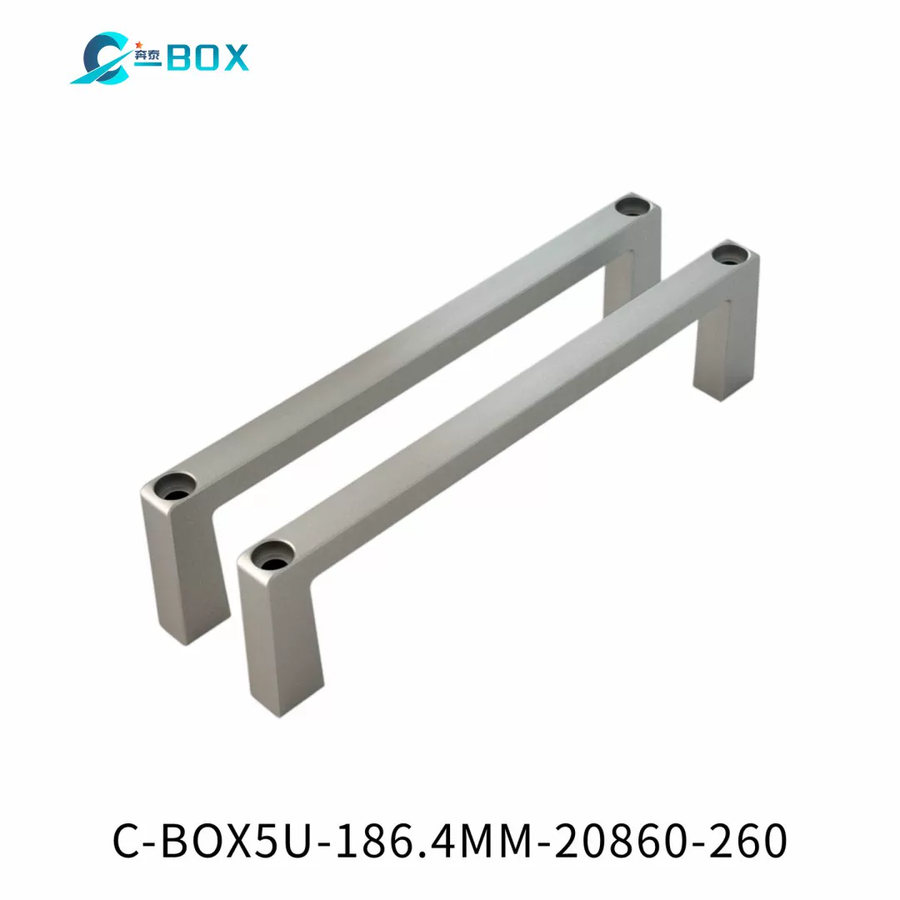

C-BOX MultipacPRO Front Handle, One-Piece, Width 10 mm, 5 U, catalog number 20860-260

Features

Aluminum construction
Anodized finish
5U rack height
Colour: Silver
Handle
Straight handle

Specifications

Catalog Number	20860-260
Rack Height	5U
Material	Aluminum
Finish	Anodized
Color	Silver
Product Type	Handle
Handle Type	Straight
Product Family	MultipacPRO; Frame Type Plug-In Unit
Works With	Chassis; Front Panels
Package Quantity	2
Gross Weight	0.166kg
Width	10mm

Item(s) Delivered

Front handle, anodised aluminium extrusion, height H = 201,9 mm, height h (distance between the fixing screws) = 186,4 mm × 2
Assembly kit × 1
