Plug-In Unit Kit With Extraction Handle Type 1, Unshielded, Grey, 3 U, 6 HP

Name: Plug-In Unit Kit With Extraction Handle Type 1, Unshielded, Grey, 3 U, 6 HP
Brand: C-BOX
SKU: 20817-445

Plug-in unit, with extraction handle type 1 and flat front panel. The grey handle is assembled on the front panel.

Catalog#: 20817-445

Request a Quote Download Catalog (PDF)

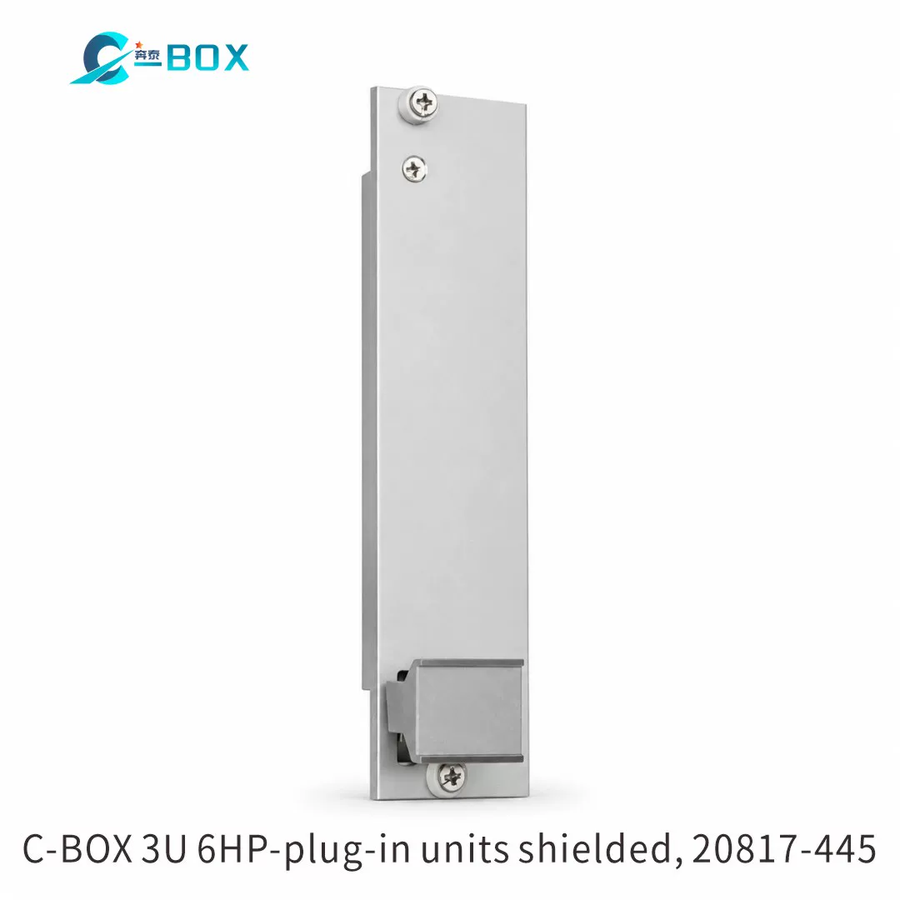

C-BOX Plug-In Unit Kit With Extraction Handle Type 1, Unshielded, Grey, 3 U, 6 HP, catalog number 20817-445

Features

Aluminum construction
Anodized; Passivated finish
6HP rack width
3U rack height
Width 30.1mm
Height 128.4mm

Specifications

Catalog Number	20817-445
Rack Width	6HP
Rack Height	3U
Width (W)	30.1mm
Height (H)	128.4mm
Material	Aluminum
Finish	Anodized; Passivated
Product Type	Front Panel
Type	Front Panel with Handle (PIU)
Handle Type	Trapezoid, Type 1
Complies With	EN 45545-2, R22-R24, HL3; IEC 60297-3-101; IEEE 1101.1/11
Flammability Rating	UL® 94V-0
Package Quantity	1
Mounting	Screw-on Front
Front Finish	Anodized
Rear Finish	Passivated
Treated Edges	No
EMC Shielding	No

Item(s) Delivered

Extractor handle, type 1, trapezium shape, PC, light grey (RAL 7035), bottom × 1
Raised countersunk panhead screw, M2.5 × 8 × 1
Washer, A2.7, DIN 125 × 2
Pozidrive flathead screw, St, nickel-plated, M2.5 × 10 × 2
Identification plate, Al, 1.5 mm, anodised, cut edges plain × 1
Pivot bush, Ms × 1
Board support, die-cast zinc, bottom × 1
Printed board bracket, Zn die-cast × 1
Front panel for trapeziform extractor handle, front anodised, rear irisdescent green chromated × 1
Sleeve, PA, grey × 2
Collar screw, Pozidrive/slot, St, nickel-plated, M2.5 × 12.3 × 2
