Extractor Handle Trapezoid Form, Type 1, Top, Grey

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

Extractor handle trapezoid 1 form can be used to extract PCBs.

Catalog#: 20817-328

Request a Quote Download Catalog (PDF)

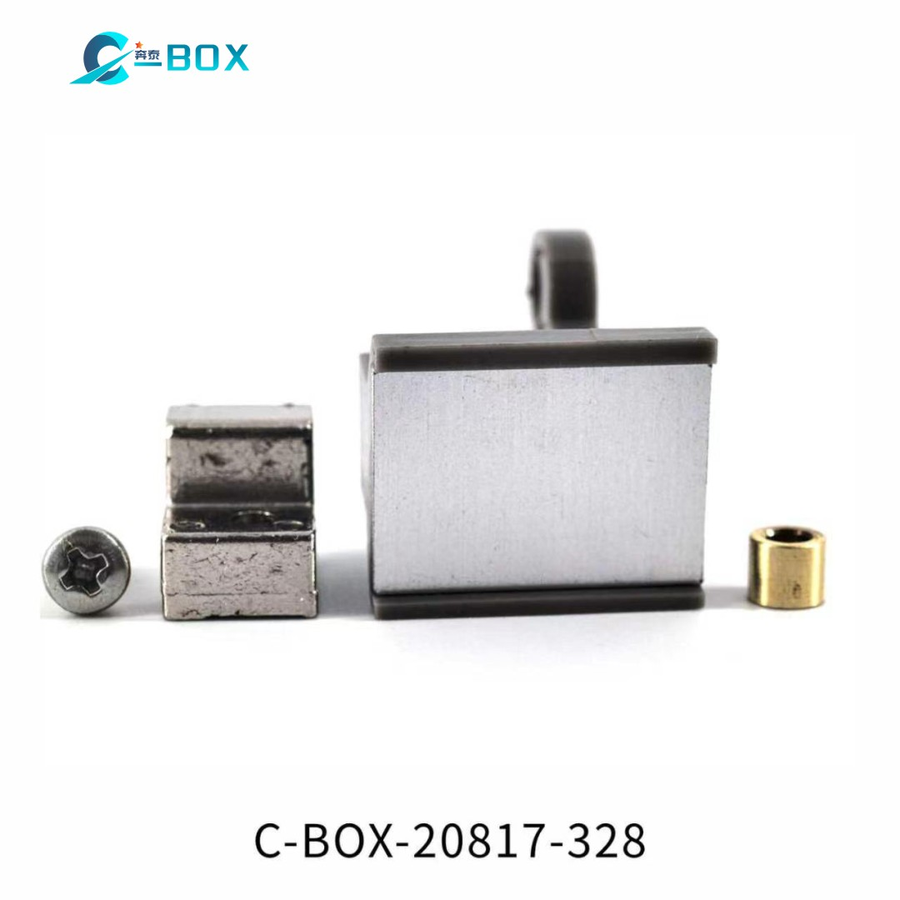

C-BOX Extractor Handle Trapezoid Form, Type 1, Top, Grey, catalog number 20817-328

Features

Polycarbonate construction
Colour: Light Grey
RAL 7035
Handle
Type Extractor
Trapezoid, Type 1 handle

Specifications

Catalog Number	20817-328
Material	Polycarbonate
Color	Light Grey
Color Code	RAL 7035
Product Type	Handle
Type	Extractor
Handle Type	Trapezoid, Type 1
Works With	Front Panels
Complies With	EN 45545-2, R22-R24, HL3; IEC 60297-3-101
Flammability Rating	UL® 94V-0
Package Quantity	1
Gross Weight	0.009kg
Depth	26.3mm
Height	17.8mm

Item(s) Delivered

Cantilever extractor handle, top, PC, UL 94 V-0, light grey (RAL 7035) × 1
Identification plate, Al, 1.5 mm, anodised, cut edges untreated × 1
Printed board bracket, Zn die-cast × 1

Related Inserter / Extractor Handles

Catalog#: 20817-325

Extractor Handle Key Form 1, Bottom, Grey

Catalog#: 20817-326

Extractor Handle Key Form 1, Top, Grey

Catalog#: 20817-327

Extractor Handle Trapezoid Form, Type 1, Bottom, Grey

Catalog#: 20817-329

Extractor Handle Trapezoid Form, Type 1, Bottom, Black

Catalog#: 20817-330

Extractor Handle Trapezoid Form, Type 1, Top, Black

Catalog#: 20817-345

Extractor Handle Key Form 1, Bottom, Black

Catalog#: 20817-346

Extractor Handle Key Form 1, Top, Black

Catalog#: 20817-612

Inserter/Extractor Handle Type IEL, Black Lever, Grey Button, Bottom; 10 pieces

Compatibility

This part is compatible with nVent SCHROFF 20817-328 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 20817-328 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 20817-328 or a compatible custom version? Send an RFQ — engineering response within one business day.
