Plug-In Unit Kit With Extraction Handle Type 1, Shielded, Grey, 3 U, 10 HP

Name: Plug-In Unit Kit With Extraction Handle Type 1, Shielded, Grey, 3 U, 10 HP
Brand: C-BOX
SKU: 20848-490

Plug-in unit, with extraction handle type 1 and U-shaped front panel. The grey handle is assembled on the front panel.

Catalog#: 20848-490

Request a Quote Download Catalog (PDF)

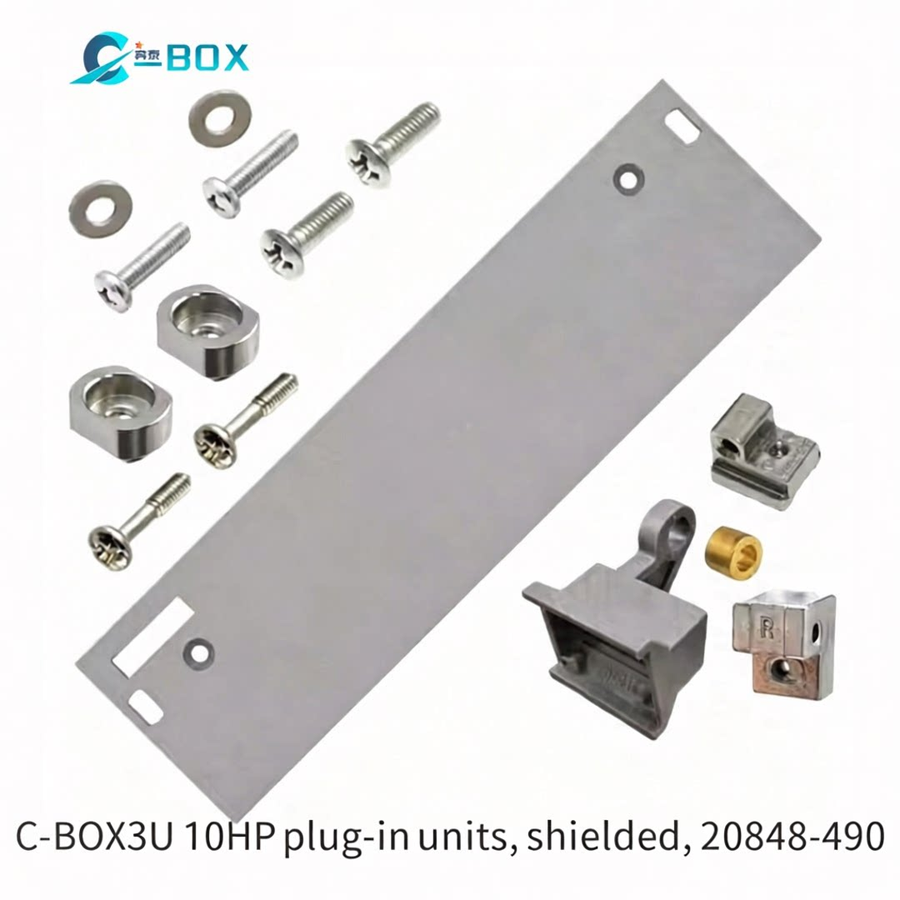

C-BOX Plug-In Unit Kit With Extraction Handle Type 1, Shielded, Grey, 3 U, 10 HP, catalog number 20848-490

Features

Aluminum construction
Anodized; Passivated finish
10HP rack width
3U rack height
Width 50.5mm
Height 128.4mm

Specifications

Catalog Number	20848-490
Rack Width	10HP
Rack Height	3U
Width (W)	50.5mm
Height (H)	128.4mm
Material	Aluminum
Finish	Anodized; Passivated
Product Type	Front Panel
Type	Front Panel with Handle (PIU)
Handle Type	Trapezoid, Type 1
Complies With	EN 45545-2, R22-R24, HL3; IEC 60297-3-101; IEEE 1101.1/11
Flammability Rating	UL® 94V-0
Package Quantity	1
Gross Weight	0.095kg
Mounting	Screw-on Front
Gasket Type	Textile EMC
Front Finish	Anodized
Rear Finish	Etched
Treated Edges	No
EMC Shielding	Yes

Item(s) Delivered

Extractor handle type 1, trapezium shape, PC, light grey (RAL 7035), bottom × 1
Raised countersunk screw, M2.5 × 8 × 1
EMC textile gasket × 1
Washer, A2.7, DIN 125 × 2
Pozidrive flathead screw, St, nickel-plated, M2.5 × 10 × 2
Identification plate, Al, 1.5 mm, anodised, cut edges plain × 1
Bearing female connector, Ms × 1
Printed board bracket, Zn, die-cast, bottom × 1
Printed board bracket, Zn, die-cast × 1
U front panel for extractor handle in trapezium shape, anodised front, conductive rear × 1
Alignment pin, pressed-in, stainless steel × 2
Sleeve, PA, grey × 4
Pozidrive collar screw, St, nickel-plated, M2.5 × 12.3 × 4
