Subrack Accessories · Handles

Plug-In Unit Kit With Extraction Handle Type 1, Shielded, Grey, 6 U, 12 HP

Name: Plug-In Unit Kit With Extraction Handle Type 1, Shielded, Grey, 6 U, 12 HP
Brand: C-BOX
SKU: 20848-498

Plug-in unit, with extraction handle type 1 and U-shaped front panel. The grey handle is assembled on the front panel.

Catalog#: 20848-498

Request a Quote Download Catalog (PDF)

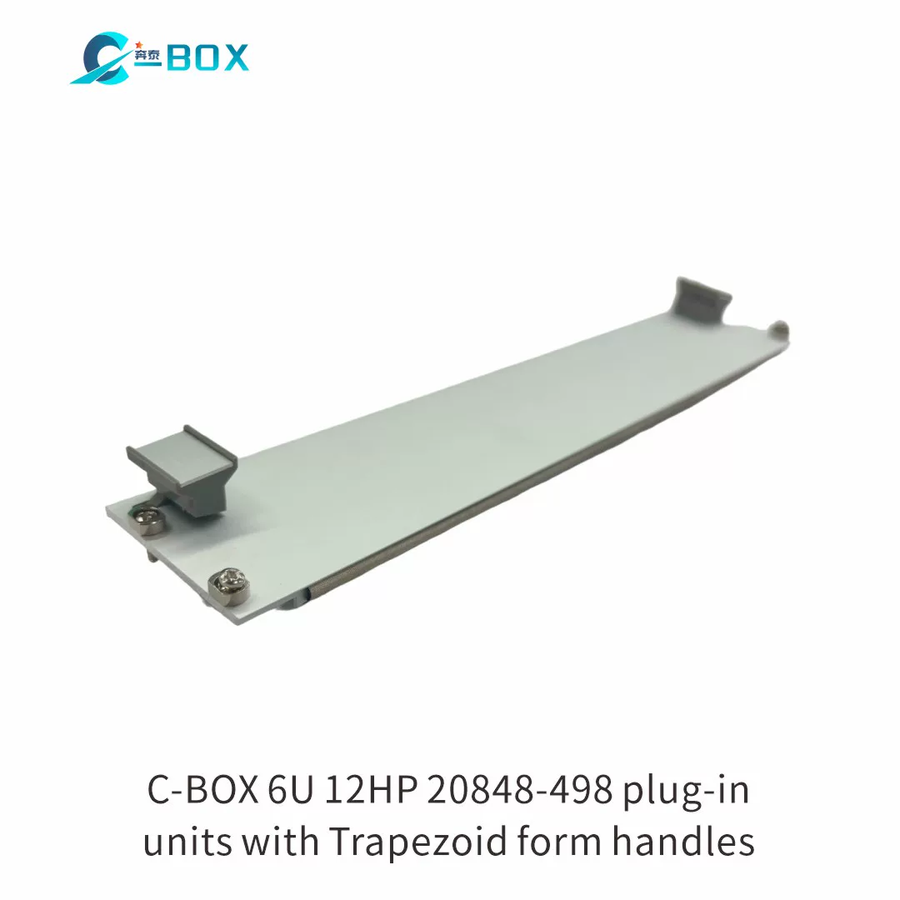

C-BOX Plug-In Unit Kit With Extraction Handle Type 1, Shielded, Grey, 6 U, 12 HP, catalog number 20848-498

Features

Aluminum construction
Anodized; Passivated finish
12HP rack width
6U rack height
Width 60.6mm
Height 261.8mm

Specifications

Catalog Number	20848-498
Rack Width	12HP
Rack Height	6U
Width (W)	60.6mm
Height (H)	261.8mm
Material	Aluminum
Finish	Anodized; Passivated
Product Type	Front Panel
Type	Front Panel with Handle (PIU)
Handle Type	Trapezoid, Type 1
Complies With	EN 45545-2, R22-R24, HL3; IEC 60297-3-101; IEEE 1101.1/11
Flammability Rating	UL® 94V-0
Package Quantity	1
Mounting	Screw-on Front
Gasket Type	Textile EMC
Front Finish	Anodized
Rear Finish	Etched
Treated Edges	No
EMC Shielding	Yes
Net Weight	0.18kg

Item(s) Delivered

Extractor handle type 1, trapezium shape, PC, light grey (RAL 7035), bottom × 1
Raised countersunk screw, M2.5 × 8 × 2
EMC textile gasket × 1
Washer, A2.7, DIN 125 × 2
Pozidrive flathead screw, St, nickel-plated, M2.5 × 10 × 2
Identification plate, Al, 1.5 mm, anodised, cut edges plain × 2
Bearing female connector, Ms × 2
Printed board bracket, Zn, die-cast, bottom × 1
U front panel for extractor handle in trapezium shape, anodised front, conductive rear × 1
Alignment pin, pressed-in, stainless steel × 2
Sleeve, PA, grey × 4
Pozidrive collar screw, St, nickel-plated, M2.5 × 12.3 × 4

Related Handles

Catalog#: 20808-003

Static Handle Plastic in Trapezoid Form, Grey, 5 HP

Catalog#: 20808-004

Static Handle Plastic in Trapezoid Form, Grey, 10 HP

Catalog#: 20808-060

Static Handle Plastic in Trapezoid Form, Grey, 6 HP

Catalog#: 20808-061

Static Handle Plastic in Trapezoid Form, Grey, 7 HP

Catalog#: 20808-062

Static Handle Plastic in Trapezoid Form, Grey, 8 HP

Catalog#: 20808-063

Static Handle Plastic in Trapezoid Form, Grey, 9 HP

Catalog#: 20808-064

Static Handle Plastic in Trapezoid Form, Grey, 12 HP

Catalog#: 20808-065

Static Handle Plastic in Trapezoid Form, Grey, 14 HP

Compatibility with nVent SCHROFF 20848-498

This C-BOX part is compatible with nVent SCHROFF 20848-498 — same interface dimensions, our own tooling, material and finish. It is also a direct replacement for nVent SCHROFF 20848-498: a drop-in alternative for existing 20848-498 installations, no rework required.

Cross-reference: nVent SCHROFF 20848-498, nVent 20848-498, SCHROFF 20848-498 — matching C-BOX catalog number 20848-498. Same hole pattern, same panel cut-out, same thread.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 20848-498 or a compatible custom version? Send an RFQ — engineering response within one business day.
