EuropacPRO Cover Plate for Bolting to Side Panel, 84 HP, 175 mm

Name: EuropacPRO Cover Plate for Bolting to Side Panel, 84 HP, 175 mm
Brand: C-BOX
SKU: 24560-078

A cover plate is used for electromagnetic shielding or as mechanical protection.

Catalog#: 24560-078

Request a Quote Download Catalog (PDF)

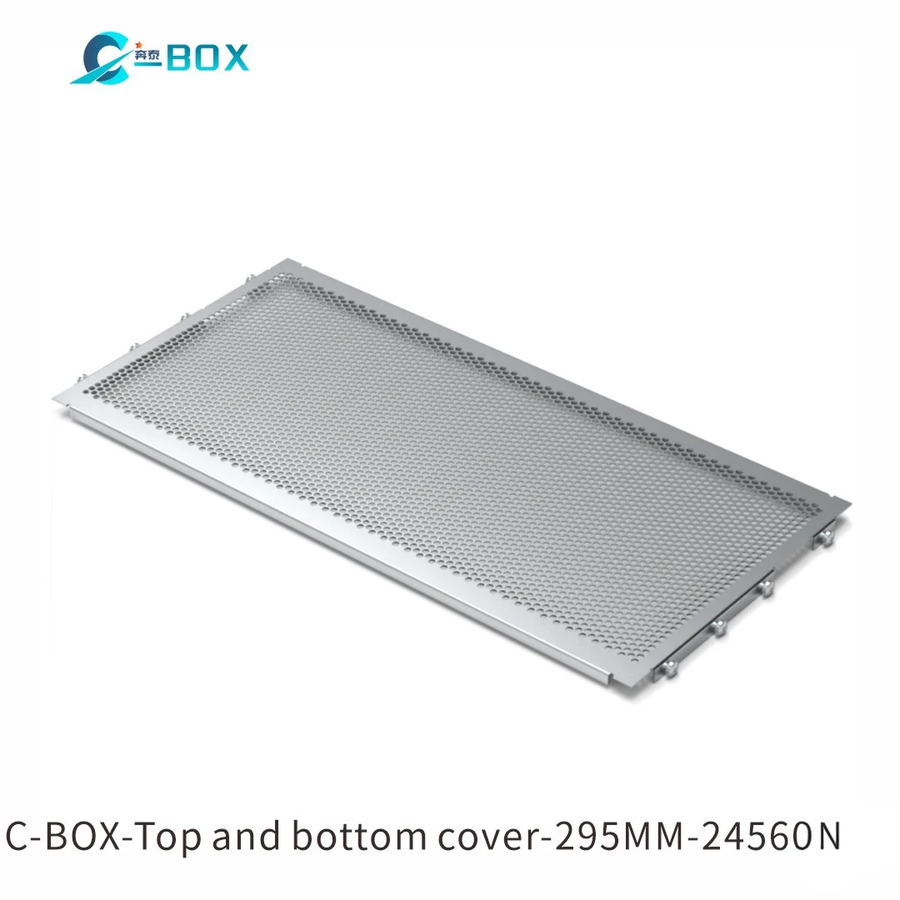

C-BOX EuropacPRO Cover Plate for Bolting to Side Panel, 84 HP, 175 mm, catalog number 24560-078

Features

Aluminum construction
Passivated finish
84HP rack width
Cover Plate
Type Perforated
Works with Subracks

Specifications

Catalog Number	24560-078
Rack Width	84HP
Material	Aluminum
Finish	Passivated
Product Type	Cover Plate
Type	Perforated
Product Family	EuropacPRO
Works With	Subracks
Package Quantity	2
Depth	175mm
Net Weight	0.34kg
Package Unit	Pair
Torque	2.1N·m

Item(s) Delivered

Top Cover, AI, 1.0 mm, hole diameter 4.0 mm, colourless chromated × 1
Bottom Cover, AI, 1.0 mm, hole diameter 4.0 mm, colourless chromated × 1
Screw Torx 4 × 6, St, zinc-plated × 16
