EuropacPRO 19" Subrack Kit for Backplane, Retrofit Shielding, 3 U, 175 mm

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

Non-shielded subrack for backplane mounting.

Catalog#: 24563-131

Request a Quote Download Catalog (PDF)

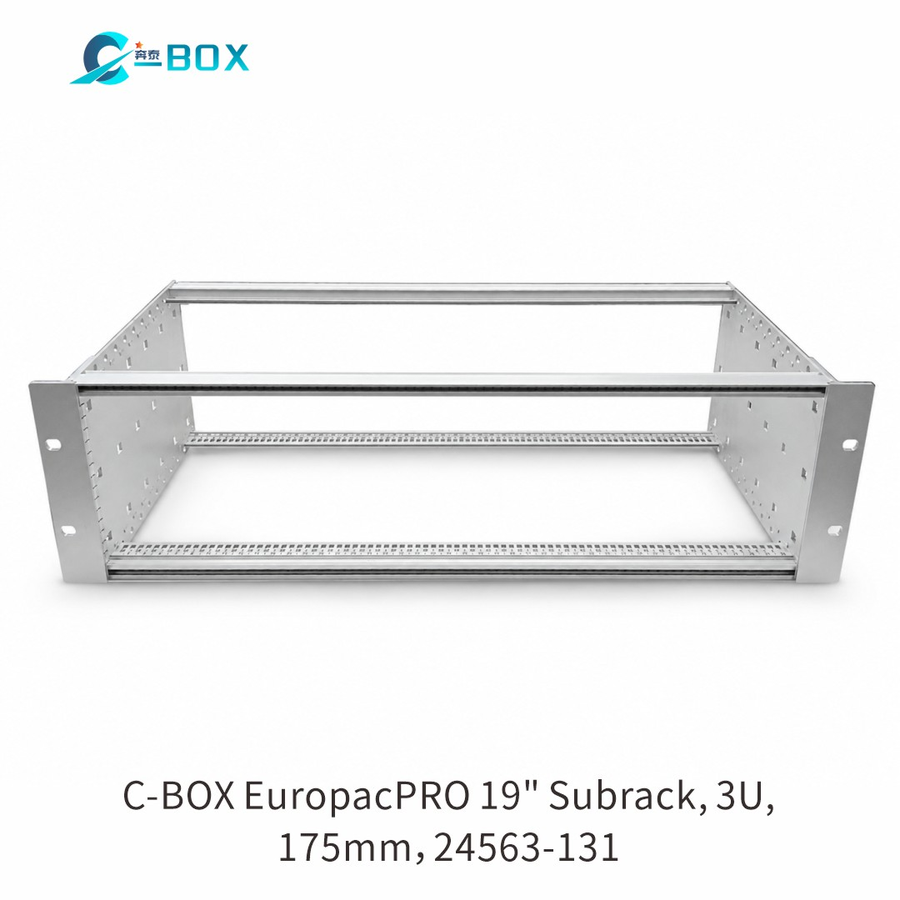

C-BOX EuropacPRO 19" Subrack Kit for Backplane, Retrofit Shielding, 3 U, 175 mm, catalog number 24563-131

Features

Aluminum construction
Anodized; Passivated finish
84HP rack width
3U rack height
Subrack/Chassis
Complies with IEC 60297-3-103

Specifications

Catalog Number	24563-131
Rack Width	84HP
Rack Height	3U
Material	Aluminum
Finish	Anodized; Passivated
Product Type	Subrack/Chassis
Complies With	IEC 60297-3-103
Static Load	11kg
Package Quantity	1
Depth	175mm
For Mounting	Backplane
Board Depth	160mm
Gasket Type	Stainless Steel EMC (retrofittable)
Handle Included	No
Mounting	Rack
EMC Shielding	No
Net Weight	1.08kg

Item(s) Delivered

19" support bracket for EMC sealing (stainless steel) × 2
Side panel type F × 2
Threaded insert (thread M2.5), pre-assembled in front and rear horizontal rail × 4
Insulation strip (pre-fitted) × 2
Assembly kit × 1
User manual × 1

Compatibility

This part is compatible with nVent SCHROFF 24563-131 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 24563-131 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 24563-131 or a compatible custom version? Send an RFQ — engineering response within one business day.
