Subrack Accessories · Handles

Printed Circuit Board Handle C

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

The PCB handle enables a user to extract a PCB without a front panel.

Catalog#: 24560-378

Request a Quote Download Catalog (PDF)

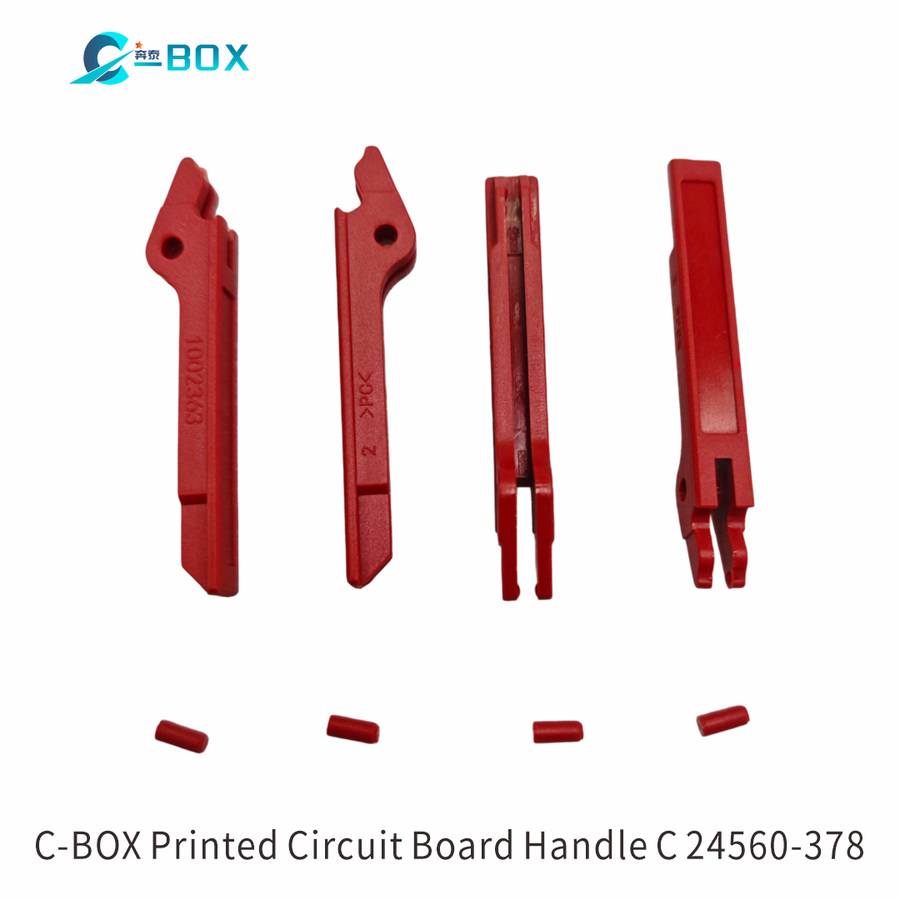

C-BOX Printed Circuit Board Handle C, catalog number 24560-378

Features

Polycarbonate construction
Colour: Red
Handle
Type Static
Board Locking handle
Works with Subracks; Cases

Specifications

Catalog Number	24560-378
Material	Polycarbonate
Color	Red
Product Type	Handle
Type	Static
Handle Type	Board Locking
Works With	Subracks; Cases
Flammability Rating	UL® 94V-0
Package Quantity	10
Net Weight	0.018kg

Related Handles

Catalog#: 20808-003

Static Handle Plastic in Trapezoid Form, Grey, 5 HP

Catalog#: 20808-004

Static Handle Plastic in Trapezoid Form, Grey, 10 HP

Catalog#: 20808-060

Static Handle Plastic in Trapezoid Form, Grey, 6 HP

Catalog#: 20808-061

Static Handle Plastic in Trapezoid Form, Grey, 7 HP

Catalog#: 20808-062

Static Handle Plastic in Trapezoid Form, Grey, 8 HP

Catalog#: 20808-063

Static Handle Plastic in Trapezoid Form, Grey, 9 HP

Catalog#: 20808-064

Static Handle Plastic in Trapezoid Form, Grey, 12 HP

Catalog#: 20808-065

Static Handle Plastic in Trapezoid Form, Grey, 14 HP

Compatibility

This part is compatible with nVent SCHROFF 24560-378 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 24560-378 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 24560-378 or a compatible custom version? Send an RFQ — engineering response within one business day.
