RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 3 U, 28 HP, 255 mm

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

Flexible and robust desktop enclosure for 19“ components or individual electronics assemblies.

Catalog#: 24571-702

Request a Quote Download Catalog (PDF)

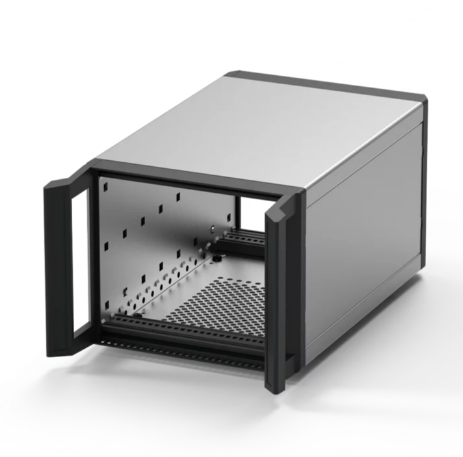

C-BOX RatiopacPRO 19" Case, Retrofittable Shielding With Handles, 3 U, 28 HP, 255 mm, catalog number 24571-702

Features

Aluminum construction
Passivated; Powder Coated finish
28HP rack width
3U rack height
Case
Type Case for Individual Electronic Components

Specifications

Catalog Number	24571-702
Rack Width	28HP
Rack Height	3U
Material	Aluminum
Finish	Passivated; Powder Coated
Product Type	Case
Type	Case for Individual Electronic Components
Compatible product families	RatiopacPRO
Complies With	IEC 60297-3-101; IEC 60297-3-102; IEEE 1101.1; IEEE 1101.10; IEEE 1101.11
Static Load	25kg
Package Quantity	1
Depth	255.5mm
Usable Height	112.3mm
Usable Width	148mm
Front Frame Construction	Handles; Horizontal Rails
Cooling Option	No
EMC Shielding	No (Retrofittable)
Height	132.6mm
Protection Rating	IP20
Width	164.4mm
Net Weight	1.56kg

Item(s) Delivered

Side panel, AI, 2 mm, passivated × 2
Top cover and base plate, Al, 1 mm, inner sides conductive, visible surfaces powder-coated, RAL 9006, with GND/earthing connections, base plate with honeycomb grid ventilation × 2
Case foot with anti-slip protection, UL 94 V‐0, PC black × 4
Fixing materials kit × 1
Side plate, Al, 1 mm, visible surfaces powder-coated, RAL 9006 × 2
Rear trim, Al die-cast, powder-coated, RAL 7016 × 2
Horizontal rail, type H-LD, Al, visible surfaces powder coated, RAL 7016, assembled on front side bottom, for IEEE application × 1
