RatiopacPRO AIR Complete Case, Desktop, Shielded, Front Trim, 3/4 U, 84 HP, 375 mm

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

Flexible and robust desktop enclosure with EMC shielding for 19“ components and is available with advanced cooling.

Catalog#: 24572-079

Request a Quote Download Catalog (PDF)

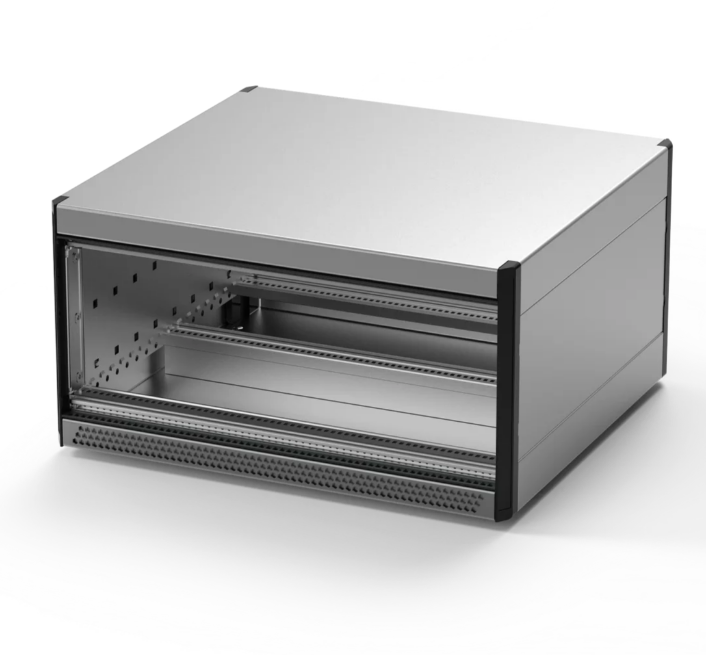

C-BOX RatiopacPRO AIR Complete Case, Desktop, Shielded, Front Trim, 3/4 U, 84 HP, 375 mm, catalog number 24572-079

Features

Aluminum construction
Passivated; Powder Coated finish
84HP rack width
3U rack height
Case
Type Case for 19" Components

Specifications

Catalog Number	24572-079
Rack Width	84HP
Rack Height	3U
Material	Aluminum
Finish	Passivated; Powder Coated
Product Type	Case
Type	Case for 19" Components
Compatible product families	RatiopacPRO AIR
Complies With	IEC 60297-3-101; IEC 60297-3-102; IEEE 1101.1; IEEE 1101.10; IEEE 1101.11
Static Load	25kg
Package Quantity	1
Depth	375.5mm
Usable Height	112.3mm
Usable Width	432mm
Front Frame Construction	Side Trim; Horizontal Rails
Cooling Option	Yes
EMC Shielding	Yes
Height	177mm
Protection Rating	IP20
Width	448.9mm
Net Weight	4.46kg

Item(s) Delivered

Side panel, AI, 2 mm, passivated × 2
Rear panel, Al, 2.5 mm × 1
Top cover and base plate with honeycomb grid ventilation, Al, 1 mm, internal surface conductive, visible surface RAL 9006, with GND/earthing connection × 2
Case foot with anti-slip protection, UL 94 V-0, PC, black × 4
Air filter × 2
EMC support profile for side panel, fitted (kit) × 1
EMC contact strip for cover plate, pre-mounted (kit) × 4
EMC contact strip front panel - horizontal rails × 4
Compartment seal, PE foam, self-adhesive, temperature range -20 °C ... +85 °C × 1
GND/earthing kit, assembly kit × 1
Side plate, Al, 1 mm, visible surface RAL 9006 × 2
Cover, die-cast zinc, RAL 7016, pre-mounted on EMC version only × 4
Horizontal rail, type H-LD, Al, visible surfaces powder coated, RAL 7016, assembled on front side bottom, for IEEE application × 1
Horizontal rail, centre (top/bottom), type H-ST, Al × 2
Horizontal rail, centre (on 6 U only), type ST, Al × 1
Threaded inserts, St, pre-mounted,for indirect backplane mounting with insulation strips × 6
Perforated strip, pre-mounted × 4
Insulation strip, PBT, UL 94 V-0 × 4

Compatibility

This part is compatible with nVent SCHROFF 24572-079 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 24572-079 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.
