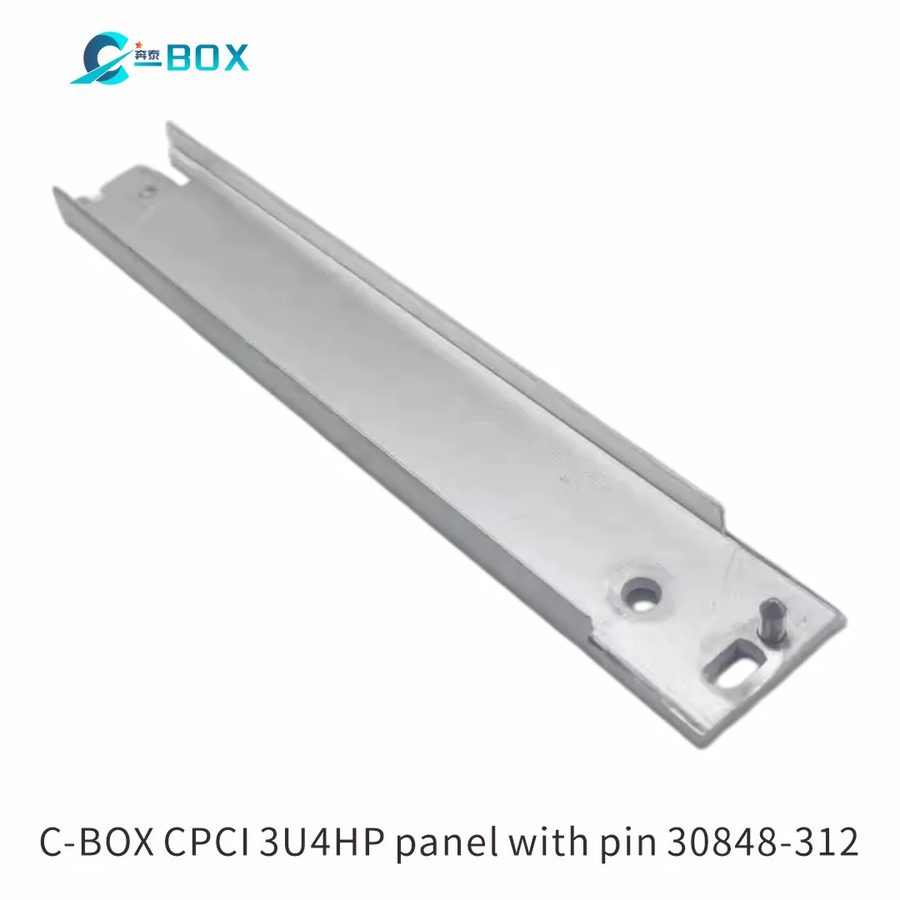

Plug-In Unit U-Profile Front Panel for IEL, IET, Type 2 Handle 3 U, 4 HP, 2.5 mm, Al, Front Anodized, Rear Conductive

Name: Plug-In Unit U-Profile Front Panel for IEL, IET, Type 2 Handle 3 U, 4 HP, 2.5 mm, Al, Front Anodized, Rear Conductive
Brand: C-BOX
SKU: 30848-312

U-Profile front panel can be shielded. It can be combined with the IEL and IET or the type 2 handle in trapezoid form.

Catalog#: 30848-312

Request a Quote Download Catalog (PDF)

Features

Aluminum construction
Anodized; Passivated finish
4HP rack width
3U rack height
Width 20mm
Height 115.2mm

Specifications

Catalog Number	30848-312
Rack Width	4HP
Rack Height	3U
Width (W)	20mm
Height (H)	115.2mm
Depth (D)	2.5mm
Material	Aluminum
Finish	Anodized; Passivated
Product Type	Front Panel
Type	Front Panel for Handle (PIU)
Handle Type	IEL; IET; Trapezoid, Type 2
Complies With	IEC 60297-3-102; IEEE 1101.10; IEC 60297-3-103; IEEE 1101.1/11
Package Quantity	1
Accessory Type	Front panel
Mounting	Screw-on Front
Gasket Type	Textile EMC
Front Finish	Anodized
Rear Finish	Conductive
Treated Edges	No
EMC Shielding	No (Retrofittable)
Net Weight	0.018kg

Related Handles

Catalog#: 20808-003

Static Handle Plastic in Trapezoid Form, Grey, 5 HP

Catalog#: 20808-004

Static Handle Plastic in Trapezoid Form, Grey, 10 HP

Catalog#: 20808-060

Static Handle Plastic in Trapezoid Form, Grey, 6 HP

Catalog#: 20808-061

Static Handle Plastic in Trapezoid Form, Grey, 7 HP

Catalog#: 20808-062

Static Handle Plastic in Trapezoid Form, Grey, 8 HP

Catalog#: 20808-063

Static Handle Plastic in Trapezoid Form, Grey, 9 HP

Catalog#: 20808-064

Static Handle Plastic in Trapezoid Form, Grey, 12 HP

Catalog#: 20808-065

Static Handle Plastic in Trapezoid Form, Grey, 14 HP

Compatibility with nVent SCHROFF 30848-312

This C-BOX part is compatible with nVent SCHROFF 30848-312 — same interface dimensions, our own tooling, material and finish. It is also a direct replacement for nVent SCHROFF 30848-312: a drop-in alternative for existing 30848-312 installations, no rework required.

Cross-reference: nVent SCHROFF 30848-312, nVent 30848-312, SCHROFF 30848-312 — matching C-BOX catalog number 30848-312. Same hole pattern, same panel cut-out, same thread.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.
