Subrack Accessories · Handles

Plug-In Unit U-Profile Front Panel for IEL, IET, Type 2 Handle, 3 U, 10 HP, 2.5 mm, Al, Front Anodized, Rear Conductive

U-Profile front panel can be shielded. It can be combined with the IEL and IET or the type 2 handle in trapezoid form.

Catalog#: 30848-315

Request a Quote Download Catalog (PDF)

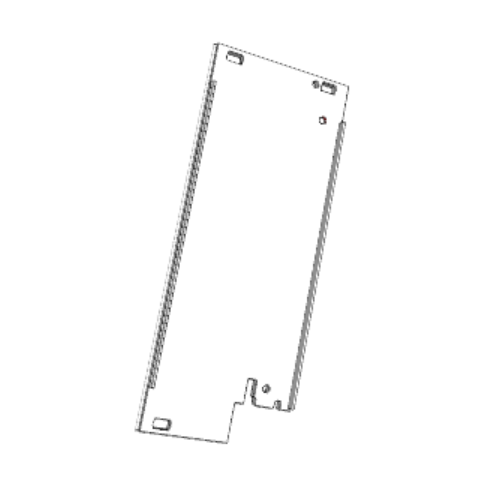

C-BOX Plug-In Unit U-Profile Front Panel for IEL, IET, Type 2 Handle, 3 U, 10 HP, 2.5 mm, Al, Front Anodized, Rear Conductive, catalog number 30848-315

Features

  • Aluminum construction
  • Anodized; Passivated finish
  • 10HP rack width
  • 3U rack height
  • Width 50.5mm
  • Height 128.4mm

Specifications

Catalog Number30848-315
Rack Width10HP
Rack Height3U
Width (W)50.5mm
Height (H)128.4mm
Depth (D)2.5mm
MaterialAluminum
FinishAnodized; Passivated
Product TypeFront Panel
TypeFront Panel for Handle (PIU)
Handle TypeIEL; IET; Trapezoid, Type 2
Complies WithIEC 60297-3-102; IEEE 1101.10; IEC 60297-3-103; IEEE 1101.1/11
Package Quantity1
Accessory TypeFront panel
MountingScrew-on Front
Gasket TypeTextile EMC
Front FinishAnodized
Rear FinishConductive
Treated EdgesNo
EMC ShieldingNo (Retrofittable)
Net Weight0.045kg

Item(s) Delivered

Related Handles

Catalog#: 20808-003
Static Handle Plastic in Trapezoid Form, Grey, 5 HP
Catalog#: 20808-004
Static Handle Plastic in Trapezoid Form, Grey, 10 HP
Catalog#: 20808-060
Static Handle Plastic in Trapezoid Form, Grey, 6 HP
Catalog#: 20808-061
Static Handle Plastic in Trapezoid Form, Grey, 7 HP
Catalog#: 20808-062
Static Handle Plastic in Trapezoid Form, Grey, 8 HP
Catalog#: 20808-063
Static Handle Plastic in Trapezoid Form, Grey, 9 HP
Catalog#: 20808-064
Static Handle Plastic in Trapezoid Form, Grey, 12 HP
Catalog#: 20808-065
Static Handle Plastic in Trapezoid Form, Grey, 14 HP

Compatibility

This part is compatible with nVent SCHROFF 30848-315 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 30848-315 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 30848-315 or a compatible custom version? Send an RFQ — engineering response within one business day.
