Home  ›  Products  ›  Subrack Accessories  ›  30848-330

Subrack Accessories · Handles

Plug-In Unit Front Panel, Unshielded, for IEL, IET, Type 2 Handle, 3 U, 7 HP, 2.5 mm, Al, Front Anodized, Rear Conductive

Flat front panel. Enables an assembly on IEL, IET or the type 2 handle in trapezoid form.

Catalog#: 30848-330

Request a Quote Download Catalog (PDF)

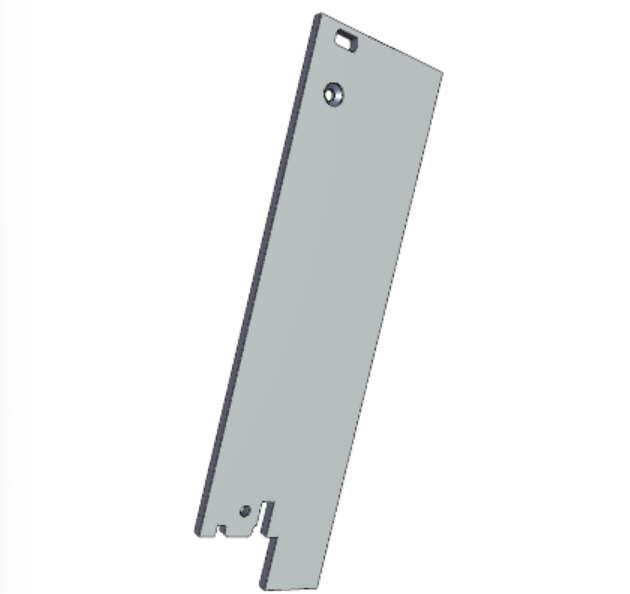

C-BOX Plug-In Unit Front Panel, Unshielded, for IEL, IET, Type 2 Handle, 3 U, 7 HP, 2.5 mm, Al, Front Anodized, Rear Conductive, catalog number 30848-330

Features

  • Aluminum construction
  • Anodized; Passivated finish
  • 7HP rack width
  • 3U rack height
  • Front Panel
  • Type Front Panel for Handle (PIU)

Specifications

Catalog Number30848-330
Rack Width7HP
Rack Height3U
MaterialAluminum
FinishAnodized; Passivated
Product TypeFront Panel
TypeFront Panel for Handle (PIU)
Handle TypeIEL; IET; Trapezoid, Type 2
Complies WithIEC 60297-3-101; IEEE 1101.1/11
Package Quantity1
Accessory TypeFront panel
MountingScrew-on Front
Front FinishAnodized
Rear FinishConductive
Treated EdgesNo
Depth2.5mm
EMC ShieldingNo
Height128.4mm
Width35.2mm
Net Weight0.028kg

Item(s) Delivered

Related Handles

Catalog#: 20808-003
Static Handle Plastic in Trapezoid Form, Grey, 5 HP
Catalog#: 20808-004
Static Handle Plastic in Trapezoid Form, Grey, 10 HP
Catalog#: 20808-060
Static Handle Plastic in Trapezoid Form, Grey, 6 HP
Catalog#: 20808-061
Static Handle Plastic in Trapezoid Form, Grey, 7 HP
Catalog#: 20808-062
Static Handle Plastic in Trapezoid Form, Grey, 8 HP
Catalog#: 20808-063
Static Handle Plastic in Trapezoid Form, Grey, 9 HP
Catalog#: 20808-064
Static Handle Plastic in Trapezoid Form, Grey, 12 HP
Catalog#: 20808-065
Static Handle Plastic in Trapezoid Form, Grey, 14 HP

Compatibility

This part is compatible with nVent SCHROFF 30848-330 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 30848-330 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.
