Subrack Accessories · Handles

Plug-In Unit, U-Profile Front Panel, for IEL, IET, Type 2 Handle, Shieldable, 3 U, 12 HP, Rear I/O, 2.5 mm, Al, Front Anodized, Rear Conductive

U-Profile front panel can be shielded. Enables an assembly on IEL, IET or the type 2 handle in trapezoid form. Rear I/O.

Catalog#: 30848-985

Request a Quote Download Catalog (PDF)

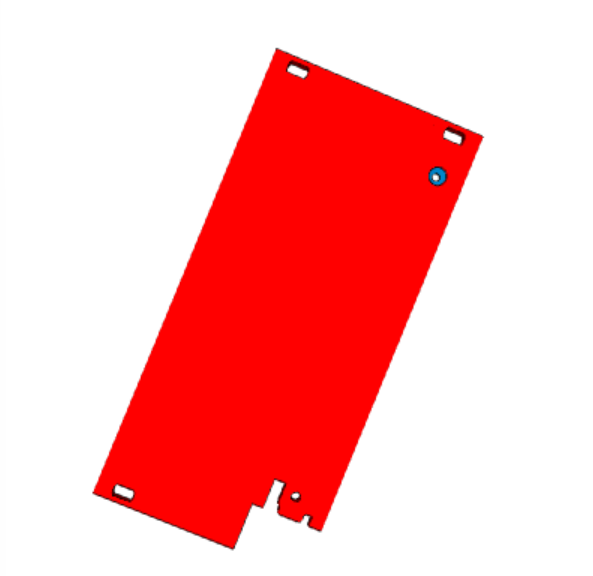

C-BOX Plug-In Unit, U-Profile Front Panel, for IEL, IET, Type 2 Handle, Shieldable, 3 U, 12 HP, Rear I/O, 2.5 mm, Al, Front Anodized, Rear Conductive, catalog number 30848-985

Features

  • Aluminum construction
  • Anodized; Passivated finish
  • 12HP rack width
  • 3U rack height
  • Width 60.6mm
  • Height 128.4mm

Specifications

Catalog Number30848-985
Rack Width12HP
Rack Height3U
Width (W)60.6mm
Height (H)128.4mm
Depth (D)2.5mm
MaterialAluminum
FinishAnodized; Passivated
Product TypeFront Panel
TypeFront Panel for Handle (PIU)
Handle TypeIEL; IET
Complies WithIEC 60297-3-102; IEEE 1101.10; IEC 60297-3-103; IEEE 1101.1/11
Package Quantity1
Gross Weight0.056kg
Accessory TypeFront panel
MountingScrew-on Rear IO
Gasket TypeTextile EMC
Front FinishAnodized
Rear FinishConductive
Treated EdgesNo
EMC ShieldingNo (Retrofittable)

Item(s) Delivered

Related Handles

Catalog#: 20808-003
Static Handle Plastic in Trapezoid Form, Grey, 5 HP
Catalog#: 20808-004
Static Handle Plastic in Trapezoid Form, Grey, 10 HP
Catalog#: 20808-060
Static Handle Plastic in Trapezoid Form, Grey, 6 HP
Catalog#: 20808-061
Static Handle Plastic in Trapezoid Form, Grey, 7 HP
Catalog#: 20808-062
Static Handle Plastic in Trapezoid Form, Grey, 8 HP
Catalog#: 20808-063
Static Handle Plastic in Trapezoid Form, Grey, 9 HP
Catalog#: 20808-064
Static Handle Plastic in Trapezoid Form, Grey, 12 HP
Catalog#: 20808-065
Static Handle Plastic in Trapezoid Form, Grey, 14 HP

Compatibility

This part is compatible with nVent SCHROFF 30848-985 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 30848-985 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.
