Coding Key Pin, IEL/IET Handle & IEEE Rail

Name: Coding Key Pin, IEL/IET Handle & IEEE Rail
Brand: C-BOX
SKU: 60817-381
Availability: InStock

Coding key pin that locks the IEL/IET extractor handle to the IEEE guide rail — prevents wrong-board insertion.

Catalog#: 60817-381

Request a Quote Download Catalog (PDF)

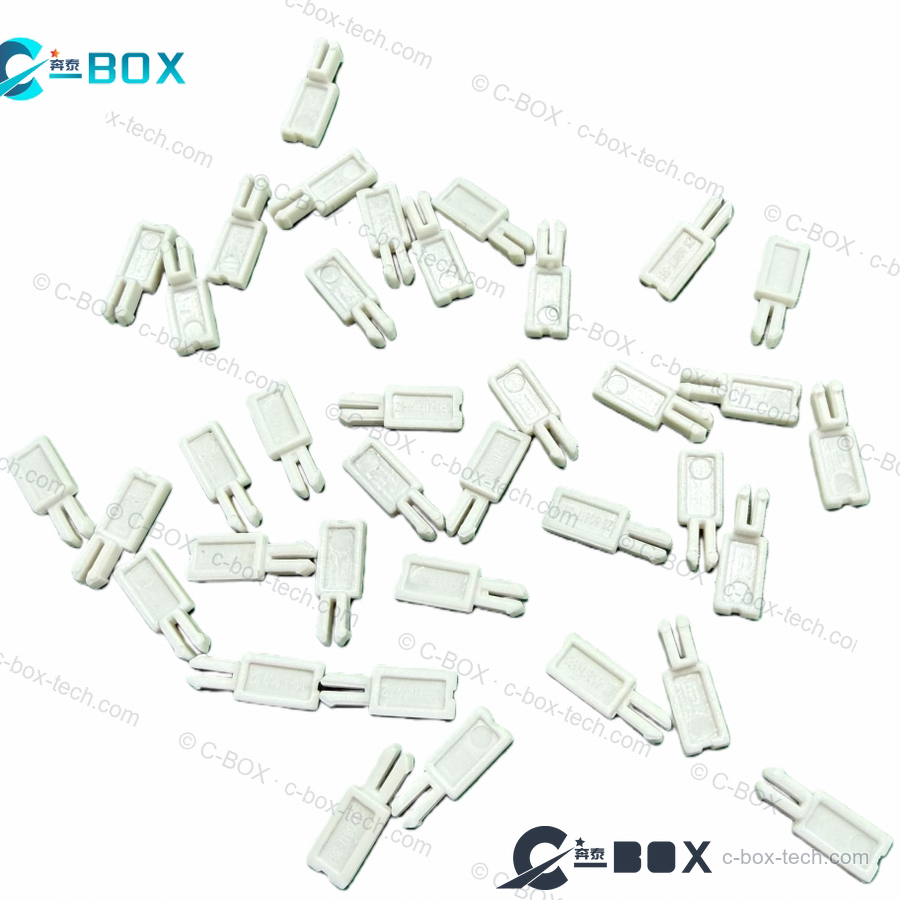

C-BOX Coding Key Pin, IEL/IET Handle & IEEE Rail, catalog number 60817-381

Features

Coding key pin
For IEL/IET handles and IEEE guide rails
Prevents wrong-board insertion
Domestic C-BOX code

Specifications

Catalog Number	60817-381
Complies With	IEC 60297-3-101; IEEE 1101.10/11
Product Type	Coding Key Pin
Fits	IEL/IET handle; IEEE guide rail
Function	Mis-insertion protection

Related Extractor Handles

Catalog#: 20817-501

Keying/Coding

Catalog#: 60817-129

Extractor Handle, Trapezoid, Type 1, Top, Grey

Catalog#: 60817-130

Extractor Handle, Trapezoid, Type 1, Top, Black

Catalog#: 60817-134

Extractor Handle, Trapezoid, Type 1, Bottom, Grey

Catalog#: 60817-135

Extractor Handle, Trapezoid, Type 1, Bottom, Black

Compatibility with nVent SCHROFF 20817-501 (C-BOX 60817-381)

60817-381 is C-BOX's domestic catalog number for this part — it is compatible with nVent SCHROFF 20817-501 (same interface dimensions, our own tooling, material and finish) and a direct replacement for nVent SCHROFF 20817-501.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 60817-381 or a compatible custom version? Send an RFQ — engineering response within one business day.
