PXIe product line · desktop model
A compact benchtop PXIe platform: a 3 U card cage with eight instrument slots plus a red-marked system slot in a 4 U / 52 HP aluminum frame — a self-developed C-BOX model. Photo gallery below, with the full subtitled video walkthrough.
This desktop PXIe chassis packs eight instrument PXIe slots plus the system slot into a benchtop-friendly 4 U / 52 HP aluminum extrusion frame. The 3 U card cage keeps standard 3 U PXIe modules, while 0.5 U air ducts above and below feed a top-inlet, rear-exhaust airflow driven by three 80 mm low-noise fans (up to 2,500 rpm). A 600 W industrial AC power supply accepts a 100–240 V wide-range input, and the rear panel carries a 10 MHz reference clock input and output plus DB9 voltage-monitoring and fan-control ports, so the chassis can be synchronized with auxiliary instruments. The aluminum frame supports rack mounting and protects the PXI modules in transport and daily use.
| Format | 8-slot PXIe desktop, 4U / 52HP |
| Card cage | 3U modules · 0.5U air duct above / below |
| Slots | 8 instrument slots — 1 timing & trigger · 7 hybrid (PCIe 3.0 x8, 4 GB/s) — plus red-marked system slot (PCIe 3.0 x16, 2-link) |
| Power | 600 W industrial AC PSU, 100–240 V input, ±5 V / ±12 V / 3.3 V · ATX 24-pin + 8-pin |
| Cooling | 3 × 80 mm fans, up to 2,500 rpm, top-in / rear-out |
| Clock | 10 MHz reference clock input & output |

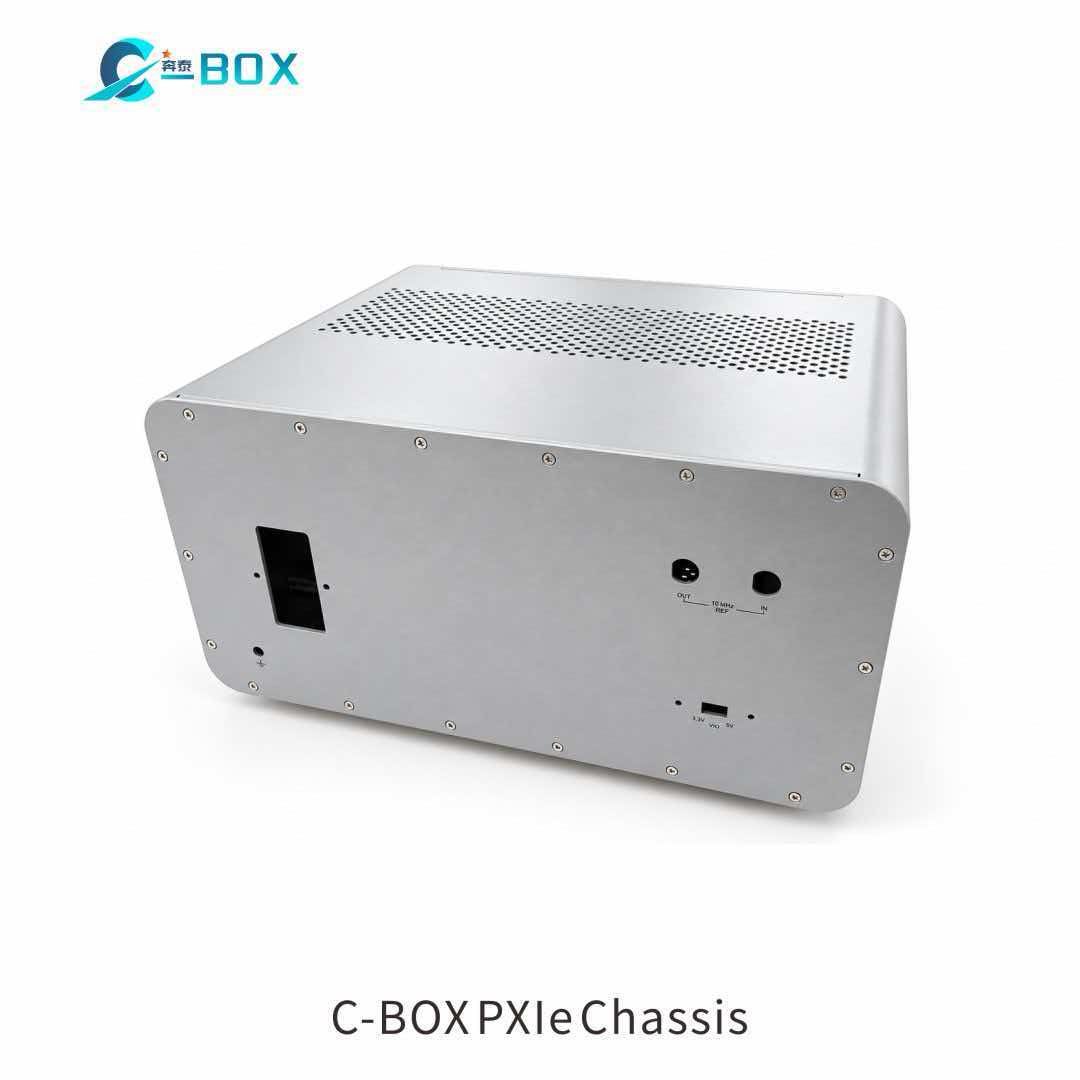

| Rear panel | DB9 voltage monitor · DB9 fan control · AC inlet · mode switch |
| Construction | aluminum extrusion frame, rack-mountable |
Photo gallery

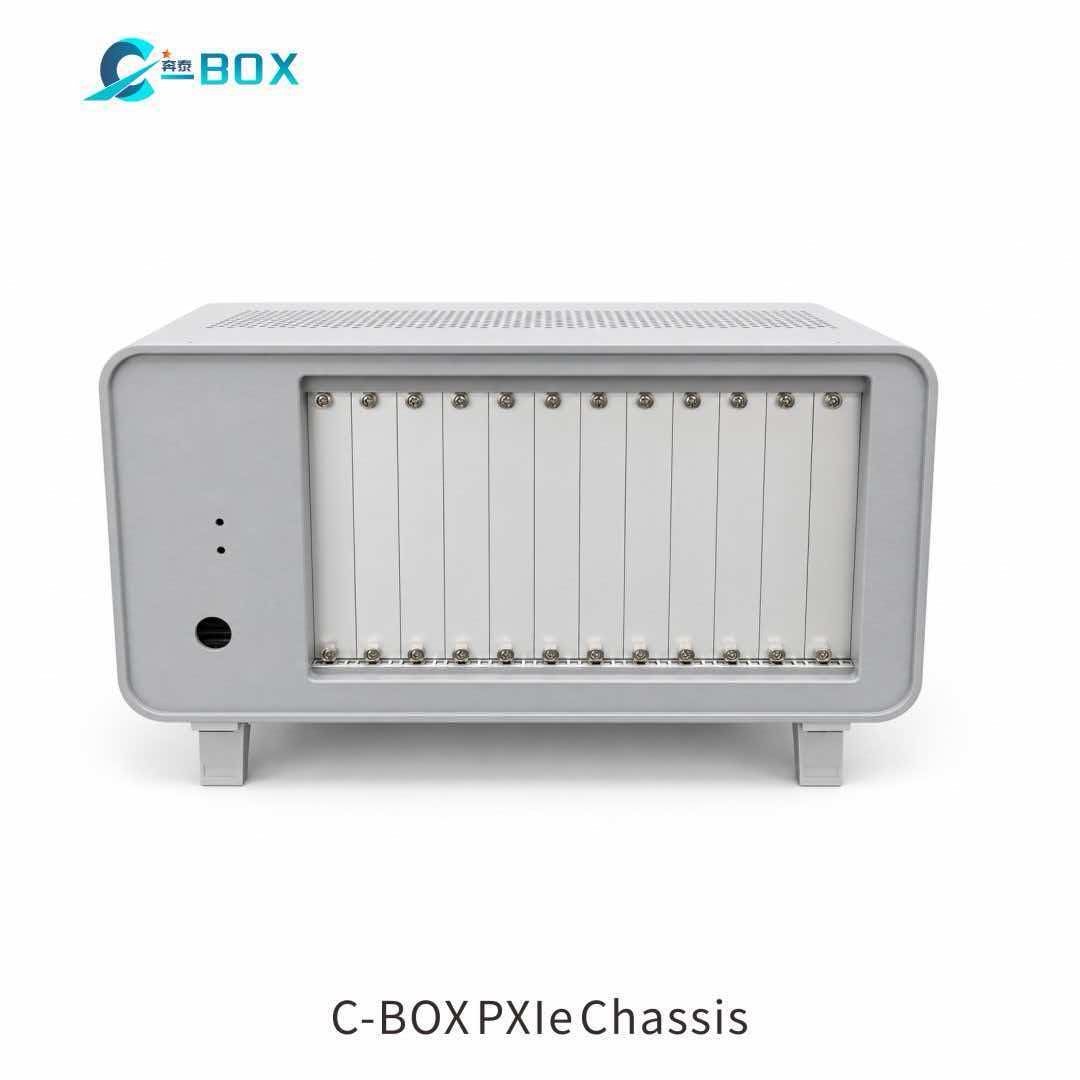

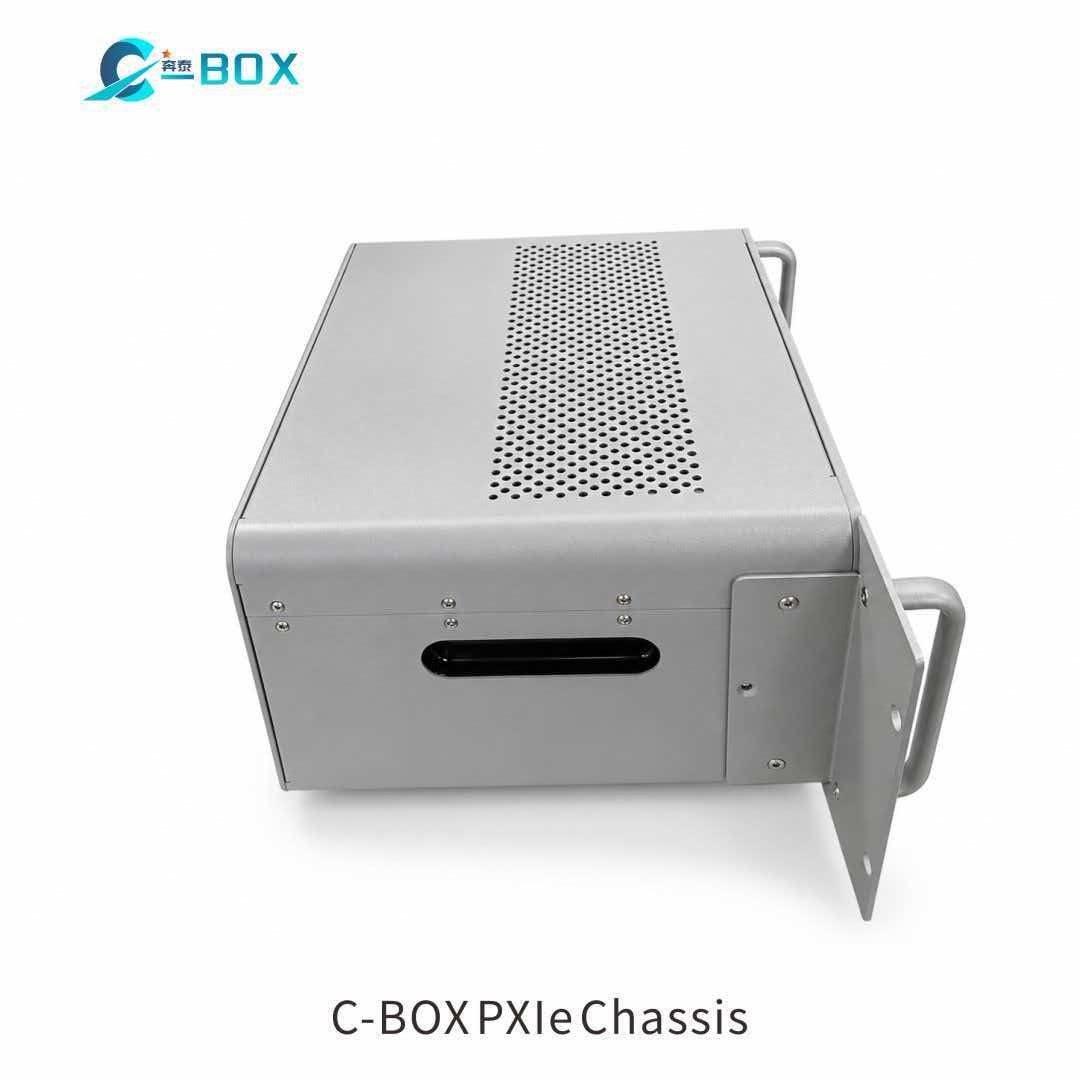

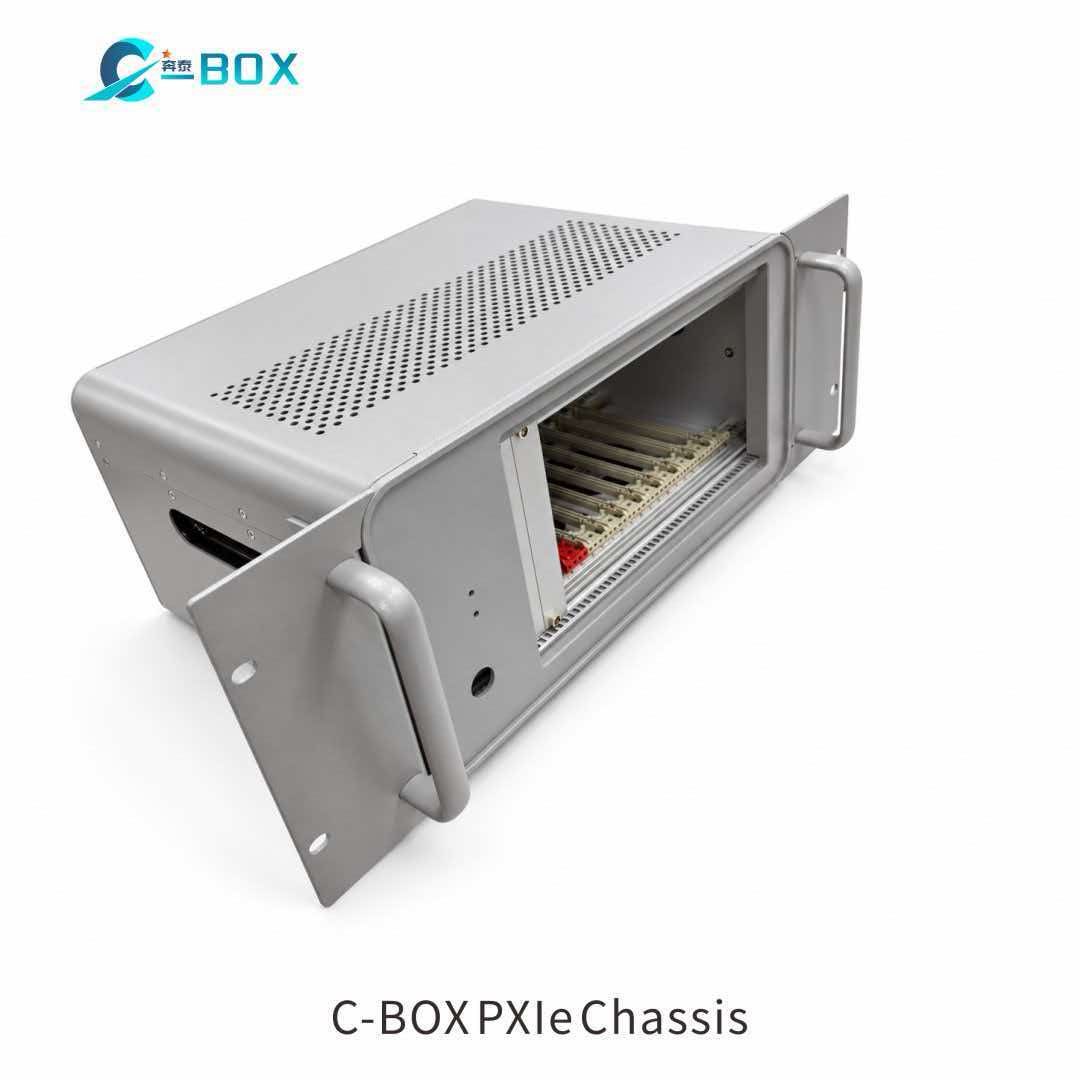

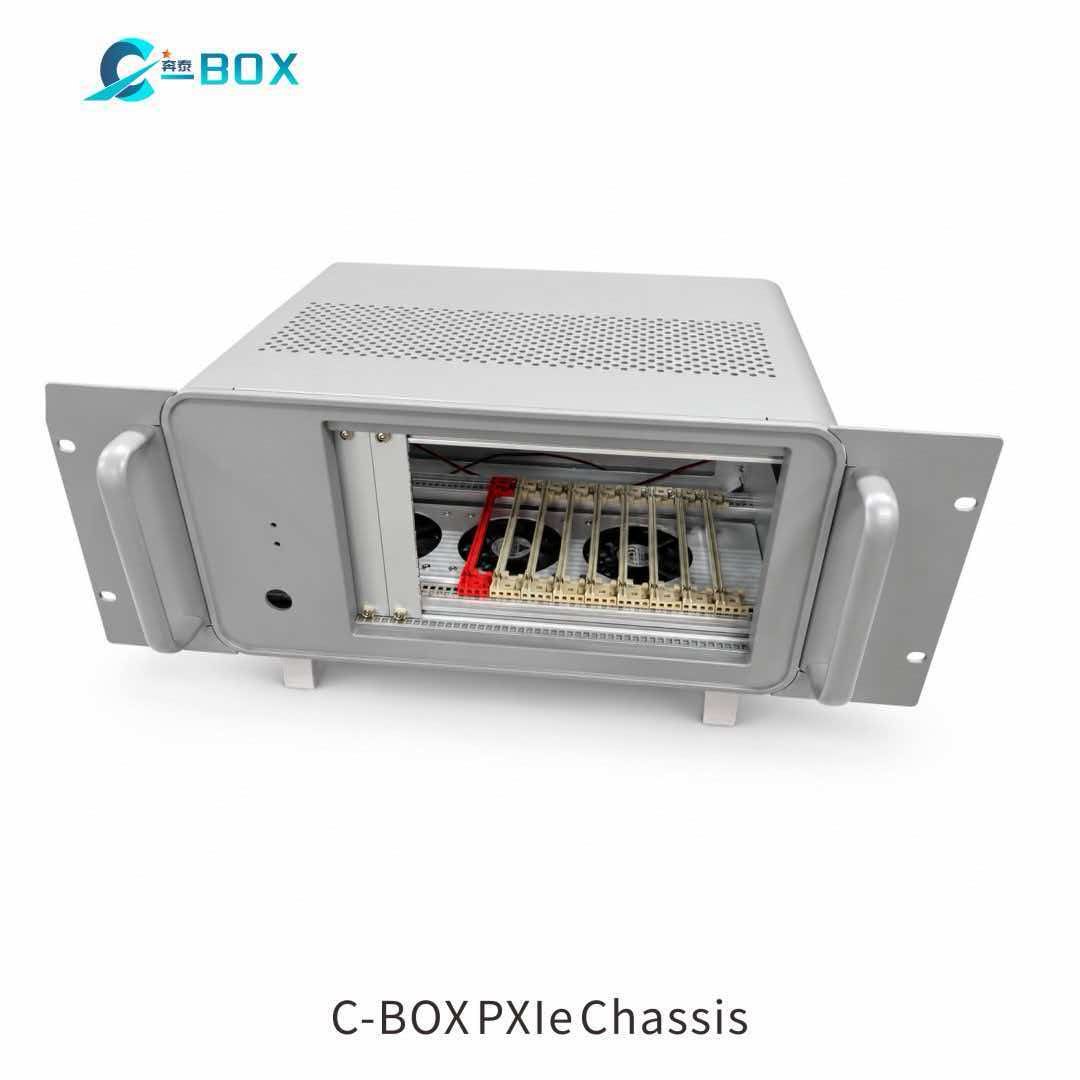

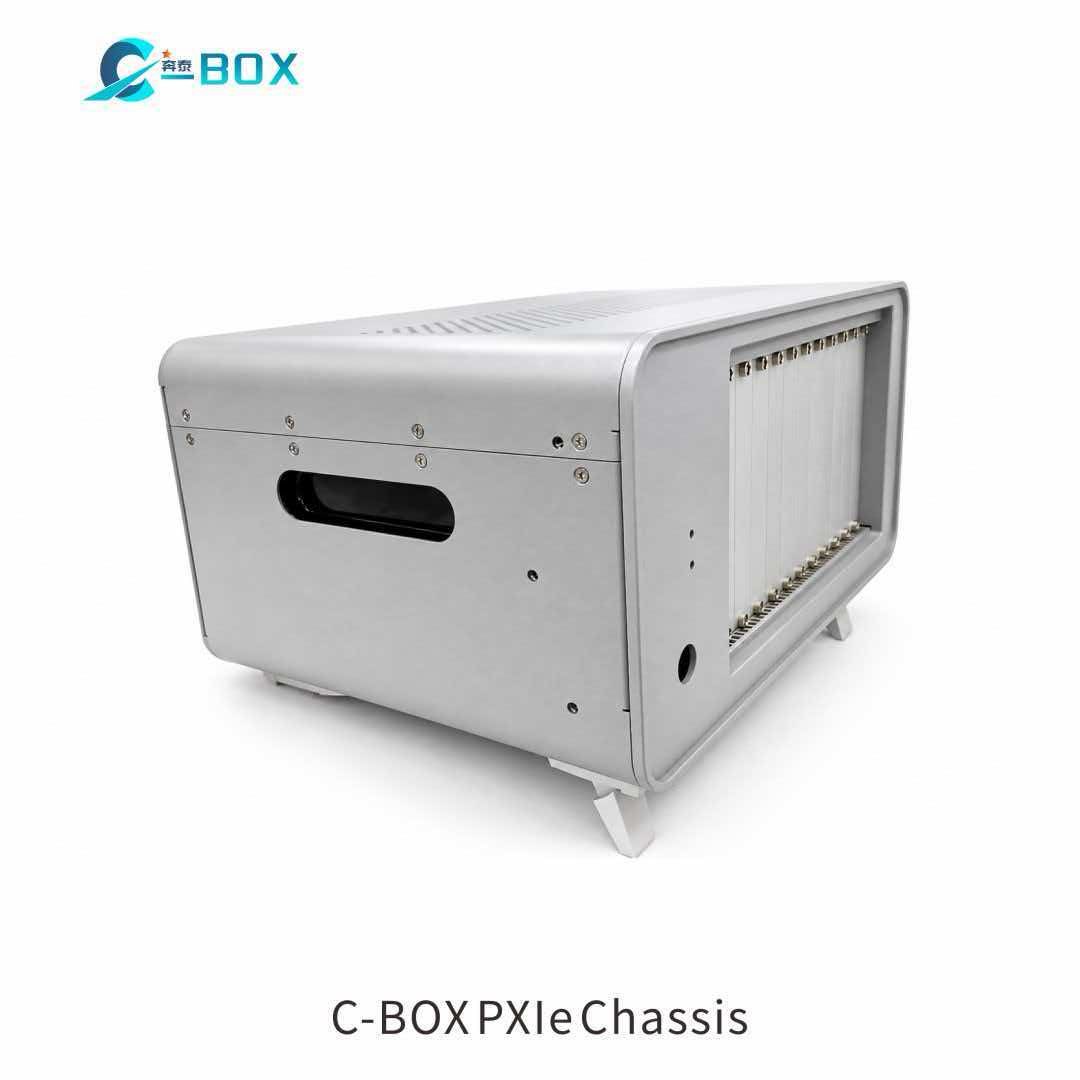

Workshop photos of the current production unit: aluminum extrusion frame, carrying handles, rack-mount flange and the 3 U card cage with three 80 mm fans.
A guided tour by our engineer: power system, cooling, slot layout, backplane signaling and the rear panel, step by step.
C-BOX 8-slot PXIe desktop chassis — narrated in Chinese, English subtitles (4 min)
Slot layout, guide rails and panel machining are specified per project — we quote within 24 hours.
