Plug-In Unit Kit With IEL Handle, Shielded, Black 3 U, 6 HP

Name: Plug-In Unit Kit With IEL Handle, Shielded, Black 3 U, 6 HP
Brand: C-BOX
SKU: 20848-587

Plug-in unit, with IEL inserter/extractor black handle, 3 U, front assembly.

Catalog#: 20848-587

Request a Quote Download Catalog (PDF)

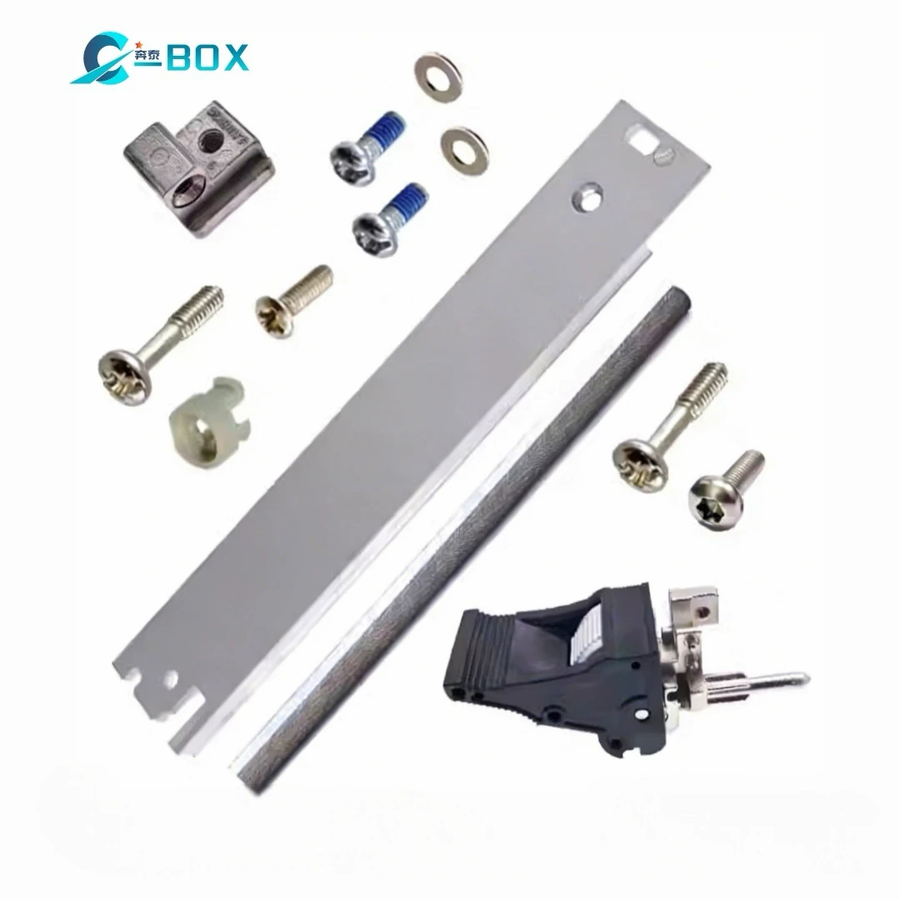

C-BOX Plug-In Unit Kit With IEL Handle, Shielded, Black 3 U, 6 HP, catalog number 20848-587

Features

Aluminum construction
Anodized; Passivated finish
6HP rack width
3U rack height
Width 30.1mm
Height 128.4mm

Specifications

Catalog Number	20848-587
Rack Width	6HP
Rack Height	3U
Width (W)	30.1mm
Height (H)	128.4mm
Material	Aluminum
Finish	Anodized; Passivated
Product Type	Front Panel
Type	Front Panel with Handle (PIU)
Handle Type	IEL
Complies With	IEC 60297-3-102; IEEE 1101.10; IEC 60297-3-103; IEEE 1101.1/11
Package Quantity	1
Mounting	Screw-on Front
Gasket Type	Textile EMC
Front Finish	Anodized
Rear Finish	Etched
Treated Edges	No
EMC Shielding	Yes

Item(s) Delivered

Front panel (U profile), AI, front anodised, rear conductive × 1
Panhead screw with Torx, M2.5 × 7, St, nickel-plated × 1
EMC sealing (textile),Core: foam, Sleeve: textile cladding, CuNi coated × 1
Handle with integrated alignment pin for perforated strip and guide rails, lever: plastic, PC, black, RAL 9005 Key: Plastic, PC, light grey, RAL 7035 × 1
Board support, die-cast zinc × 1
Raised Pozidrive countersunk screw M2.5 × 8, St, nickel-plated × 1
Sleeve, PA, grey × 1
Pozidrive collar screw, M2.5 × 12.3, St, nickel-plated × 2
Panhead screw with Torx/slot, M2.5 × 6, St, zinc-plated, self-locking × 2
Washer A2.7, DIN 125, St, nickel-plated × 2

Related Handles

Catalog#: 20808-003

Static Handle Plastic in Trapezoid Form, Grey, 5 HP

Catalog#: 20808-004

Static Handle Plastic in Trapezoid Form, Grey, 10 HP

Catalog#: 20808-060

Static Handle Plastic in Trapezoid Form, Grey, 6 HP

Catalog#: 20808-061

Static Handle Plastic in Trapezoid Form, Grey, 7 HP

Catalog#: 20808-062

Static Handle Plastic in Trapezoid Form, Grey, 8 HP

Catalog#: 20808-063

Static Handle Plastic in Trapezoid Form, Grey, 9 HP

Catalog#: 20808-064

Static Handle Plastic in Trapezoid Form, Grey, 12 HP

Catalog#: 20808-065

Static Handle Plastic in Trapezoid Form, Grey, 14 HP

Compatibility with nVent SCHROFF 20848-587

This C-BOX part is compatible with nVent SCHROFF 20848-587 — same interface dimensions, our own tooling, material and finish. It is also a direct replacement for nVent SCHROFF 20848-587: a drop-in alternative for existing 20848-587 installations, no rework required.

Cross-reference: nVent SCHROFF 20848-587, nVent 20848-587, SCHROFF 20848-587 — matching C-BOX catalog number 20848-587. Same hole pattern, same panel cut-out, same thread.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.
