Plug-In Unit Kit With IEL Handle, Shielded, Black 3 U, 8 HP

Name: Plug-In Unit Kit With IEL Handle, Shielded, Black 3 U, 8 HP
Brand: C-BOX
SKU: 20848-589

Plug-in unit, with IEL inserter/extractor black handle, 3 U, front assembly.

Catalog#: 20848-589

Request a Quote Download Catalog (PDF)

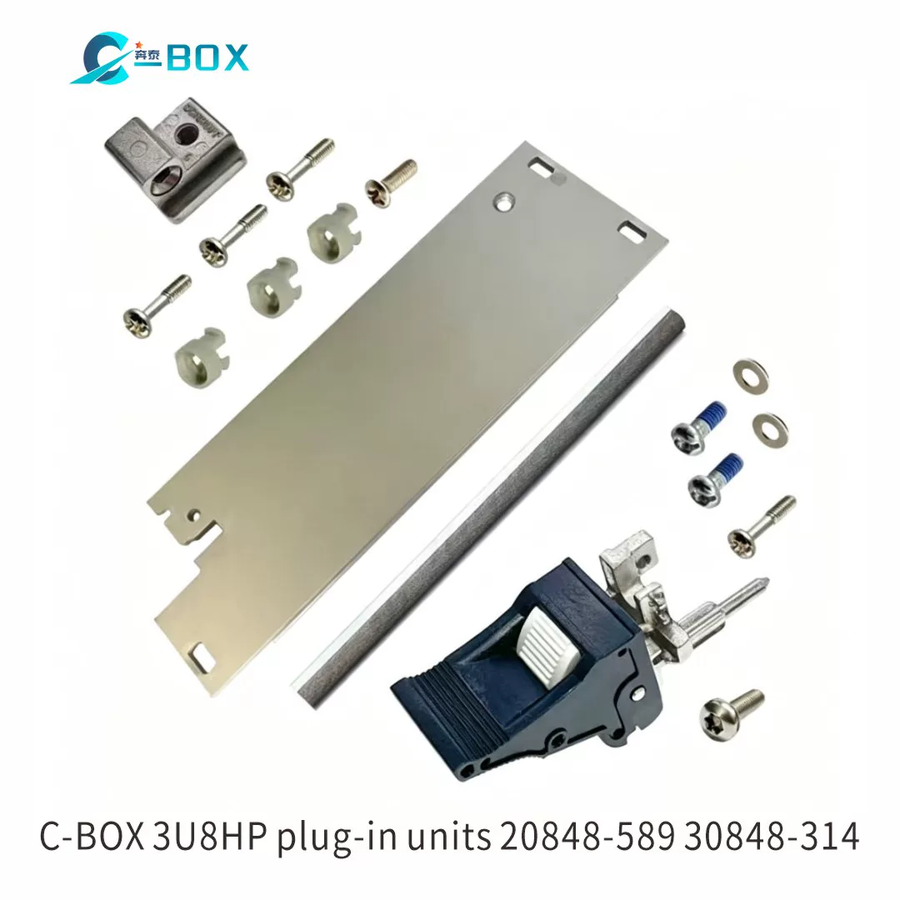

C-BOX Plug-In Unit Kit With IEL Handle, Shielded, Black 3 U, 8 HP, catalog number 20848-589

Features

Aluminum construction
Anodized; Passivated finish
8HP rack width
3U rack height
Width 40.3mm
Height 128.4mm

Specifications

Catalog Number	20848-589
Rack Width	8HP
Rack Height	3U
Width (W)	40.3mm
Height (H)	128.4mm
Material	Aluminum
Finish	Anodized; Passivated
Product Type	Front Panel
Type	Front Panel with Handle (PIU)
Handle Type	IEL
Complies With	IEC 60297-3-102; IEEE 1101.10; IEC 60297-3-103; IEEE 1101.1/11
Package Quantity	1
Mounting	Screw-on Front
Gasket Type	Textile EMC
Front Finish	Anodized
Rear Finish	Etched
Treated Edges	No
EMC Shielding	Yes
Net Weight	0.1kg

Item(s) Delivered

Front panel (U profile), AI, front anodized, rear conductive × 1
Panhead screw with Torx, M2.5 × 7, St, nickel-plated × 1
EMC sealing (textile), core: foam, sleeve: textile cladding, CuNi coated × 1
Handle with integrated alignment pin for perforated strips and guide rails, lever: plastic, PC, black, RAL 9005 Key: Plastic, PC, light grey, RAL 7035 × 1
Board support, die-cast zinc × 1
Raised Pozidrive countersunk screw M2.5 × 8, St, nickel-plated × 1
Sleeve, PA, grey × 3
Pozidrive collar screw, M2.5 × 12.3, St, nickel-plated × 4
Panhead screw with Torx/slot, M2.5 × 6, St, zinc-plated, selflocking × 2
Washer A2.7, DIN 125, St, nickel-plated × 2
