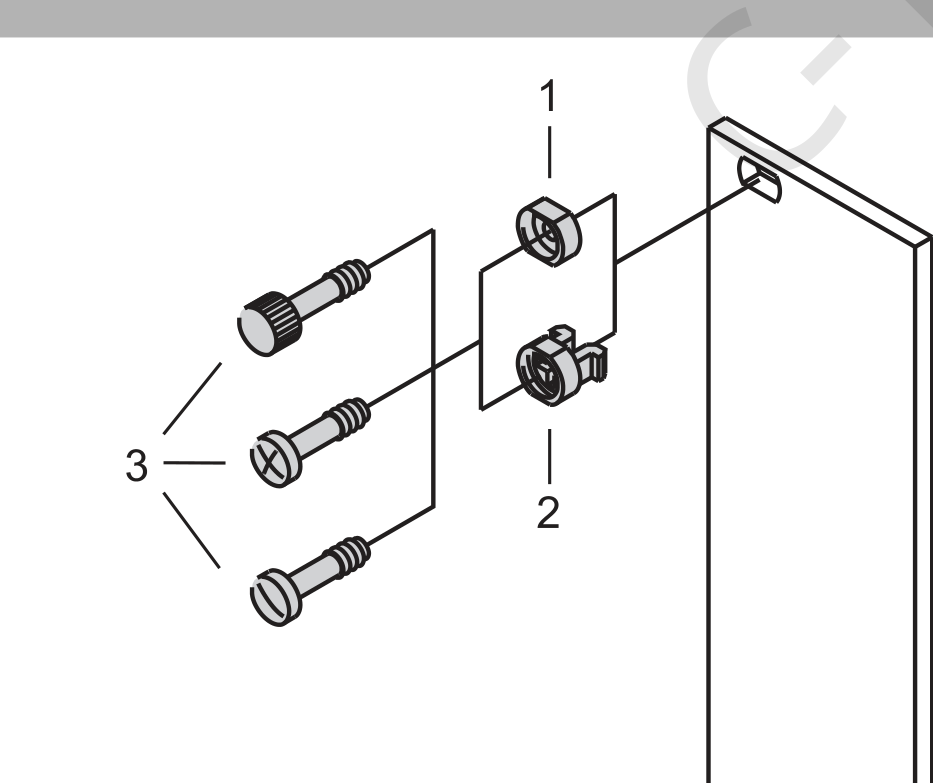

Sleeve, Plastic PA, Grey, for Form Hole 5.9 × 3.3

Press-in plastic sleeve (polyamide, grey) for form hole 5.9 × 3.3 mm front panels — accepts M2.5 collar screws for fixing front panels and PCBs.

Catalog#: 21100-464

Request a Quote Download Catalog (PDF)

C-BOX Sleeve, Plastic PA, Grey, for Form Hole 5.9 × 3.3, catalog number 21100-464

Features

Plastic (PA), grey
For form hole 5.9 × 3.3 mm
Press-in mounting in front panels
Use with collar panhead screw 21101-101 (M2.5 × 12.3)
Supplied in packs of 100 pieces
Does not fit 2 HP wide front panels

Specifications

Catalog Number	21100-464
Product Type	Sleeve
Material	Plastic (PA), grey
For Form Hole	5.9 × 3.3 mm
Pack Quantity	100 pieces
MOQ	1000 pcs
