Sleeve, Brass Nickel-Plated, Press-In, for Form Hole 5.9 × 3.3

Name: Subracks & 19″ Chassis
Brand: C-BOX

Press-in metal sleeve (brass, nickel-plated) for form hole 5.9 × 3.3 mm front panels — conductive option for EMC-critical front panel fixing; accepts M2.5 collar screws.

Catalog#: 21100-660

Request a Quote Download Catalog (PDF)

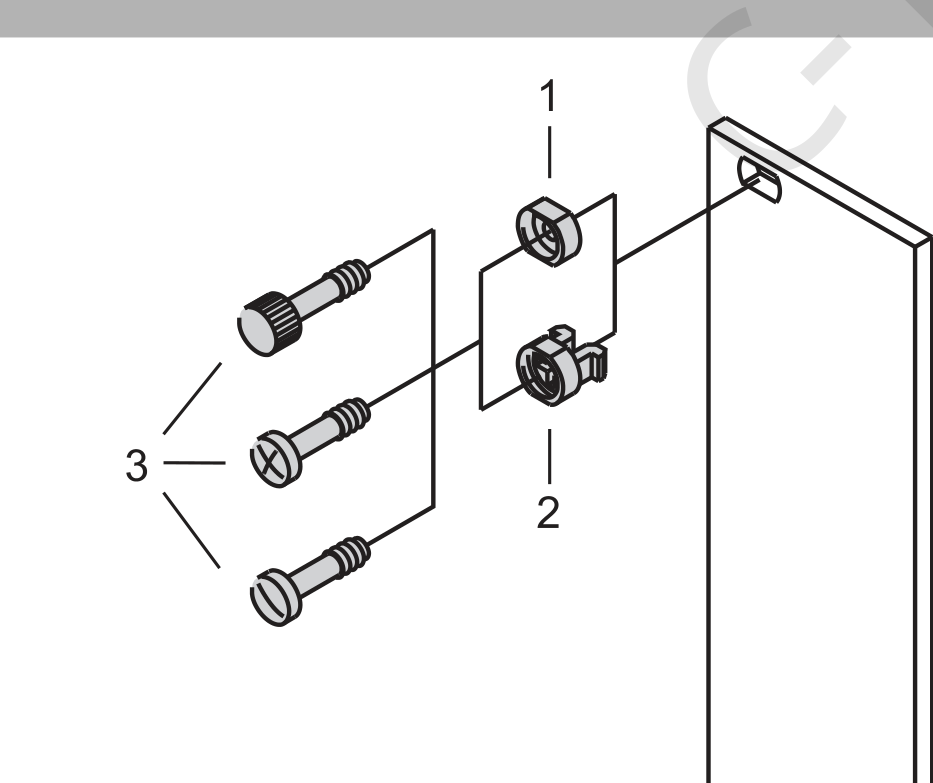

C-BOX Sleeve, Brass Nickel-Plated, Press-In, for Form Hole 5.9 × 3.3, catalog number 21100-660

Features

Brass, nickel-plated
For form hole 5.9 × 3.3 mm
Press-in mounting in front panels
Use with collar panhead screw 21101-101 (M2.5 × 12.3)
Supplied in packs of 100 pieces
Metal sleeves must be pressed in — plastic version 21100-464 also available

Specifications

Catalog Number	21100-660
Product Type	Sleeve
Material	Brass, nickel-plated
For Form Hole	5.9 × 3.3 mm
Pack Quantity	100 pieces
MOQ	1000 pcs
