RatiopacPRO AIR 19" Case, Retrofittable Shielding With Handles, 6/7 U, 84 HP, 315 mm

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

Flexible and robust enclosure for 19“ components or electronics assemblies and is available with advanced cooling.

Catalog#: 24571-981

Request a Quote Download Catalog (PDF)

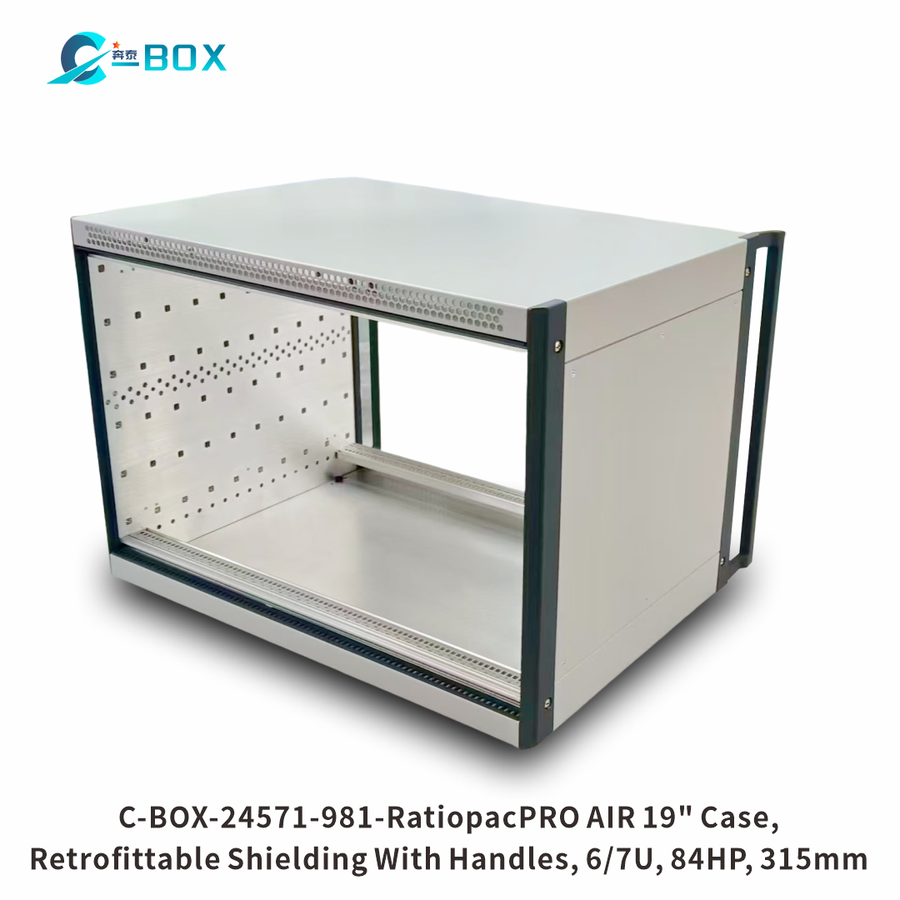

C-BOX RatiopacPRO AIR 19" Case, Retrofittable Shielding With Handles, 6/7 U, 84 HP, 315 mm, catalog number 24571-981

Features

Aluminum construction
Passivated; Powder Coated finish
84HP rack width
6U rack height
Case
Type Case for Individual Electronic Components

Specifications

Catalog Number	24571-981
Rack Width	84HP
Rack Height	6U
Material	Aluminum
Finish	Passivated; Powder Coated
Product Type	Case
Type	Case for Individual Electronic Components
Compatible product families	RatiopacPRO AIR
Complies With	IEC 60297-3-101; IEC 60297-3-102; IEEE 1101.1; IEEE 1101.10; IEEE 1101.11
Static Load	25kg
Package Quantity	1
Depth	315.5mm
Usable Height	245.7mm
Usable Width	432mm
Front Frame Construction	Handles; Horizontal Rails
Cooling Option	Yes
EMC Shielding	No (Retrofittable)
Height	310.35mm
Protection Rating	IP20
Width	448.9mm
Net Weight	4kg

Item(s) Delivered

Side panel, AI, 2 mm, passivated × 2
1 Top cover and base plate, Al, 1 mm, internal surfaces conductive,visible surfaces powder-coated, RAL 9006, with GND/earthing connection, top cover and base plate with ventilation comb × 2
Case foot with anti-slip protection, UL 94 V-0, PC black × 4
Air filters × 2
Fixing materials kit × 1
Side plate, Al, 1 mm, visible surfaces powder-coated, RAL 9006 × 2
Rear trim, Al die-cast, powder-coated, RAL 7016 × 2
Horizontal rail, type H-LD, Al, visible surfaces powder coated, RAL 7016, assembled on front side top and bottom, for IEEE application × 2
