RatiopacPRO, Complete Case, Desktop, Retrofittable Shielding, Front Trim, 3 U, 42 HP, 315 mm

Name: RatiopacPRO, Complete Case, Desktop, Retrofittable Shielding, Front Trim, 3 U, 42 HP, 315 mm
Brand: C-BOX
SKU: 24572-003

Flexible and robust desktop enclosure for 19“ components, with a wide range of accessories.

Catalog#: 24572-003

Request a Quote Download Catalog (PDF)

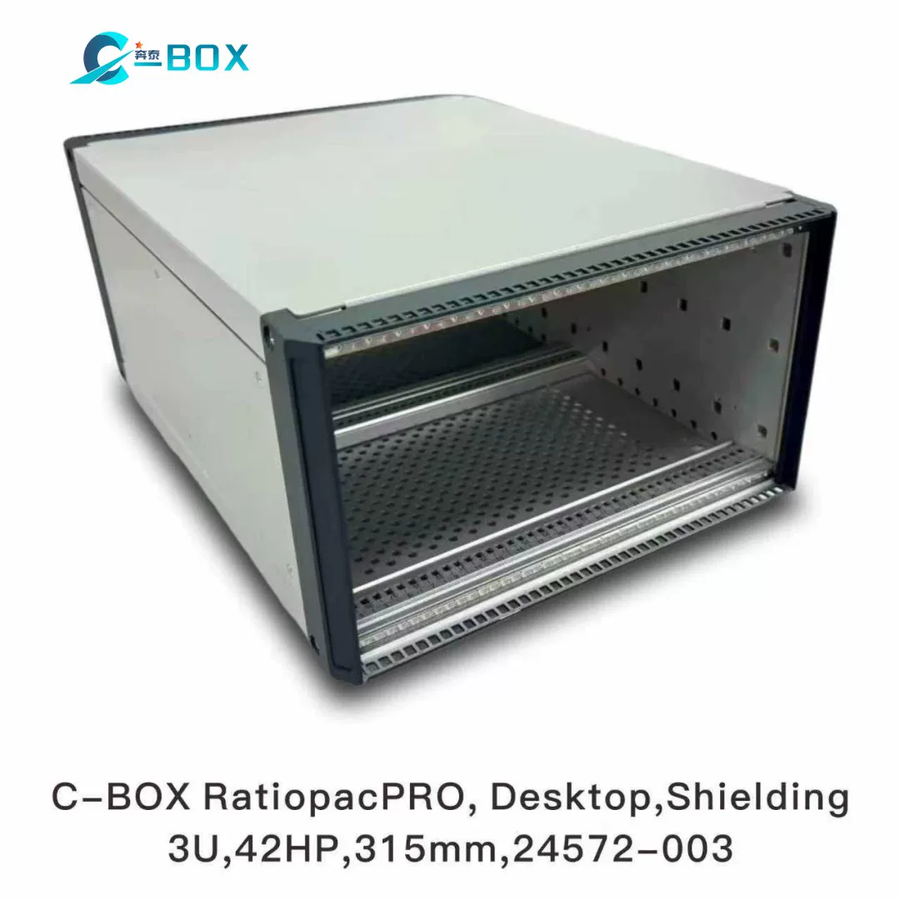

C-BOX RatiopacPRO, Complete Case, Desktop, Retrofittable Shielding, Front Trim, 3 U, 42 HP, 315 mm, catalog number 24572-003

Features

Aluminum construction
Passivated; Powder Coated finish
42HP rack width
3U rack height
Case
Type Case for 19" Components

Specifications

Catalog Number	24572-003
Rack Width	42HP
Rack Height	3U
Material	Aluminum
Finish	Passivated; Powder Coated
Product Type	Case
Type	Case for 19" Components
Product Family	RatiopacPRO
Complies With	IEC 60297-3-101; IEC 60297-3-102; IEEE 1101.1; IEEE 1101.10; IEEE 1101.11
Static Load	25kg
Package Quantity	1
Depth	315.5mm
Usable Height	112.3mm
Usable Width	219mm
Front Frame Construction	Side Trim; Horizontal Rails
Cooling Option	No
EMC Shielding	No (Retrofittable)
Height	132.6mm
Protection Rating	IP20
Width	235.5mm
Net Weight	2.23kg

Item(s) Delivered

Side panel, AI, 2 mm, passivated × 2
Rear panel with perforation, Al, 2.5 mm × 1
Top cover and base plate, Al, 1 mm, internal surfaces conductive, visible surfaces RAL 9006, with GND/earthing connection, base plate with honeycomb grid ventilation × 2
Case foot with anti-slip protection, UL 94 V-0, PC black × 4
GND/earthing kit, assembly kit × 1
Side plate, Al, 1 mm, visible surfaces RAL 9006 × 2
Cover strip, Al die-cast, RAL 7016, pre-fitted only on EMC version × 4
Horizontal rail, type H-LD, Al, visible surfaces powder coated, RAL 7016, assembled on front side bottom, for IEEE application × 1
Horizontal rail centre (top/bottom), type H-ST, Al × 2
Threaded inserts, St, pre-mounted, for indirect backplane mounting with insulation strips × 6
Insulation strip, PBT UL 94 V-0 × 4
