Home  ›  Products  ›  Front Panels  ›  30848-428

Front Panels · Front Panels & Plug-in Units

Plug-In Unit U-Profile Front Panel for IEL, IET, Type 2, 3 U, 6 HP, 0.1" Offset, 2.5 mm, Al, Front Anodized, Rear Conductive

Front panel can be shielded. Enables an assembly on IEL, IET or the type 2 handle in trapezoid form. 0,1" offset.

Catalog#: 30848-428

Request a Quote Download Catalog (PDF)

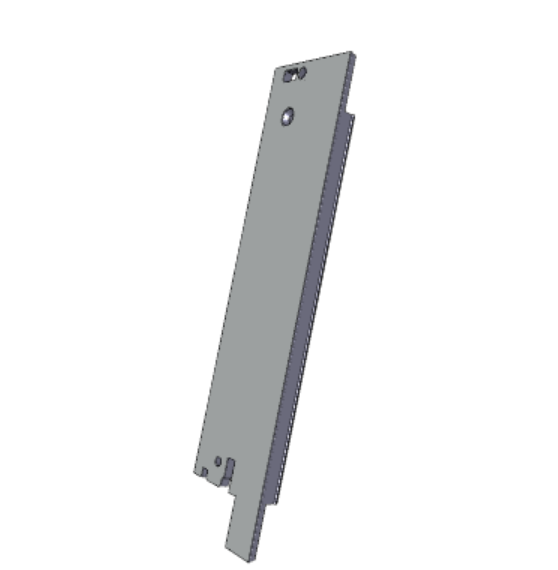

C-BOX Plug-In Unit U-Profile Front Panel for IEL, IET, Type 2, 3 U, 6 HP, 0.1" Offset, 2.5 mm, Al, Front Anodized, Rear Conductive, catalog number 30848-428

Features

  • Aluminum construction
  • Anodized; Passivated finish
  • 6HP rack width
  • 3U rack height
  • Front Panel
  • Type Front Panel for Handle (PIU)

Specifications

Catalog Number30848-428
Rack Width6HP
Rack Height3U
MaterialAluminum
FinishAnodized; Passivated
Product TypeFront Panel
TypeFront Panel for Handle (PIU)
Handle TypeIEL; IET
Complies WithIEC 60297-3-102; IEEE 1101.10; IEC 60297-3-103; IEEE 1101.1/11
Package Quantity1
Gross Weight0.028kg
Accessory TypeFront panel
MountingScrew-on Front with 0.1" offset
Gasket TypeTextile EMC
Front FinishAnodized
Rear FinishConductive
Treated EdgesNo
Depth2.5mm
EMC ShieldingNo (Retrofittable)
Height128.4mm
Width30.1mm

Item(s) Delivered
