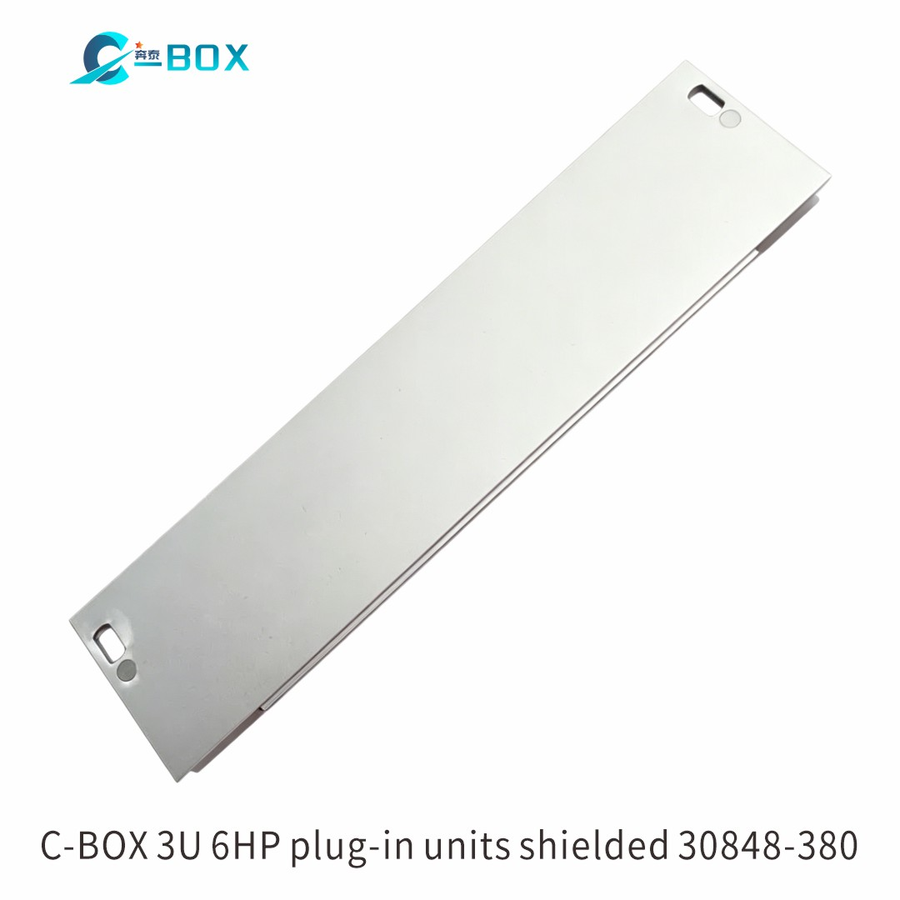

Front Panel, U-profile, Refrofit Shielding, 3 U, 6 HP, 2.5 mm, Al, Front Anodized, Rear Conductive

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

U-profile front panel for textile EMC gasket.

Catalog#: 30848-380

Request a Quote Download Catalog (PDF)

Features

Aluminum construction
Anodized; Passivated finish
6HP rack width
3U rack height
Width 30.1mm
Height 128.4mm

Specifications

Catalog Number	30848-380
Rack Width	6HP
Rack Height	3U
Width (W)	30.1mm
Height (H)	128.4mm
Depth (D)	2.5mm
Material	Aluminum
Finish	Anodized; Passivated
Product Type	Front Panel
Type	Front Panel without Handle
Complies With	IEC 60297-3-101; IEEE 1101.1/10
Package Quantity	1
Gross Weight	0.031kg
Accessory Type	Front panel
Mounting	Screw-on Front
Gasket Type	Textile EMC
Front Finish	Anodized
Rear Finish	Conductive
Treated Edges	No
Design Feature	Alignment pin
EMC Shielding	No (Retrofittable)

Item(s) Delivered

Front panel, U profile, Al, 2.5 mm, front anodized, rear conductive, 2 alignment pins pressed-in, stainless steel × 1

Compatibility

This part is compatible with nVent SCHROFF 30848-380 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 30848-380 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.
