Inserter/Extractor Handle, Type IEL, Black Lever, Light Grey Key, Bottom

Name: Subracks & 19″ Chassis
Brand: C-BOX

Inserter/extractor handle type IEL, bottom position. In accordance with IEEE 1101.10 and IEC 60297-3-102 with locking; codable to IEEE 1101.10 and IEC 60297-3-103. Suited for insertion and extraction forces up to 700 N per pair.

Catalog#: 20817-612

Request a Quote Download Catalog (PDF)

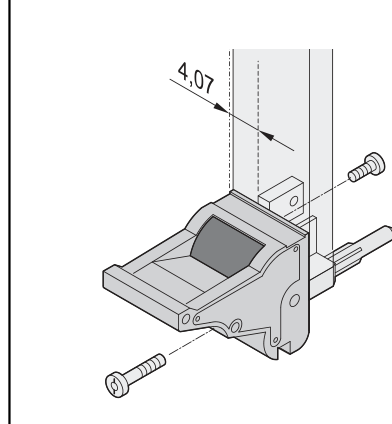

C-BOX Inserter/Extractor Handle, Type IEL, Black Lever, Light Grey Key, Bottom, catalog number 20817-612

Features

IEL type, bottom position — Black lever, Light Grey key
IEEE 1101.10 and IEC 60297-3-102 with locking
Insertion/extraction forces up to 700 N (per pair)
Codable to IEEE 1101.10 and IEC 60297-3-103
Integrated alignment pin for perforated strip; block die-cast zinc, nickel-plated
Slotted Pozidriv collar screw M2.5 × 7.3, St., nickel-plated included
Board fixing without offset; suitable for use under microscopes

Specifications

Catalog Number	20817-612
Product Type	Inserter/Extractor Handle Type IEL
Lever / Key Colour	Black (RAL 9005) / Light Grey (RAL 7035)
Position	Bottom
Standard	IEEE 1101.10; IEC 60297-3-102 with locking
Forces	Up to 700 N per pair
Block	Die-cast zinc, nickel-plated
MOQ	100 pcs
