acc · Extractor & Static Handles

Extractor Handle, Trapeziform, Type 1, Bottom, Grey

Trapeziform extractor handle, type 1, bottom position, grey. PPE, UL 94 V-1, handle closed laterally, with pivot bus and aluminium identification plate (1.5 mm, anodised, cut edges planished). Board support disc zinc-plated.

Catalog#: 20817-327

Request a Quote Download Catalog (PDF)

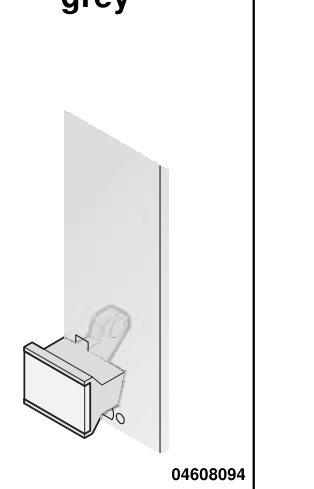

C-BOX Extractor Handle, Trapeziform, Type 1, Bottom, Grey, catalog number 20817-327

Features

PPE, UL 94 V-1, grey
Handle closed laterally; pivot bus; identification plate aluminium 1.5 mm
Board support disc zinc-plated
In the 6 U version, space can be created for SMD components on the left side by swapping the top and bottom handles and moving the PCB position 1 HP to the right

Specifications

Catalog Number	20817-327
Product Type	Extractor Handle, Trapeziform Type 1
Colour	Grey
Position	Bottom
Material	PPE, UL 94 V-1
MOQ	100 pcs
