Inserter/Extractor Handle Type IEL, Black Lever, Grey Button, Top; 10 pieces

Name: Inserter/Extractor Handle Type IEL, Black Lever, Grey Button, Top; 10 pieces
Brand: C-BOX
SKU: 20817-684

The inserter/extractor handle, type IEL in accordance with IEEE 1101.10, 0,1" offset.

Catalog#: 20817-684

Request a Quote Download Catalog (PDF)

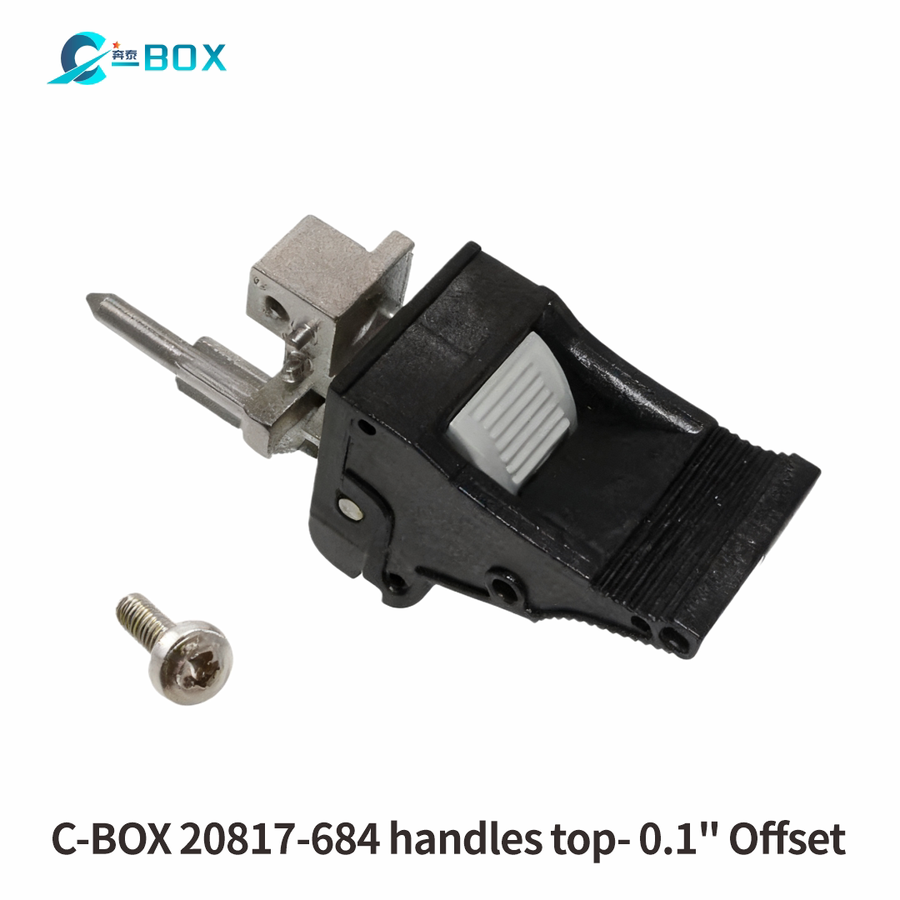

C-BOX Inserter/Extractor Handle Type IEL, Black Lever, Grey Button, Top; 10 pieces, catalog number 20817-684

Features

Polycarbonate; Zinc Alloy construction
Width 19.8mm
Height 25.5mm
Depth 60.45mm
Colour: Jet Black
RAL 9005

Specifications

Catalog Number	20817-684
Width (W)	19.8mm
Height (H)	25.5mm
Depth (D)	60.45mm
Material	Polycarbonate; Zinc Alloy
Color	Jet Black
Color Code	RAL 9005
Product Type	Handle
Type	Inserter/Extractor, 0.1" Offset
Handle Type	IEL; Top Front
Works With	Front Panels
Complies With	EN 45545-2
Flammability Rating	UL® 94V-0
Package Quantity	10
Gross Weight	0.252kg

Item(s) Delivered

Zn die-cast with integrated alignment pin for perforated strip and IEEE 1101.10 guide rail × 10
Lever, plastic PC, RAL 9005, UL 94 V-0 × 10
Push button, plastic PC, RAL 7035, UL 94 V-0 × 10
Pozidrive collar screw, M2.5 × 12.3, St, nickel-plated × 10
Pan head screw with Torx, M2.5 × 7, St, nickel-plated × 10
