Inserter/Extractor Handle Type IET, Grey Lever, Black Button, Bottom, 10 Pieces

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

The inserter/extractor handle, type IET in accordance with IEEE 1101.10.

Catalog#: 20817-660

Request a Quote Download Catalog (PDF)

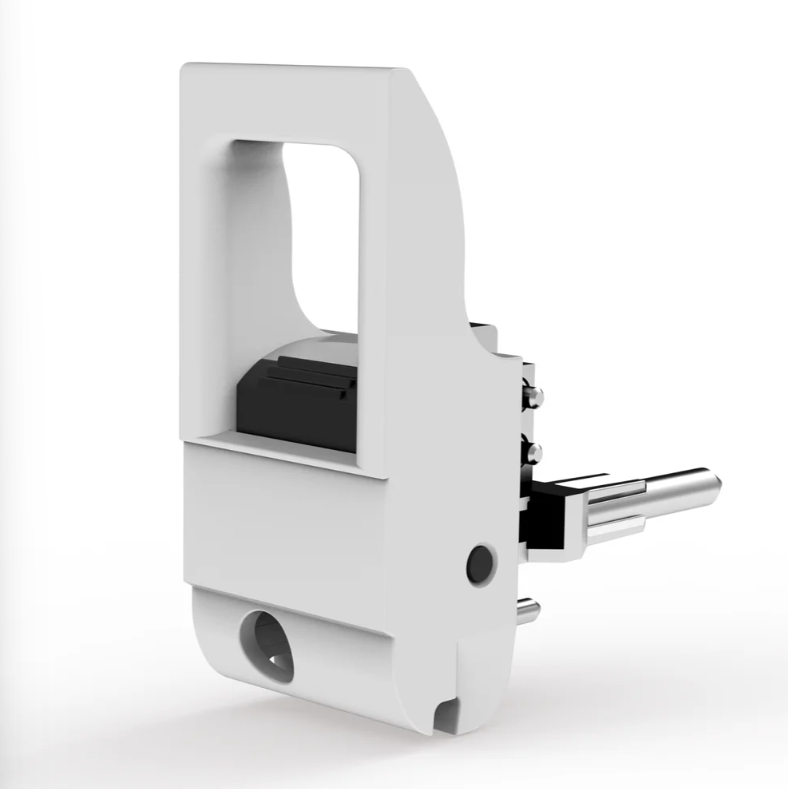

C-BOX Inserter/Extractor Handle Type IET, Grey Lever, Black Button, Bottom, 10 Pieces, catalog number 20817-660

Features

Polycarbonate construction
Colour: Grey
Handle
Type Inserter/Extractor, Standard
IET; Bottom Front; Top Rear I/O handle
Works with Front Panels

Specifications

Catalog Number	20817-660
Material	Polycarbonate
Color	Grey
Product Type	Handle
Type	Inserter/Extractor, Standard
Handle Type	IET; Bottom Front; Top Rear I/O
Works With	Front Panels
Complies With	EN 45545-2
Flammability Rating	UL® 94V-0
Package Quantity	10
Gross Weight	0.235kg

Item(s) Delivered

Zn die-cast with integrated alignment pin for perforated strip and IEEE 1101.10 guide rail × 10
Lever, plastic PC, RAL 7035, UL 94 V-0 × 10
Push button, plastic PC, RAL 9005, UL 94 V-0 × 10
Pozidrive collar screw, M2.5 × 12.3, St, nickel-plated × 10
Pan head screw with Torx, M2.5 × 7, St, nickel-plated × 10

Related Inserter / Extractor Handles

Catalog#: 20817-325

Extractor Handle Key Form 1, Bottom, Grey

Catalog#: 20817-326

Extractor Handle Key Form 1, Top, Grey

Catalog#: 20817-327

Extractor Handle Trapezoid Form, Type 1, Bottom, Grey

Catalog#: 20817-328

Extractor Handle Trapezoid Form, Type 1, Top, Grey

Catalog#: 20817-329

Extractor Handle Trapezoid Form, Type 1, Bottom, Black

Catalog#: 20817-330

Extractor Handle Trapezoid Form, Type 1, Top, Black

Catalog#: 20817-345

Extractor Handle Key Form 1, Bottom, Black

Catalog#: 20817-346

Extractor Handle Key Form 1, Top, Black

Compatibility

This part is compatible with nVent SCHROFF 20817-660 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 20817-660 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 20817-660 or a compatible custom version? Send an RFQ — engineering response within one business day.

Request a Quote
