Panhead Screw, Torx 8, Self Forming, M2.5 x 9.3 mm, Steel Zinc Plated; 100 pieces

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

Panhead screws.

Catalog#: 24560-141

Request a Quote Download Catalog (PDF)

C-BOX Panhead Screw, Torx 8, Self Forming, M2.5 x 9.3 mm, Steel Zinc Plated; 100 pieces, catalog number 24560-141

Features

Steel construction
Zinc Plated finish
Usable length 9.3mm
Screw
Type Panhead Screw
Works with Guide Rails

Specifications

Catalog Number	24560-141
Length	9.3mm
Material	Steel
Finish	Zinc Plated
Product Type	Screw
Type	Panhead Screw
Compatible product families	Frame Type Plug-In Unit
Works With	Guide Rails
Package Quantity	100
Gross Weight	0.04kg
Thread Size	M2.5
Drive Type Main	Torx 8
Head Shape	Panhead
Thread Length	9.3mm
Torque	0.3N·m

Item(s) Delivered

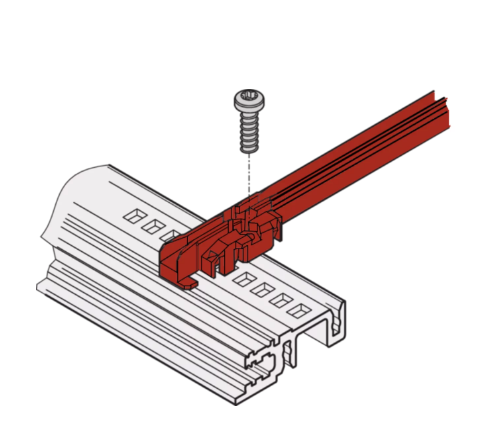

Pan Head Screw, Torx, Ø 2.5 mm, Length 9.3 mm, Thread-Forming, Steel Zinc Plated; for extra bolding of plastic-guide rail on horizontal rail, for trim on horizontal rail × 100

Compatibility

This part is compatible with nVent SCHROFF 24560-141 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 24560-141 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 24560-141 or a compatible custom version? Send an RFQ — engineering response within one business day.
