EuropacPRO 19" Bracket for Textile Gasket, Type F, 3 U

Name: EuropacPRO 19" Bracket for Textile Gasket, Type F, 3 U
Brand: C-BOX
SKU: 24564-197

19 inch bracket Kits can be combined with the side panel type F. Available for textile or stainless EMC gaskets.

Catalog#: 24564-197

Request a Quote Download Catalog (PDF)

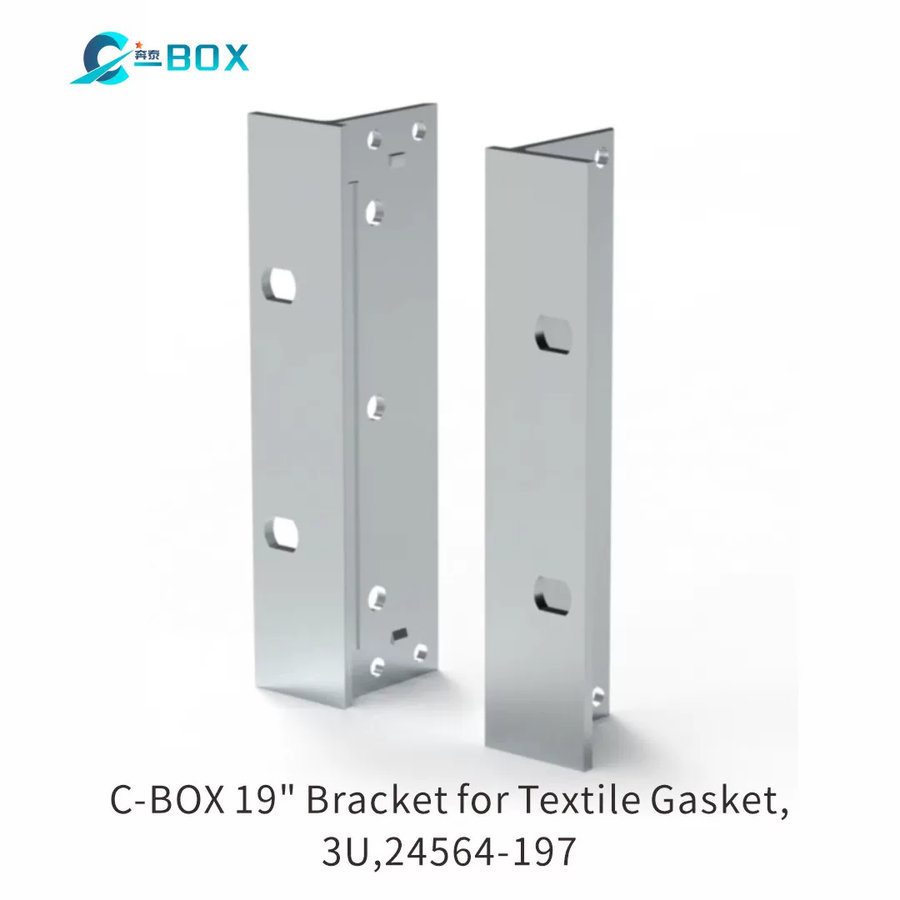

C-BOX EuropacPRO 19" Bracket for Textile Gasket, Type F, 3 U, catalog number 24564-197

Features

Aluminum construction
Anodized finish
3U rack height
Bracket
Type Type F
Works with Subracks

Specifications

Catalog Number	24564-197
Rack Height	3U
Material	Aluminum
Finish	Anodized
Product Type	Bracket
Type	Type F
Product Family	EuropacPRO
Works With	Subracks
Package Quantity	2
Gross Weight	0.132kg
Package Unit	Pair
Bracket Type	Without Handle Holes

Item(s) Delivered

Left 19" bracket, Al extrusion, rear side: conductive, front: anodized, without handle holes × 1
Right 19" bracket, Al extrusion, rear side: conductive, front: anodized, without handle holes × 1
