CPCI PlusIO System, Desktop, 4 U, 8 Slot, 44 HP

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

CompactPCI PlusIO Desktop Chassis for eight 3 U Boards and one 3 U Pluggable Power Supply.

Catalog#: 24579-605

Request a Quote Download Catalog (PDF)

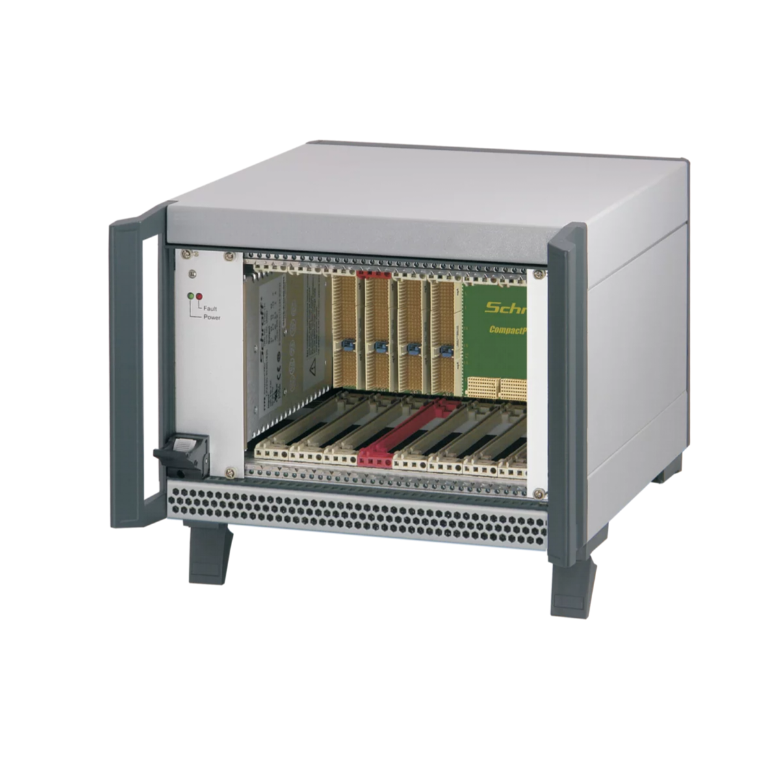

C-BOX CPCI PlusIO System, Desktop, 4 U, 8 Slot, 44 HP, catalog number 24579-605

Features

4U rack height
System
Type Desktop
Complies with PICMG 2.30 R1.0
Standard pack quantity: 1

Specifications

Catalog Number	24579-605
Rack Height	4U
Product Type	System
Type	Desktop
Complies With	PICMG 2.30 R1.0
Package Quantity	1
Number of Slots	8
Backplane Type	3 U, 4 Slot CompactPCI and 4 Slot CompactPCI Serial
Data Transfer	32-bit PCI Bus; PCIe Gen2
Power per Slot	30W
Input Voltage AC	100 – 240V
Airflow Direction	Front to Rear
Power Supply Type	(1) Pluggable PSU
Power Supply Included	Yes
Rear I/O	Yes
Depth	275mm
Height	177mm
Net Weight	8.245kg

Item(s) Delivered

RatiopacPRO‐air case, RAL 9006, shielded, perforated air inlet/exhaust openings front and rear; front handles RAL 7016 × 1
Front panel, rear, 3 U, 24 HP × 1
Cable harness to connect all system components × 1
Front slot; IEEE guide rails, incl. ESD clips (ESD clips fitted at bottom front), for vertical boards (3 U, 160 mm deep) × 8
Rear slot; IEEE guide rails, incl. ESD clips (ESD clips fitted at bottom), for vertical rear I/O boards (3 U, 80 mm deep) × 3
Backplane for 3 U boards; 8 slots comprising 4 slots 32‐bit CompactPCI plus 4 slots CompactPCI PlusIO (PICMG 2.30, part no. 23007‐601) × 1
Power backplane, 3 U, 8 HP with 1 x P47 connector part no. 23098‐105) × 1
19" compatible power supply, 250 W (3 U, 8 HP; part no. 13100‐141) × 1
AC input module, 3 U, 8 HP; AC line filter, 110 ... 250 VAC, 50 ... 60 HZ, max. current 10 A × 1
Radial fan, 36 m3/h each, free blowing × 2
Front panel, front, 3 U, 4 HP, removable × 1

Compatibility

This part is compatible with nVent SCHROFF 24579-605 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 24579-605 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 24579-605 or a compatible custom version? Send an RFQ — engineering response within one business day.

Request a Quote
