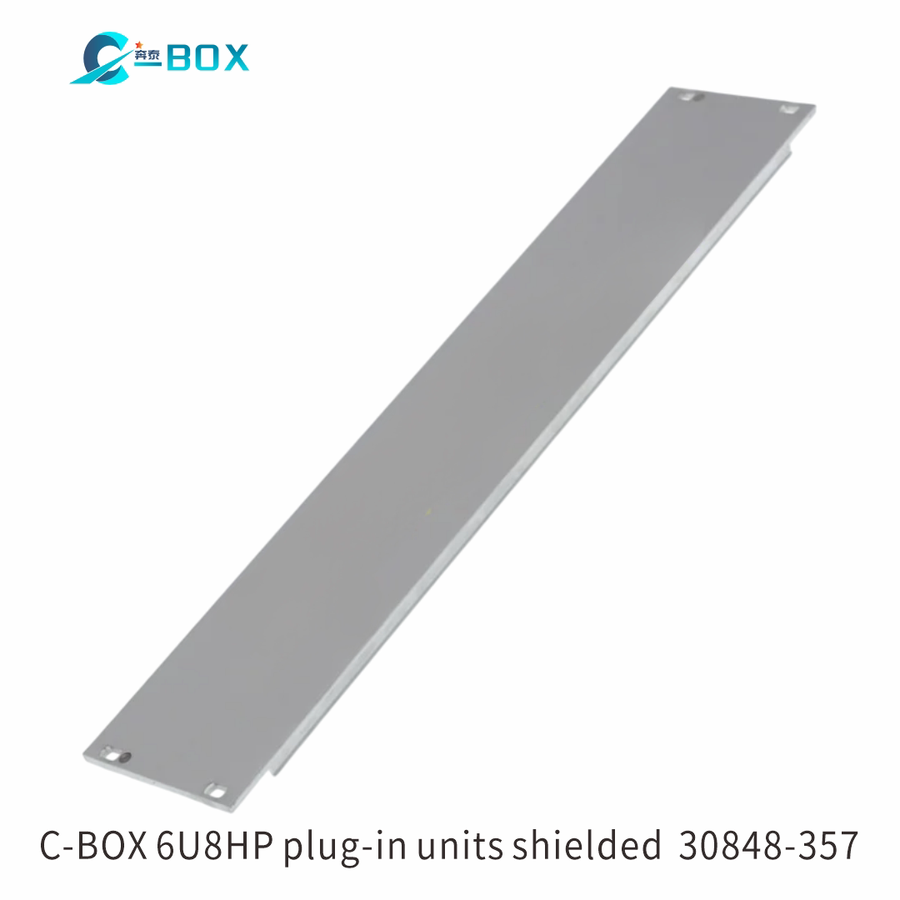

Front Panel, U-profile, Refrofit Shielding, 6 U, 8 HP, 2.5 mm, Al, Front Anodized, Rear Conductive

Name: Front Panel, U-profile, Refrofit Shielding, 6 U, 8 HP, 2.5 mm, Al, Front Anodized, Rear Conductive
Brand: C-BOX
SKU: 30848-357

U-profile front panel for textile EMC gasket.

Catalog#: 30848-357

Request a Quote Download Catalog (PDF)

Features

Aluminum construction
Anodized; Passivated finish
8HP rack width
6U rack height
Width 40.3mm
Height 261.8mm

Specifications

Catalog Number	30848-357
Rack Width	8HP
Rack Height	6U
Width (W)	40.3mm
Height (H)	261.8mm
Depth (D)	2.5mm
Material	Aluminum
Finish	Anodized; Passivated
Product Type	Front Panel
Type	Front Panel without Handle
Complies With	IEC 60297-3-101; IEEE 1101.1/10
Package Quantity	1
Accessory Type	Front panel
Mounting	Screw-on Front
Gasket Type	Textile EMC
Front Finish	Anodized
Rear Finish	Conductive
Treated Edges	No
Design Feature	Alignment pin
EMC Shielding	No (Retrofittable)
Net Weight	0.041kg
