Front Panel EMC Textile Shielding Kit, -40… +70°C, 3 U; 10 pieces

Name: Front Panel EMC Textile Shielding Kit, -40… +70°C, 3 U; 10 pieces
Brand: C-BOX
SKU: 21101-853

The textile EMC gaskets are inserted into a slot on the right hand side of the U-shaped front panels.

Catalog#: 21101-853

Request a Quote Download Catalog (PDF)

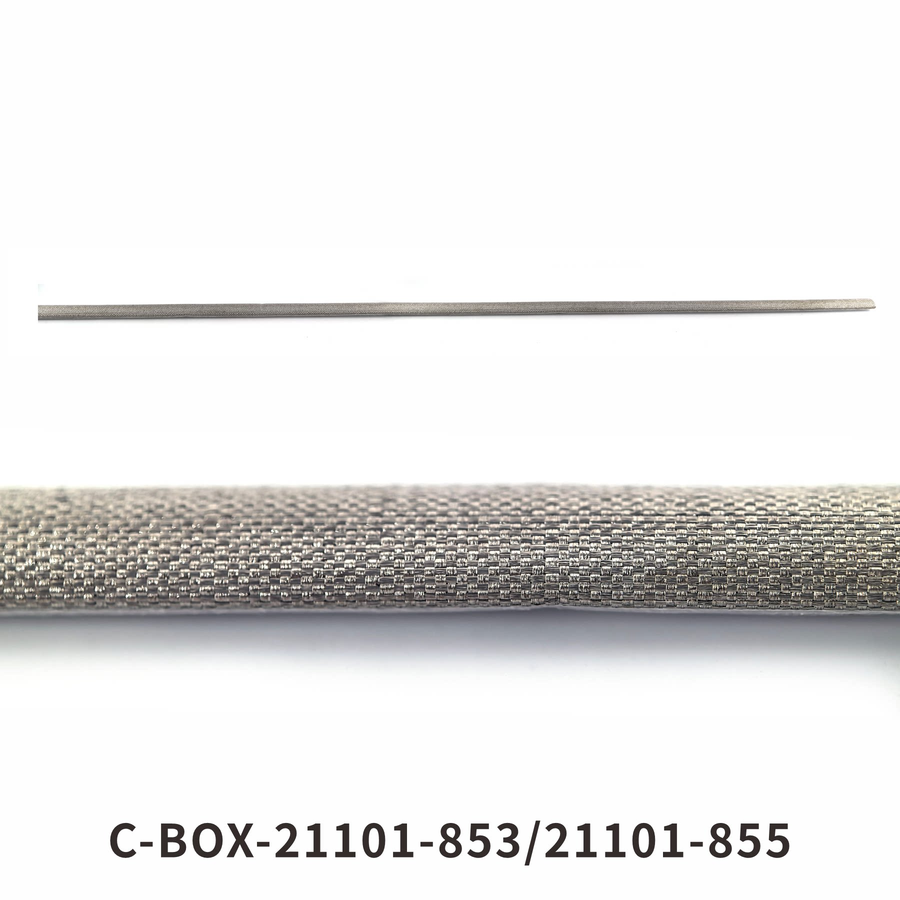

C-BOX Front Panel EMC Textile Shielding Kit, -40… +70°C, 3 U; 10 pieces, catalog number 21101-853

Features

Thermoplastic Elastomer construction
3U rack height
Width 3.8mm
Height 97mm
Depth 1.62mm
Shielding Kit

Specifications

Catalog Number	21101-853
Rack Height	3U
Width (W)	3.8mm
Height (H)	97mm
Depth (D)	1.62mm
Material	Thermoplastic Elastomer
Product Type	Shielding Kit
Product Family	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; PropacPRO; Frame Type Plug-In Unit
Works With	Subracks; Cases; Front Panels
Flammability Rating	UL® 94V-0
Package Quantity	10
Net Weight	0.048kg
