Front Panel EMC Textile Shielding Kit, -40… +70°C, 6 U; 100 pieces

Name: Front Panel EMC Textile Shielding Kit, -40… +70°C, 6 U; 100 pieces
Brand: C-BOX
SKU: 21101-856

The textile EMC gaskets are inserted into a slot on the right hand side of the U-shaped front panels.

Catalog#: 21101-856

Request a Quote Download Catalog (PDF)

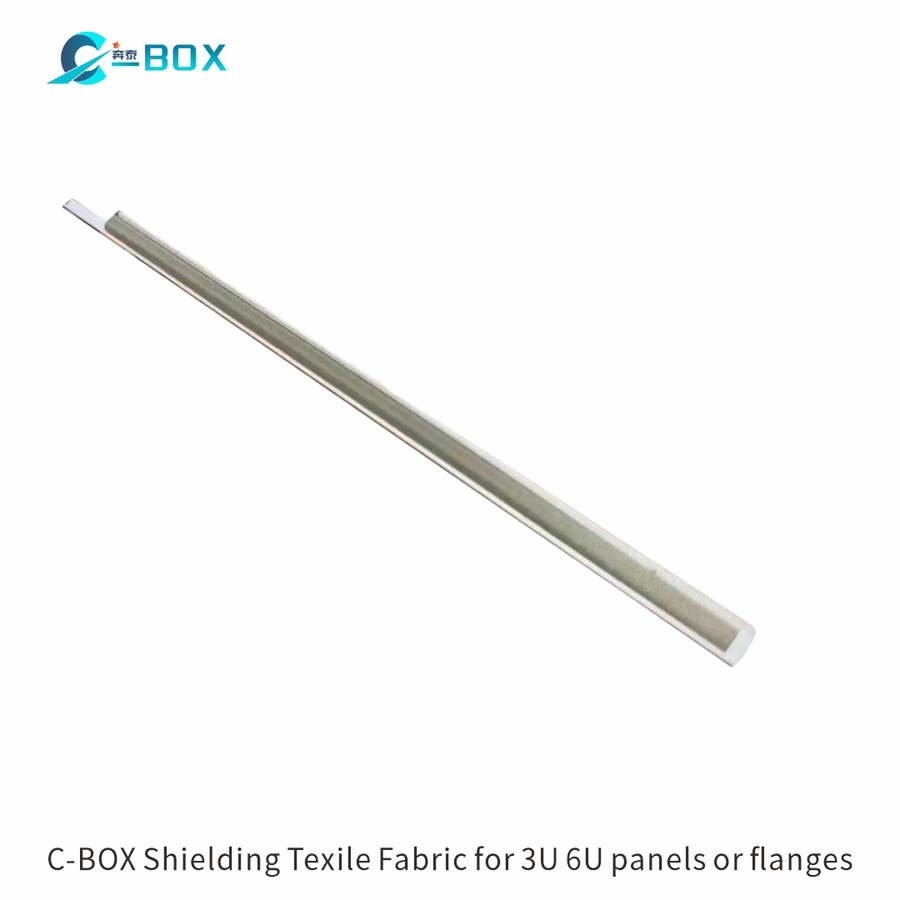

C-BOX Front Panel EMC Textile Shielding Kit, -40… +70°C, 6 U; 100 pieces, catalog number 21101-856

Features

Thermoplastic Elastomer construction
6U rack height
Width 3.8mm
Height 232mm
Depth 1.62mm
Shielding Kit

Specifications

Catalog Number	21101-856
Rack Height	6U
Width (W)	3.8mm
Height (H)	232mm
Depth (D)	1.62mm
Material	Thermoplastic Elastomer
Product Type	Shielding Kit
Product Family	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; PropacPRO; Frame Type Plug-In Unit
Works With	Subracks; Cases; Front Panels
Flammability Rating	UL® 94V-0
Package Quantity	100
Gross Weight	0.174kg

Related Front Panels & Plug-in Units

Catalog#: 30848-354

Front Panel, U-profile, Refrofit Shielding, 3 U, 4 HP, 2.5 mm, Al, Front Anodized, Rear Conductive

Catalog#: 30848-356

Front Panel, U-profile, Refrofit Shielding, 3 U, 8 HP, 2.5 mm, Al, Front Anodized, Rear Conductive

Catalog#: 30848-380

Front Panel, U-profile, Refrofit Shielding, 3 U, 6 HP, 2.5 mm, Al, Front Anodized, Rear Conductive

Catalog#: 30848-386

Front Panel, U-profile, Refrofit Shielding, 3 U, 10 HP, 2.5 mm, Al, Front Anodized, Rear Conductive

Catalog#: 30848-428

Plug-In Unit U-Profile Front Panel for IEL, IET, Type 2, 3 U, 6 HP, 0.1" Offset, 2.5 mm, Al, Front Anodized, Rear Conductive

Catalog#: 60807-181

PCB Bracket for Fixing Front Panel/PCB, Die-Cast Zinc

Catalog#: 20848-108

Front Panel, U-profile, Refrofit Shielding, 6 U, 16 HP, 2.5 mm, Al, Front Anodized, Rear Conductive

Catalog#: 20848-120

Front Panel, U-profile, Refrofit Shielding, 6 U, 28 HP, 2.5 mm, Al, Front Anodized, Rear Conductive

Compatibility with nVent SCHROFF 21101-856

This C-BOX part is compatible with nVent SCHROFF 21101-856 — same interface dimensions, our own tooling, material and finish. It is also a direct replacement for nVent SCHROFF 21101-856: a drop-in alternative for existing 21101-856 installations, no rework required.

Cross-reference: nVent SCHROFF 21101-856, nVent 21101-856, SCHROFF 21101-856 — matching C-BOX catalog number 21101-856. Same hole pattern, same panel cut-out, same thread.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 21101-856 or a compatible custom version? Send an RFQ — engineering response within one business day.

Request a Quote
