Guide Rail ESD Clip

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

ESD clip ensures conductive contact between PCB and horizontal rail.

Catalog#: 24560-255

Request a Quote Download Catalog (PDF)

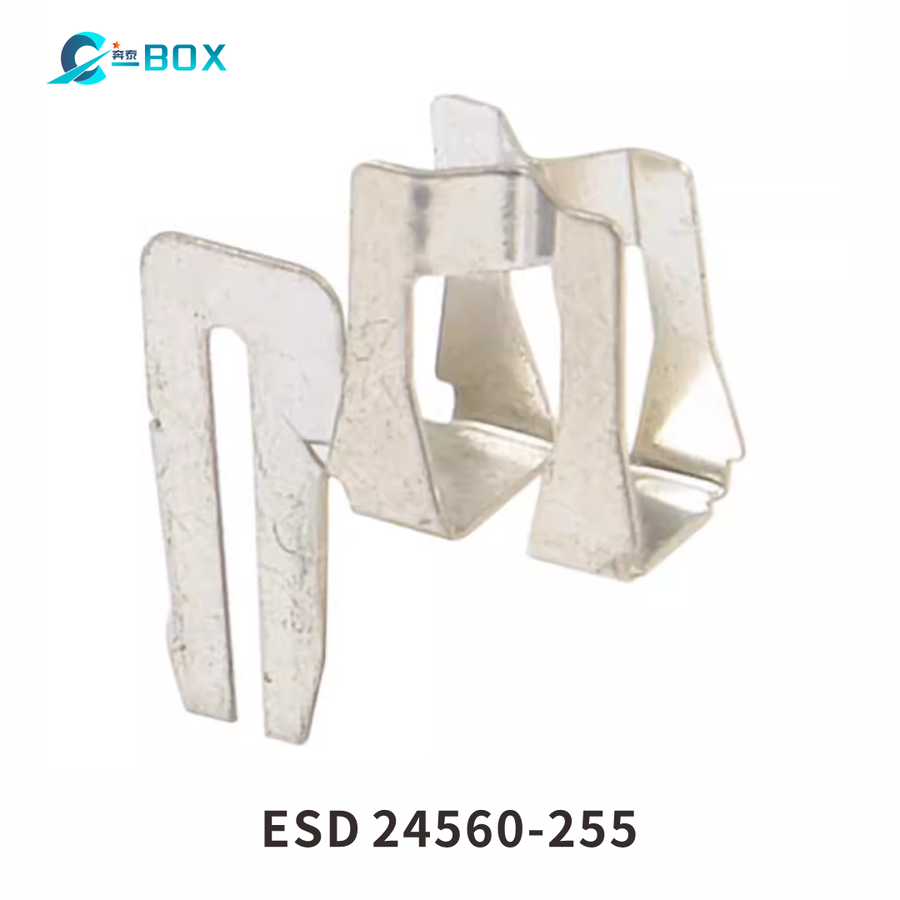

C-BOX Guide Rail ESD Clip, catalog number 24560-255

Features

Steel construction
Tin Plated finish
Guide Rail
Type ESD Clip
Works with Subracks; Cases; Chassis
Standard pack quantity: 50

Specifications

Catalog Number	24560-255
Material	Steel
Finish	Tin Plated
Product Type	Guide Rail
Type	ESD Clip
Compatible product families	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; CompacPRO; PropacPRO; MultipacPRO; Inpac
Works With	Subracks; Cases; Chassis
Package Quantity	50
Gross Weight	0.024kg
