Subrack Accessories · PCB Guide Rails

Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 160 mm, 2 mm Groove Width, Grey, 10 Pieces

Plastic guide rail with coding for CompactPCI and VME64x systems.

Catalog#: 24560-358

Request a Quote Download Catalog (PDF)

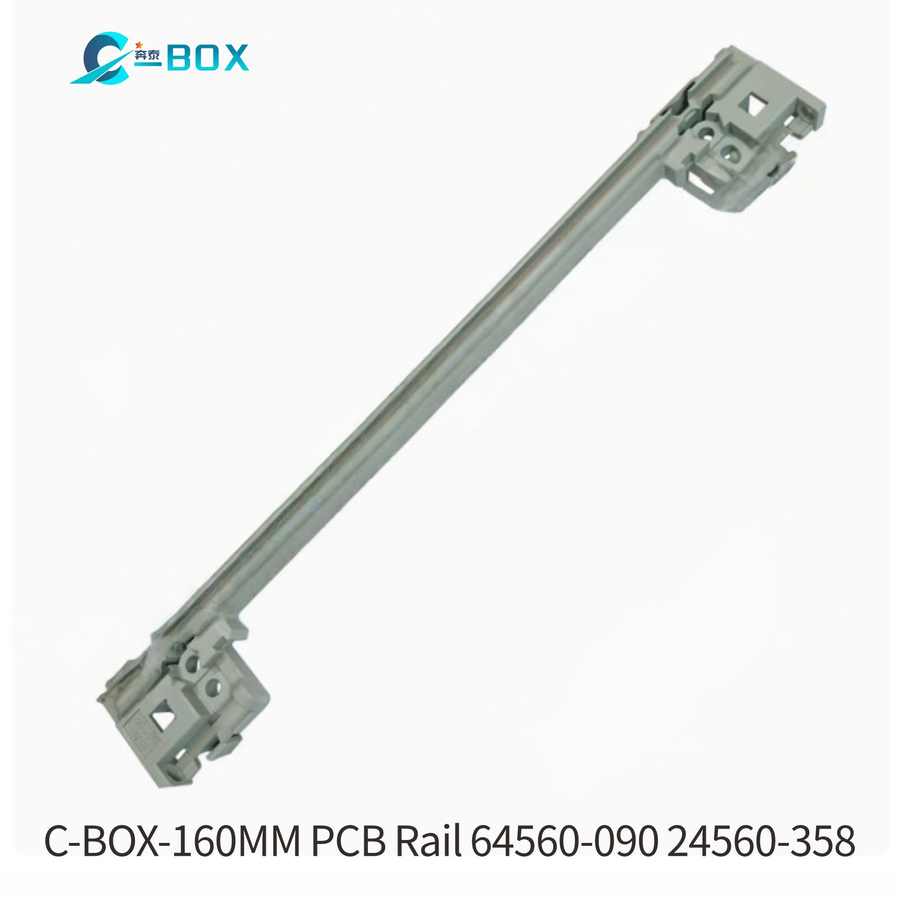

C-BOX Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 160 mm, 2 mm Groove Width, Grey, 10 Pieces, catalog number 24560-358

Features

Plastic construction
Colour: Grey
Guide Rail
Type Coding
Works with Subracks; Cases; Chassis
Standard pack quantity: 10

Specifications

Catalog Number	24560-358
Material	Plastic
Color	Grey
Product Type	Guide Rail
Type	Coding
Compatible product families	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; CompacPRO; PropacPRO; MultipacPRO; Inpac
Works With	Subracks; Cases; Chassis
Package Quantity	10
Board Depth	160mm
Groove Width	2
Net Weight	0.1kg

Item(s) Delivered

Guide rail with coding, grey, 160 mm deep, PBT, UL 94 V-0, groove width 2 mm × 1
