Subrack Accessories · PCB Guide Rails

Guide Rail With Coding IEEE ESD Clip, Alignment Pin

The ESD clip for the alignment pin is mounted onto guide rails in accordance with IEEE 1101.10/11.

Catalog#: 24560-256

Request a Quote Download Catalog (PDF)

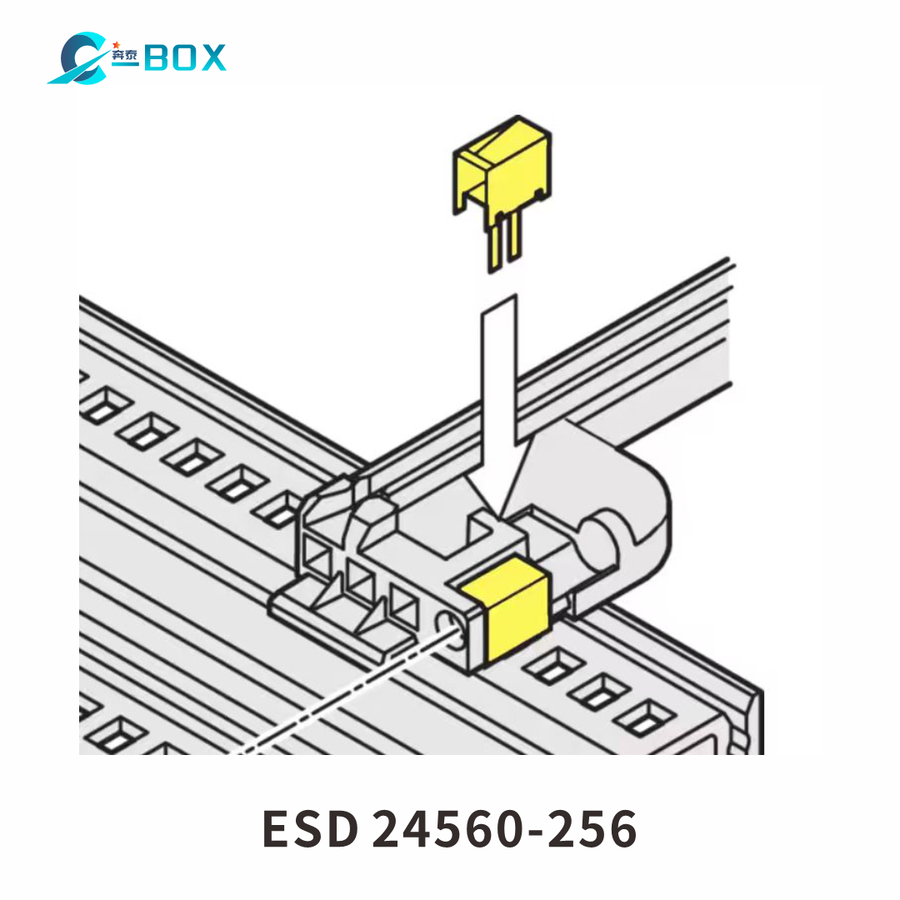

C-BOX Guide Rail With Coding IEEE ESD Clip, Alignment Pin, catalog number 24560-256

Features

Steel construction
Tin Plated finish
Guide Rail
Type ESD Clip
Works with Guide Rails; Cases; Chassis
Standard pack quantity: 50

Specifications

Catalog Number	24560-256
Material	Steel
Finish	Tin Plated
Product Type	Guide Rail
Type	ESD Clip
Compatible product families	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; CompacPRO; PropacPRO; MultipacPRO; Inpac
Works With	Guide Rails; Cases; Chassis
Package Quantity	50
Gross Weight	0.024kg

Item(s) Delivered

ESD clip, for alignment PIN, for guide rails with coding, spring steel, tin-plated × 50
