Subrack Accessories · PCB Guide Rails

Guide Rail Standard Type, PC, 160 mm, 2 mm Groove Width, Red, 10 Pieces

Standard type plastic guide rail for plug-in units or PCBs.

Catalog#: 24568-361

Request a Quote Download Catalog (PDF)

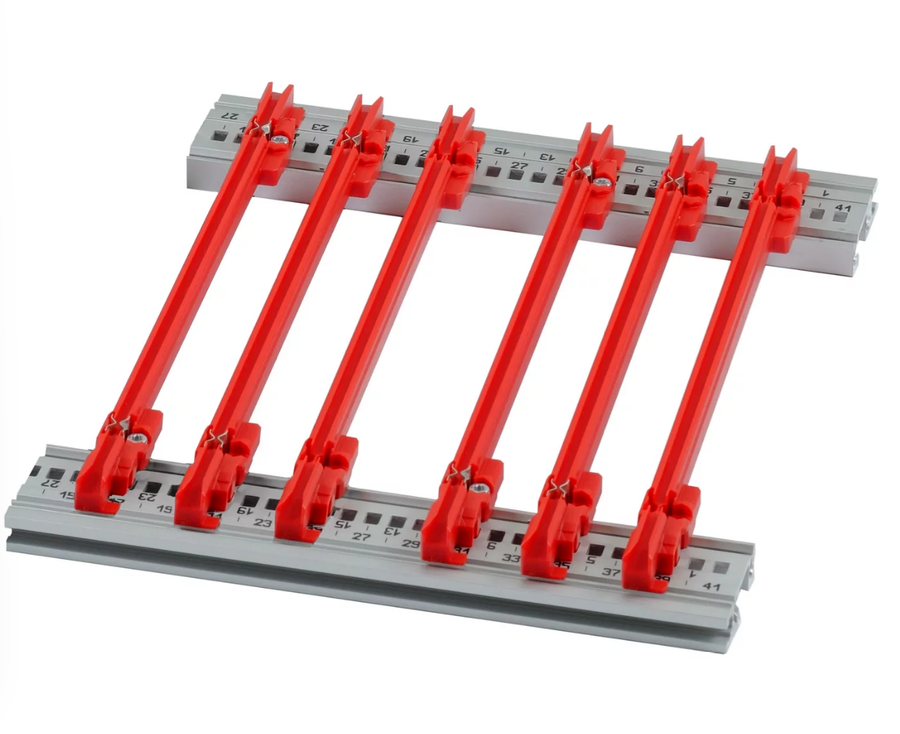

C-BOX Guide Rail Standard Type, PC, 160 mm, 2 mm Groove Width, Red, 10 Pieces, catalog number 24568-361

Features

Fiber-Reinforced Plastic construction
Colour: Red
Guide Rail
Type Standard
Works with Subracks; Cases; 19" Chassis; Systems
Complies with EN 45545-2

Specifications

Catalog Number	24568-361
Material	Fiber-Reinforced Plastic
Color	Red
Product Type	Guide Rail
Type	Standard
Compatible product families	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; CompacPRO; PropacPRO; MultipacPRO; Inpac
Works With	Subracks; Cases; 19" Chassis; Systems
Complies With	EN 45545-2
Package Quantity	10
Board Depth	160mm
Groove Width	2
Net Weight	0.08kg

Item(s) Delivered

Guide rail, PC, UL 94 V-0, improved fire safety properties, EN 45545-2 compliant with HL3 × 10

Related PCB Guide Rails

Catalog#: 24560-255

Guide Rail ESD Clip

Catalog#: 24560-256

Guide Rail With Coding IEEE ESD Clip, Alignment Pin

Catalog#: 24560-351

Guide Rail Standard Type, Groove Width 2 mm, 160 mm, Red, 10 Pieces

Catalog#: 24560-358

Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 160 mm, 2 mm Groove Width, Grey, 10 Pieces

Catalog#: 24560-360

Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 70 mm, 2 mm Groove Width, Grey, 10 Pieces

Catalog#: 34560-900

Guide Rail Multi Piece, Mid-Piece, Aluminum Extrusion, 1000 mm, 2 mm Groove Width, Silver

Catalog#: 34562-881

Guide Rail Accessory Type for Heavy PCBs, Extra Strong, Aluminum, 160 mm, 2 mm Groove Width, Silver

Catalog#: 64560-071

Guide Rail With Coding for CompactPCI/ VME64x, Offset 0.1", 160 mm, Green, SPQ 50

Compatibility

This part is compatible with nVent SCHROFF 24568-361 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 24568-361 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 24568-361 or a compatible custom version? Send an RFQ — engineering response within one business day.
