Subrack Accessories · PCB Guide Rails

Guide Rail Multi Piece, Mid-Piece, Aluminum Extrusion, 1000 mm, 2 mm Groove Width, Silver

Guide rail mid-piece for individual multi-piece guide rails out of plastic or Aluminum extrusion.

Catalog#: 34560-900

Request a Quote Download Catalog (PDF)

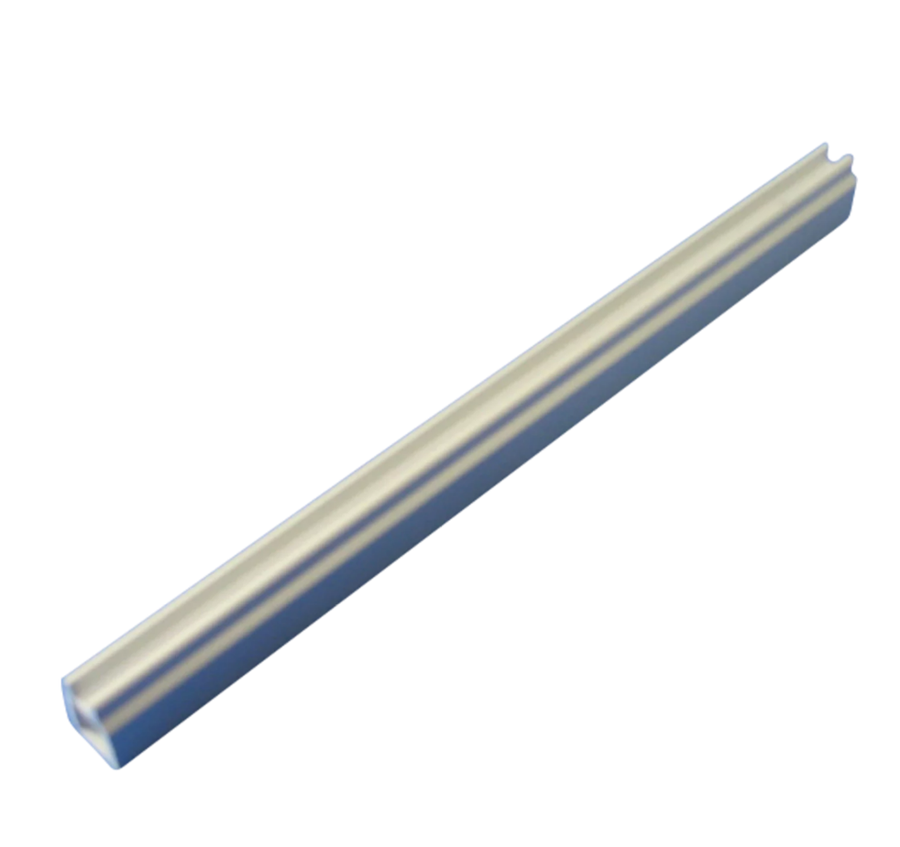

C-BOX Guide Rail Multi Piece, Mid-Piece, Aluminum Extrusion, 1000 mm, 2 mm Groove Width, Silver, catalog number 34560-900

Features

Aluminum construction
Anodized finish
Colour: Silver
Guide Rail
Type Middle Section
Works with Subracks; Cases; Chassis

Specifications

Catalog Number	34560-900
Material	Aluminum
Finish	Anodized
Color	Silver
Product Type	Guide Rail
Type	Middle Section
Compatible product families	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; CompacPRO; PropacPRO; MultipacPRO; Inpac
Works With	Subracks; Cases; Chassis
Package Quantity	1
Board Depth	1000mm
Groove Width	2
Net Weight	0.08kg

Item(s) Delivered

Al extrusion, groove width 2 mm × 1

Related PCB Guide Rails

Catalog#: 24560-255

Guide Rail ESD Clip

Catalog#: 24560-256

Guide Rail With Coding IEEE ESD Clip, Alignment Pin

Catalog#: 24560-351

Guide Rail Standard Type, Groove Width 2 mm, 160 mm, Red, 10 Pieces

Catalog#: 24560-358

Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 160 mm, 2 mm Groove Width, Grey, 10 Pieces

Catalog#: 24560-360

Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 70 mm, 2 mm Groove Width, Grey, 10 Pieces

Catalog#: 24568-361

Guide Rail Standard Type, PC, 160 mm, 2 mm Groove Width, Red, 10 Pieces

Catalog#: 34562-881

Guide Rail Accessory Type for Heavy PCBs, Extra Strong, Aluminum, 160 mm, 2 mm Groove Width, Silver

Catalog#: 64560-071

Guide Rail With Coding for CompactPCI/ VME64x, Offset 0.1", 160 mm, Green, SPQ 50

Compatibility

This part is compatible with nVent SCHROFF 34560-900 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 34560-900 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.
