Subrack Accessories · PCB Guide Rails

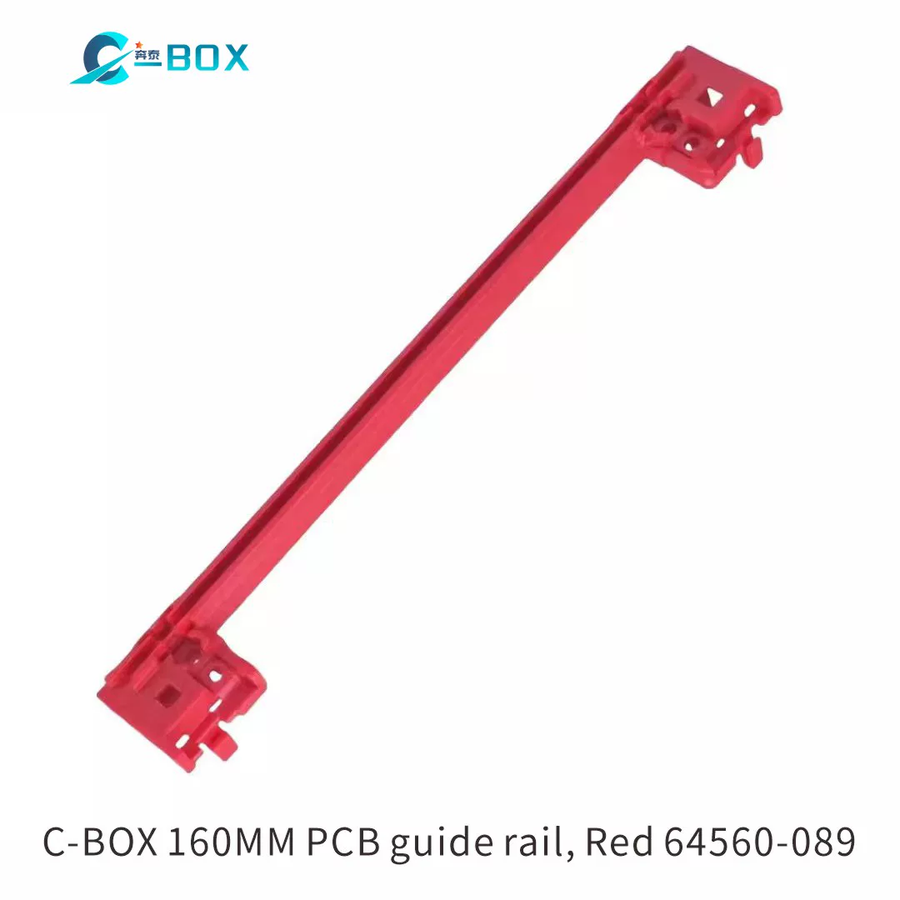

Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 160 mm, 2 mm Groove Width, Red, 10 Pieces

Name: Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 160 mm, 2 mm Groove Width, Red, 10 Pieces
Brand: C-BOX
SKU: 24560-356

Plastic guide rail with coding for CompactPCI and VME64x systems.

Catalog#: 24560-356

Request a Quote Download Catalog (PDF)

C-BOX Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 160 mm, 2 mm Groove Width, Red, 10 Pieces, catalog number 24560-356

Features

Plastic construction
Colour: Red
Guide Rail
Type Coding
Works with Subracks; Cases; Chassis
Standard pack quantity: 10

Specifications

Catalog Number	24560-356
Material	Plastic
Color	Red
Product Type	Guide Rail
Type	Coding
Product Family	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; CompacPRO; PropacPRO; MultipacPRO; Inpac
Works With	Subracks; Cases; Chassis
Package Quantity	10
Board Depth	160mm
Groove Width	2
Net Weight	0.1kg

Related PCB Guide Rails

Catalog#: 24560-255

Guide Rail ESD Clip

Catalog#: 24560-256

Guide Rail With Coding IEEE ESD Clip, Alignment Pin

Catalog#: 24560-351

Guide Rail Standard Type, Groove Width 2 mm, 160 mm, Red, 10 Pieces

Catalog#: 24560-358

Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 160 mm, 2 mm Groove Width, Grey, 10 Pieces

Catalog#: 24560-360

Guide Rail With Coding for CompactPCI/ VME64x, Plastic, 70 mm, 2 mm Groove Width, Grey, 10 Pieces

Catalog#: 24568-361

Guide Rail Standard Type, PC, 160 mm, 2 mm Groove Width, Red, 10 Pieces

Catalog#: 34560-900

Guide Rail Multi Piece, Mid-Piece, Aluminum Extrusion, 1000 mm, 2 mm Groove Width, Silver

Catalog#: 34562-881

Guide Rail Accessory Type for Heavy PCBs, Extra Strong, Aluminum, 160 mm, 2 mm Groove Width, Silver

Compatibility with nVent SCHROFF 24560-356

This C-BOX part is compatible with nVent SCHROFF 24560-356 — same interface dimensions, our own tooling, material and finish. It is also a direct replacement for nVent SCHROFF 24560-356: a drop-in alternative for existing 24560-356 installations, no rework required.

Cross-reference: nVent SCHROFF 24560-356, nVent 24560-356, SCHROFF 24560-356 — matching C-BOX catalog number 24560-356. Same hole pattern, same panel cut-out, same thread.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 24560-356 or a compatible custom version? Send an RFQ — engineering response within one business day.

Request a Quote
