acc · Threaded Inserts & Strip Nuts

Insulation Strip for 19″ Subrack Rail

Grey PBT insulation strip fitted to the horizontal rail for insulated (indirect) backplane mounting. UL 94 V-0 rated.

Catalog#: 24560-884

Request a Quote Download Catalog (PDF)

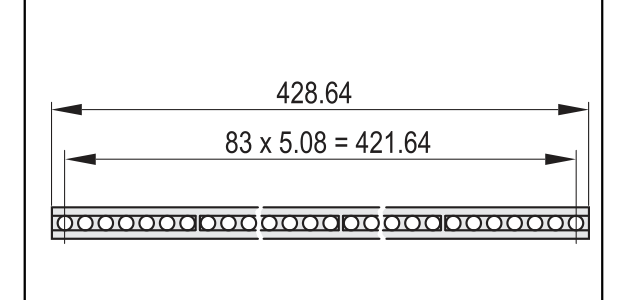

C-BOX Insulation Strip for 19″ Subrack Rail, catalog number 24560-884

Features

PBT, UL 94 V-0, grey
Length 428.64 mm (83 × 5.08 mm pitch)
For insulated backplane mounting on 19″ subrack rails
Supplied in packs of 10 pieces

Specifications

Catalog Number	24560-884
Product Type	Insulation Strip
Material	PBT, UL 94 V-0
Colour	Grey
Length	428.64 mm (83 × 5.08)
MOQ	1000 pcs
