Horizontal Rail, Rear, Type H-ST, Heavy, standard, 84 HP

Name: Subracks & 19″ Chassis
Brand: C-BOX

Rear horizontal rail for 19″ subracks. Heavy-duty type H-ST with standard. Aluminium extrusion, anodised, with conductive contact surface and printed HP markings.

Catalog#: 34560-584

Request a Quote Download Catalog (PDF)

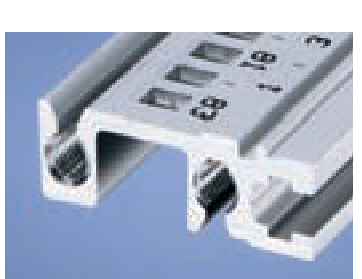

C-BOX Horizontal Rail, Rear, Type H-ST, Heavy, standard, 84 HP, catalog number 34560-584

Features

Aluminium extrusion, anodised finish, conductive contact surface
Heavy-duty type H-ST with standard
Printed HP markings from 28 HP for fast board alignment
Usable length 431.80 mm at 84 HP
For indirect backplane mounting with insulation strip (24560-884)
Pairs with front rail type H-KD / H-LD
Loading capacity > 7.5 kg

Specifications

Catalog Number	34560-584
Product Type	Horizontal Rail
Position	Rear
Type	H-ST (Heavy duty, standard)
Rack Width	84 HP
Usable Length	431.80 mm
Material	Aluminium extrusion
Finish	Anodised, conductive contact surface
Markings	Printed HP scale
Complies With	IEC 60297-3-100/-101
Loading Capacity	> 7.5 kg
MOQ	100 pcs
