Horizontal Rail, Front, Type H-LD, Heavy, long lip, 84 HP

Name: Subracks & 19″ Chassis
Brand: C-BOX

Front horizontal rail for 19″ subracks. Heavy-duty type H-LD with long lip. Aluminium extrusion, anodised, with conductive contact surface and printed HP markings.

Catalog#: 34560-384

Request a Quote Download Catalog (PDF)

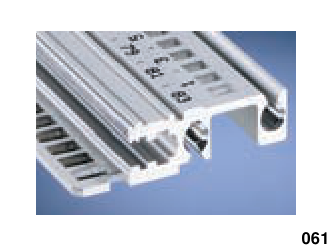

C-BOX Horizontal Rail, Front, Type H-LD, Heavy, long lip, 84 HP, catalog number 34560-384

Features

Aluminium extrusion, anodised finish, conductive contact surface
Heavy-duty type H-LD with long lip
Printed HP markings from 28 HP for fast board alignment
Usable length 431.80 mm at 84 HP
Long lip for insertion/extraction of CompactPCI and VME64x boards
For IEEE 1101.10 / 1101.11 applications
Loading capacity > 7.5 kg
M4 × 14 fastening screws: 24560-130 (PU 100); threaded inserts 34561-384 / 34561-484

Specifications

Catalog Number	34560-384
Product Type	Horizontal Rail
Position	Front
Type	H-LD (Heavy duty, long lip)
Rack Width	84 HP
Usable Length	431.80 mm
Material	Aluminium extrusion
Finish	Anodised, conductive contact surface
Markings	Printed HP scale
Complies With	IEC 60297-3-100/-101
Loading Capacity	> 7.5 kg
Applications	IEEE 1101.10 / 1101.11
MOQ	100 pcs

Send us your drawing or part number

Need 34560-384 or a compatible custom version? Send an RFQ — engineering response within one business day.
