sub · Horizontal Rails

Horizontal Rail, Rear, Type H-VT, Heavy, +3 mm, 84 HP

Rear horizontal rail for 19″ subracks. Heavy-duty type H-VT with +3 mm. Aluminium extrusion, anodised, with conductive contact surface and printed HP markings.

Catalog#: 34560-784

Request a Quote Download Catalog (PDF)

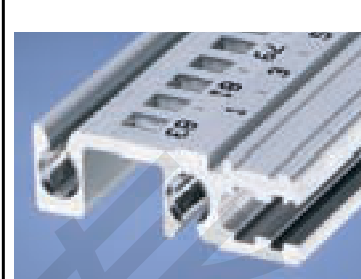

C-BOX Horizontal Rail, Rear, Type H-VT, Heavy, +3 mm, 84 HP, catalog number 34560-784

Features

  • Aluminium extrusion, anodised finish, conductive contact surface
  • Heavy-duty type H-VT with +3 mm
  • Printed HP markings from 28 HP for fast board alignment
  • Usable length 431.80 mm at 84 HP
  • For direct backplane mounting, +3 mm offset version
  • Pairs with front rail type H-KD / H-LD
  • Loading capacity > 7.5 kg

Specifications

Catalog Number34560-784
Product TypeHorizontal Rail
PositionRear
TypeH-VT (Heavy duty, +3 mm)
Rack Width84 HP
Usable Length431.80 mm
MaterialAluminium extrusion
FinishAnodised, conductive contact surface
MarkingsPrinted HP scale
Complies WithIEC 60297-3-100/-101
Loading Capacity> 7.5 kg
MOQ100 pcs
