Horizontal Rail, Rear, Type L-ST, Light, Standard, 84 HP

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

The horizontal rail, type ST enables the isolated assembly of a backplane.

Catalog#: 34560-484

Request a Quote Download Catalog (PDF)

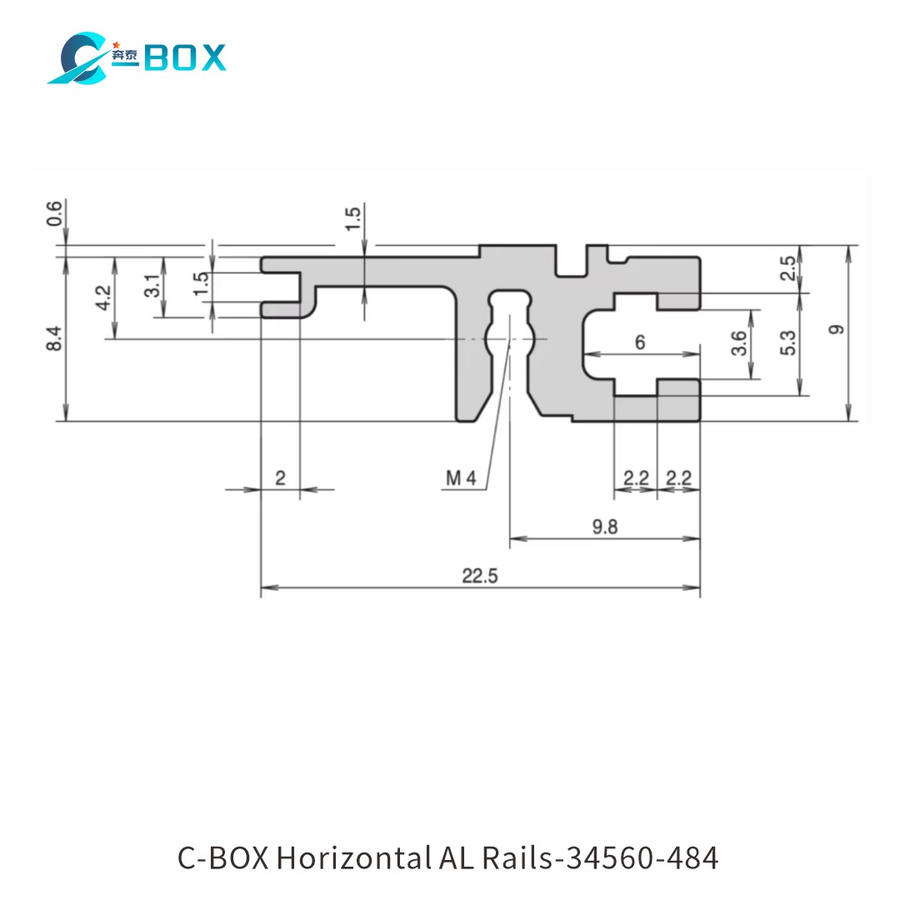

C-BOX Horizontal Rail, Rear, Type L-ST, Light, Standard, 84 HP, catalog number 34560-484

Features

Aluminum construction
Anodized finish
84HP rack width
Usable length 431.8mm
Horizontal Rail
Type Light, ST

Specifications

Catalog Number	34560-484
Rack Width	84HP
Length	431.8mm
Material	Aluminum
Finish	Anodized
Product Type	Horizontal Rail
Type	Light, ST
Compatible product families	EuropacPRO; RatiopacPRO; RatiopacPRO AIR; CompacPRO; PropacPRO
Works With	Subracks; Cases
Package Quantity	1
Gross Weight	0.099kg

Item(s) Delivered

Horizontal rail, type L-ST, Al extrusion, surface anodised, contact surfaces conductive, with HP markings × 1

Related Horizontal Rails

Catalog#: 24560-884

Horizontal Rail Insulation Strip, 84 HP, PC

Catalog#: 34560-084

Horizontal Rail, Front, Type L-OD, Light, Without Lip, 84 HP

Catalog#: 34560-184

Horizontal Rail, Front, Type L-KD, Light, Short Lip, 84 HP

Catalog#: 34560-284

Horizontal Rail Front, Type H-KD, Heavy, Short Lip, 84 HP

Catalog#: 34560-384

Horizontal Rail, Front, Type H-LD, Heavy, Long Lip, for IEEE Application, 84 HP

Catalog#: 34560-584

Horizontal Rail, Rear, Type H-ST, Heavy, Standard, 84 HP

Catalog#: 34560-684

Horizontal Rail, Rear, Type L-VT, Light, 84 HP

Catalog#: 34560-784

Horizontal Rail, Rear, Type H-VT, Heavy, 84 HP

Compatibility

This part is compatible with nVent SCHROFF 34560-484 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 34560-484 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 34560-484 or a compatible custom version? Send an RFQ — engineering response within one business day.

Request a Quote
