EuropacPRO 19" Bracket for Textile Gasket, Type F, 6 U

Name: Horizontal Rail, Rear, Center, Type ST, 84 HP
Brand: C-BOX
SKU: 34561-084

19 inch bracket Kits can be combined with the side panel type F. Available for textile or stainless EMC gaskets.

Catalog#: 24564-497

Request a Quote Download Catalog (PDF)

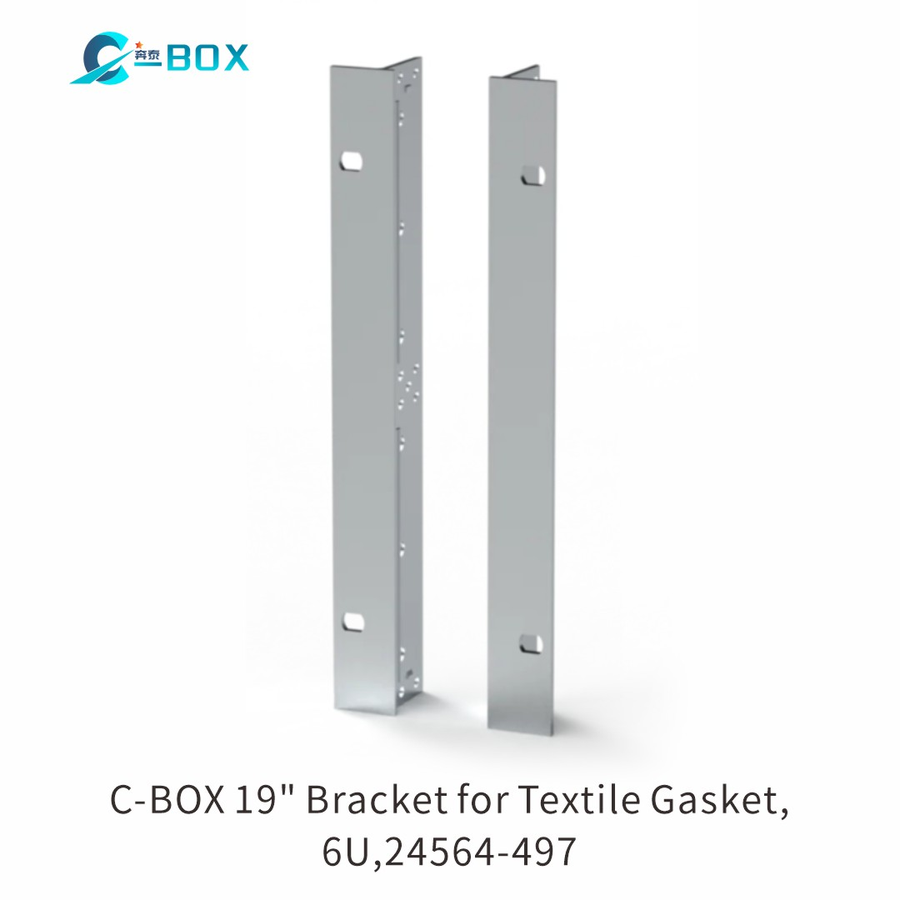

C-BOX EuropacPRO 19" Bracket for Textile Gasket, Type F, 6 U, catalog number 24564-497

Features

Aluminum construction
Anodized finish
6U rack height
Bracket
Type Type F
Works with Subracks

Specifications

Catalog Number	24564-497
Rack Height	6U
Material	Aluminum
Finish	Anodized
Product Type	Bracket
Type	Type F
Compatible product families	EuropacPRO
Works With	Subracks
Package Quantity	2
Gross Weight	0.238kg
Package Unit	Pair
Bracket Type	Without Handle Holes

Item(s) Delivered

Left 19" bracket, Al extrusion, rear side: conductive, front: anodized, without handle holes × 1
Right 19" bracket, Al extrusion, rear side: conductive, front: anodized, without handle holes × 1

Related Fasteners & Accessories

Catalog#: 21100-276

Grub Screw, Slotted, M2.5 x 8 mm, Steel Nickel Plated; 100 pieces

Catalog#: 21100-464

Sleeves for M2.5, Plastic, Grey; 100 pieces

Catalog#: 21100-591

Sleeves for M2.5, Plastic, Black; 100 pieces

Catalog#: 21100-660

Sleeves for M2.5, Brass Nickel Plated; 100 pieces

Catalog#: 21100-662

Sleeves for M2.5, Stainless Steel; 100 pieces

Catalog#: 21100-749

Collar Screw, Cross Recess/Slotted (M2.5x11), Steel Zinc-Plated, Black, 100 pieces

Catalog#: 21100-885

Sleeves for M2.5, Brass, Black, 10 pcs

Catalog#: 21100-886

Sleeves for M2.5, Brass, Black; 100 pieces

Compatibility

This part is compatible with nVent SCHROFF 24564-497 — same interface dimensions, our own tooling, material and finish. A direct replacement for existing 24564-497 installations, no rework required.

Cross-referencing a different part number? Send it to us and we will match the equivalent C-BOX part, with drawing and lead time.

Send us your drawing or part number

Need 24564-497 or a compatible custom version? Send an RFQ — engineering response within one business day.
