sub · Horizontal Rails

Horizontal Rail, Rear, Center, Type ST, 84 HP

Rear centre horizontal rail for 6 U subracks — sub-divides the 6 U assembly area (e.g. 2 × 3 U). Aluminium extrusion, anodised, conductive contact surface. Type ST.

Catalog#: 34561-084

Request a Quote Download Catalog (PDF)

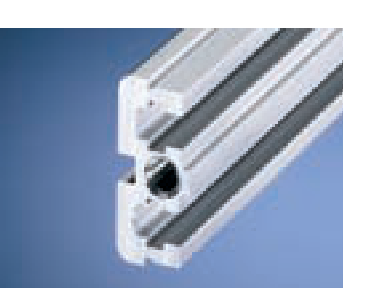

C-BOX Horizontal Rail, Rear, Center, Type ST, 84 HP, catalog number 34561-084

Features

  • Rear centre position for 6 U subracks — sub-divides assembly area (2 × 3 U)
  • Aluminium extrusion, anodised finish, conductive contact surface
  • Supplied without printed HP markings
  • Usable length 431.80 mm at 84 HP
  • For indirect backplane mounting with insulation strip (24560-884)

Specifications

Catalog Number34561-084
Product TypeHorizontal Rail
PositionRear, center
TypeST
Rack Width84 HP
Usable Length431.80 mm
MaterialAluminium extrusion
FinishAnodised, conductive contact surface
MarkingsWithout printed markings
Complies WithIEC 60297-3-100/-101
MOQ100 pcs
